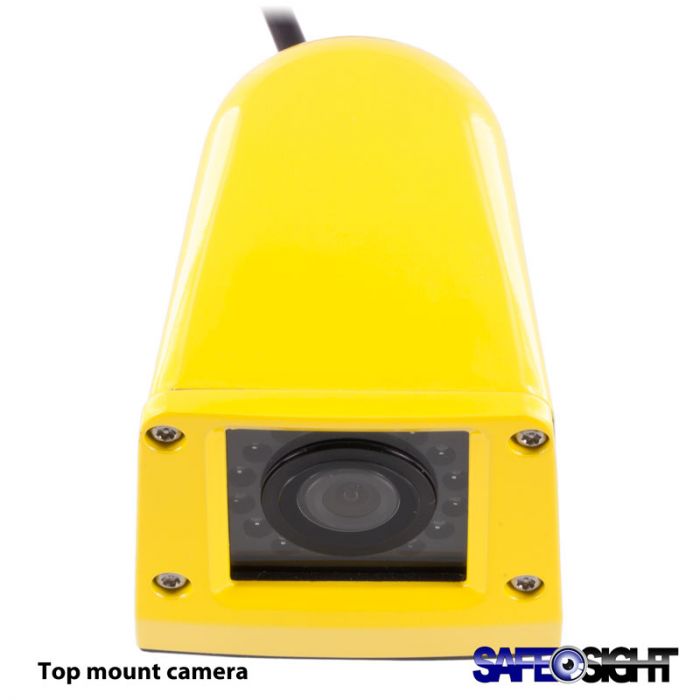

DISCONTINUED - Safesight TOP-SS-5508UR-C Top down view Color CCD Camera with 95 degree Wide Angle Night Vision - Yellow Top down Camera

The Safesight TOP-SS-5508UR side mount camera is designed with large vehicles in mind. This camera comes in several colors including school bus yellow that closely matches all school buses and Caterpillar industrial equipment. Whether you have an RV, trailer, or commercial vehicle large blind spots are possible and incredibly dangerous. Side mount cameras combine with a rear camera provide a full field of view of what is behind you and beside you. The TOP-SS-5508UR provides excellent picture quality due to its 1/3 inch Sony CCD image sensor which offers a whopping 550 TV lines of resolution with a total pixel count of 379,392 pixels! The camera is capable of great detail and has excellent low light capabilities. In completely dark situations the internal IR emitters provide a non visible light that camera can see and provides a daylight like image on screen. Combine this camera with one of our DVR systems and have a full recording in the event of an accident.

Models and applications
• TOP-5607R-B: Left Side Mount looking back or Right side facing forward
• TOP-5607R-A: Right Side Mount looking back or Left side facing forward
• TOP-5607R-C: Top Mount looking down

Compatibility
• Camera is compatible with Safesight Back Up Camera Systems
• Ideal for Heavy Duty and Commercial Vehicles (School buses, Truck, RV, Bus, Van, Tractor, Trailer, Crane, Dirt Wagon, etc)
• Yellow matches well with Caterpillar or John Deere industrial equipment

Features:
• Top down view camera designed for backup
• High Resolution Back Up Camera with Sony DSP
• 1/3" Sony SuperHAD II Color CCD Image Sensor
• 550 TV lines of resolution for excellent picture quality
• Optional mounting bases - 0° / 5° / 15° for angle adjustment
• 12 Automatic IR Infrared LED for Night Vision with 24 - 30 foot range
• IP67 rated for Waterproof, Shockproof and High Temperature Resistance
• High strength aluminum housing that prevents permanent damage to the camera
• Rubber base for vibration isolation
• 4 Pin Waterproof Aircraft grade connector - Safesight 4-Pin to RCA Adapters are sold separately

• Dimensions: 3-3/4" (L) x 2-3/4" (H) x 2-9/16" (D)

• 1/3" Sony SuperHAD II Color CCD Image Sensor
• Effective pixel area: 768 pixels (Horizontal) x 494 pixels (Vertical)
• Total pixel count: 379,392
• Minimum Illumination: 0Lux (LED On)
• Lens: F = 2.8mm
• 95 degree wide angle camera
• IR spectrum: 850nm
• 12 internal IR lED's with 24 - 30 foot illumination range
• Auto gain control
• Auto white balance
• Auto electronic shutter
• Auto back light compensation
