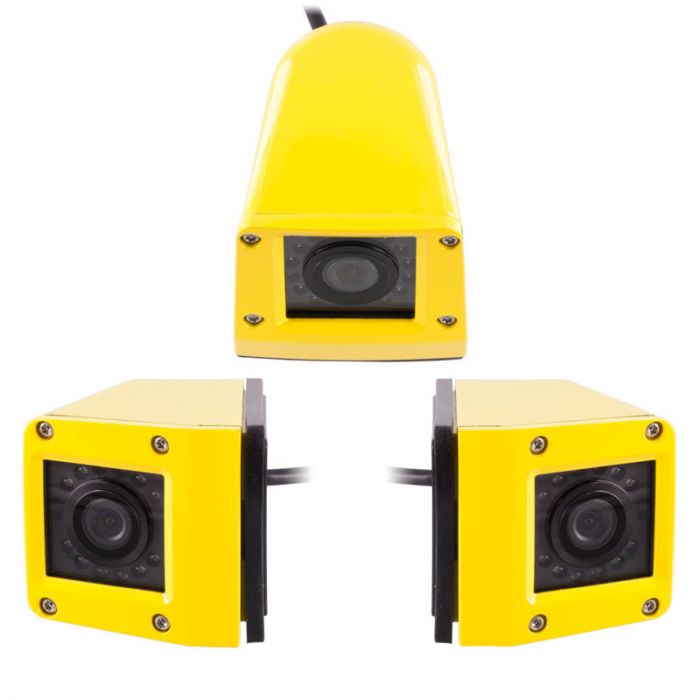

Safesight TOP-SS-5508UR Side Mount Color CCD Camera with 95 degree Wide Angle Night Vision

Safesight TOP-SS-5508UR Side Mount Color CCD Camera with 95 degree Wide Angle Night Vision

Safesight TOP-SS-5508UR Color CCD Vehicle Camera - Selectable cameras

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Safesight TOP-SS-5508UR Product Highlights

  • High Resolution Back Up Camera with Sony DSP
  • 1/3" Sony SuperHAD II Color CCD Image Sensor
  • 550 TV lines of resolution for excellent picture quality
  • Side mount CCD camera
  • IR nightvision
  • Rugged housing for added durability
  • 4-Pin connector
  • Side Mount Application
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


Unit includes: Camera, Camera housing, Mounting hardware, Trim cover, and Instruction manual

The Safesight TOP-SS-5508UR side mount camera is designed with large vehicles in mind. This camera comes in several colors including school bus yellow that closely matches all school buses and Caterpillar industrial equipment. Whether you have an RV, trailer, or commercial vehicle large blind spots are possible and incredibly dangerous. Side mount cameras combine with a rear camera provide a full field of view of what is behind you and beside you. The TOP-SS-5508UR provides excellent picture quality due to its 1/3 inch Sony CCD image sensor which offers a whopping 550 TV lines of resolution with a total pixel count of 379,392 pixels! The camera is capable of great detail and has excellent low light capabilities. In completely dark situations the internal IR emitters provide a non visible light that camera can see and provides a daylight like image on screen. Combine this camera with one of our DVR systems and have a full recording in the event of an accident.

Safesight TOP-SS-5508UR Side mount Back Up Color CCD Camera with 120 degree Wide Angle Night Vision features:

  • Dimensions: 3-3/4" (L) x 2-3/4" (H) x 2-9/16" (D)

Imager specifications:
  • 1/3" Sony SuperHAD II Color CCD Image Sensor
  • Effective pixel area: 768 pixels (Horizontal) x 494 pixels (Vertical)
  • Total pixel count: 379,392
  • Minimum Illumination: 0Lux (LED On)
  • Lens: F = 2.8mm
  • 95 degree wide angle camera
  • IR spectrum: 850nm
  • 12 internal IR lED's with 24 - 30 foot illumination range
  • Auto gain control
  • Auto white balance
  • Auto electronic shutter
  • Auto back light compensation

Technical Specifications

Manufacturer Safesight
Part Number TOP-SS-5508UR
Auto Dimming No
Camera Sensor type CCD
License Plate Camera Type No
Camera diameter No
Viewing Angle 100 degrees
Wireless Transmission Wired connection
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Selectable
Parking grid lines No
Infrared Illumination Yes
Built in Microphone No
Trigger wire No
Auto on/off Yes
Connector Type 4 Pin Connector
Modulation NTSC only
Operation Voltage 12 - 15 Volt DC
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Case included No
Built in Speakers No
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code No
