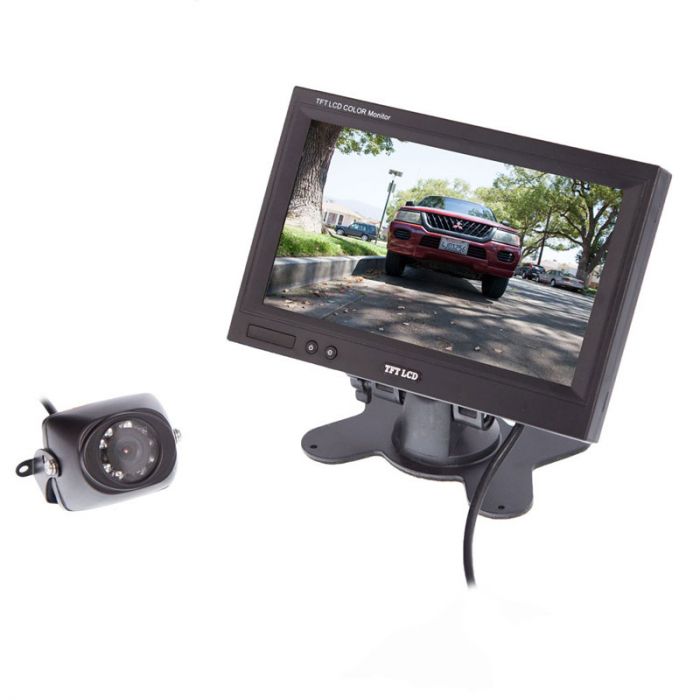

Safesite SC9003 Universal 7 inch LCD Monitor and RV Back Up Color CCD Camera System with 120 degrees Wide Angle Camera
Buy everything you need as a package and SAVE!
Product Reviews
-
Very good back up camera Review by Joe
-
The backup camera is a good quality system that works for our needs perfectly. We own a towing company and we use the cameras to provide vision for hooking up vehicles it allows us to have a clear view of the Under reach while hooking up the vehicle (Posted on April 5, 2013)Installation difficulty Price Value Quality Durability
Product Details
Details
Unit includes: Remote Control and Connectors
Safesite SC9003 Universal 7 inch LCD Monitor and RV Back Up Color CCD Camera System with 120 degrees Wide Angle Camera
Read what is written in the Blog about this item
To see pictures of the Safesight reverse back up camera system click here
Safesite SC9003 Universal 7 inch LCD Monitor and RV Back Up Color CCD Camera System with 120 degrees Wide Angle Camera
- 7 inch TFT LCD High Resolution Monitor
- 2 Video Inputs
- 1/3" Sharp Color CCD Image Sensor
- 120 degrees Wide Angle Camera
- IR Infrared LED Night Vision
- Weatherproof, Shockproof and High Temperature Resistance
- 60ft Camera Cable
- Monitor Wiring Harness
- Auto Reverse Switch
- Headrest Shroud
- Compatible Camera: SC0103
- Universal RCA Connector
- Recommended for Light Duty Trucks, RVs and Delivery or Commercial Vans
- Display format: 16:9
- Power Consumption: 7.5W
- Power Supply: DC 12V
- System: NTSC/PAL
- Pixels: 480x234xRGB
- Blue screen appears when no signal
- Camera Dimensions: 2 1/2"(W) x 1 13/16" (H) x 1 13/16" (D)
- Monitor Dimensions:
- Screen Only: 6 1/16" L x 3 7/16" W
- Outer (without Shroud): 7 1/8 L x 4 6/8" H x 6/8" D
- Outer (with Shroud): 8 2/16" L x 5 13/16" H x 1" D
Read what is written in the Blog about this item
To see pictures of the Safesight reverse back up camera system click here
Related Productsclick check box to add
Check items to add to the cart or select all
Additional Information
| Manufacturer | Safesight |
|---|---|
| Part Number | SC9003 |
| NTSC/PAL | NTSC and PAL |
| Homelink | No |
| Product Options | No |
| Monitor Type | Stand alone monitor |
| Options | No |
| Warranty | 1 Year |
| Color | Black |
| Viewing Angle | 120 degrees |
| Camera diameter | 2.8 mm |
| Case included | No |
| Connector Type | RCA Cable |
| Built in Microphone | No |
| Parking grid lines | No |
| Reverse Image | Yes - Reverse Image |
| Trigger wire | Yes |
| Waterproof ingress protection | IP67 - Dust; Immersion up to 1 m |
| Auto on/off | Yes |
| Audio Video inputs | 2 Video Inputs |
| Back up camera type | Surface Mount Camera |
| Built in Bluetooth | No Bluetooth |
| Built in Speakers | No |
| Camera Sensor type | CCD |
| Cigarette Lighter Cord Included | No |
| Image Flip Function | Yes, reverse image flip |
| Infrared Illumination | Yes |
| LCD back light type | LED |
| LCD Screen Brightness | 300 Nit |
| Mirror Mount Type | No |
| LCD Screen Size | 7 inch - 8 inch |
| Screen Resolution | 480 x 234 |
| Slide track on back | Yes |
| Stand Mount included | Yes, Pedistal stand |
| Wireless Remote Control | Yes |
| Widescreen Display | 16:9 Widescreen Display |
| Wireless Transmission | No, wired connection |
| Operation Voltage | 12 - 15 volt |
| Battery Powered | No |
| UPC Code | No |
Products Questions:
There is no product questions yet.
Installation Video's & Manuals
 |
SC9003 Instruction manual (Size: 12.3 MB) |
| Learn how to install and use the Safesight SC9003 reverse back up camera system |
