Metra TE-TSI Product Highlights

  • Converts any single input monitor or factory navigation screen to a 4 input camera system
  • 4 - Triggered video inputs for automatic viewing mode
  • 4 direct camera button wired remote control
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Buy everything you need as a package and SAVE!

Overview

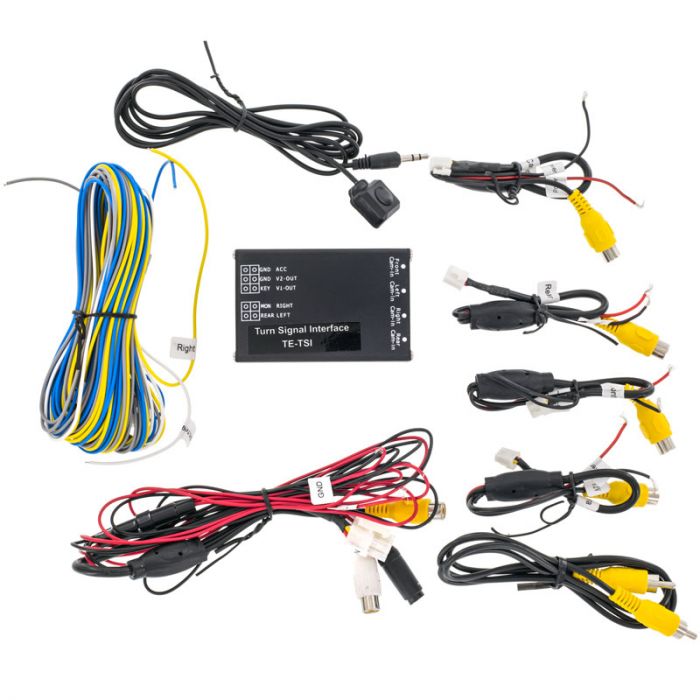

Unit includes: 4-camera switcher, (4) 1 foot Camera and power harnesses, (1) 6 foot power harness, and Instruction manual

Convert any monitor including your existing navigation monitor into a monitor with triggered video inputs. The TE-TSI screen processor is basic processor that allows you to connect 4 cameras, each with a triggered input, to any monitor that accepts a video input. The TE-TSI has camera inputs for four cameras, as part of the harness, it provides power for each camera making the installation as easy as running a cable. The TE-TSI has triggered inputs for each of the four cameras, so anytime you turn with a signal it will trigger the camera in the direction you are turning. The sytem will auto select the reverse camera when the vehicle is placed in reverse preventing a deadly reversing accident. The Safesight TOP-SS-B403Q is the best quad processor available

Safesight TOP-SS-B403Q Quad processor and Switcher with 4 Camera Inputs and Wired remote:

Features:
  • Converts any single input monitor or factory navigation screen to a 4 input camera system
  • 4 - Triggered video inputs for automatic viewing modes (Left, Right, Front and Rear camera triggers)
  • Compact control box makes it easy to add to any vehicle
  • 4 camera inputs for front, rear, left side, and right side cameras
  • Camera cables have power connectors making very easy to connect cameras to a single power source
  • Power connectors for each camera
  • 4 direct camera button wired remote control
  • Operates from 9 ~ 15V
  • Supports a maximum of 4 x 400 mA camera power output

Screen modes:
  • Manual single camera view: Camera can be selected manually with wired remote control for the Front, Left side, Right side, and Rear camera
  • Automatic single camera view: Camera view is triggered automatically for the Rear, Left side, and Right side camera (Requires trigger connection)

Inputs and Outputs
  • 4 - RCA camera inputs
  • 4 - DC power outputs for cameras
  • 1 - Soft touch power button
  • 1 - 4 camera key wired remote control
  • 2 - RCA video output
  • 1 - Monitor reverse trigger output
  • 1 - Right camera trigger (Yellow wire)
  • 1 - Rear camera trigger (Blue wire)
  • 1 - Left camera trigger (Grey wire)
  • 1 - 12 volt power input (Red wire)
  • 1 - Ground connection (Black wire)

Specifications
  • Operating Temperature: -20 Celsius - +70 Celsius
  • Storage Temperature: -30 Celsius - +80 Celsius
  • Power for cameras: max 4 x 400 mA 12V

  • Video input
  • Video inputs: 4 video inputs for cameras:
  • Peak value: 1Vp-p
  • Impedance: 4.7K ohm

  • Video output
  • Video inputs: 2 video output for monitor or DVR
  • Peak value: 1Vp-p
  • Impedance: 75 ohm

Quick links to cameras:
Note:

This item is for the control box only.

Technical Specifications

Manufacturer Metra
Part Number TE-TSI
Warranty 1 Year
UPC Code 086429274901
