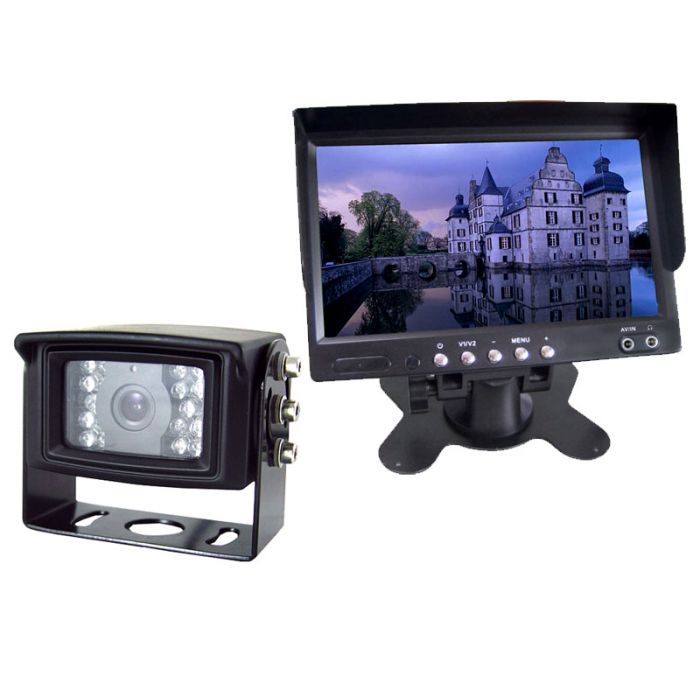

RV Back Up System - Boyo VTM7000 7 inch LCD Monitor with Stand plus Boyo VTB301 Camera w Mic, IR, Night Vision

RV Back Up System - Boyo VTM7000 7 inch LCD Monitor with Stand plus Boyo VTB301 Camera w Mic, IR, Night Vision

RV Back Up System - Boyo  VTM7000 7 inch LCD Monitor with Stand plus Boyo VTB301 Camera w Mic, IR, Night Vision

More Views

Item sku:47512
Boyo

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Boyo VTM7000-VTB301 Product Highlights

  • Commercial Grade 7" Monitor
  • Built in IR for Night Vision
  • Reversed / Non Reversed Camera Ability
  • Built in Mic on Camera for Audio
  • Built in Speaker on Monitor

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 800-363-0096
  • Fast Free Same Day Shipping - Over $99

Overview

RV & Commercial Back Up System Combo Package
- Boyo (Vision Tech) VTM7000 Universal 7 inch TFT LCD Monitor with Stand & Sunshade
- Boyo (Vision Tech) VTB301 Color Bracket Camera with Full Night Vision, IR Infrared and Built In Microphone


Unit includes: Connectors

Boyo (Vision Tech) VTM7000 7 inch TFT LCD Monitor with Stand and Sunshade features:
  • 7" Security TFT Monitor with Stand
  • Easy to Install
  • Remote Controller
  • OSD Menu
  • 2 Video/Audio Inputs
  • Automatic reverse trigger
  • Brightness Control
  • Low power consumption
  • Built In Speaker

  • Model: VTM7000
  • Device: Card Slot
  • Screen size: 7" color TFT
  • Operation Temperature: -4 degrees F ~ 149 degrees F ( -20 degrees C ~ + 65 degrees C )
  • Humidity: 90% (Max)
  • Power Supply: DC 12V
  • Resolution: 1440(W) x 234(H)
  • Video System: PAL/NTSC
  • Input: Dual Video/Audio Input
  • Way of Control: Push button / Remote controller

  • Product Manual


Unit includes: Back up camera, Mounting bracket, Mounting screws, and Instruction manual

Boyo (Vision Tech) VTB301 Color Bracket Camera with Full Night Vision, IR Infrared and Built In Microphone
  • Weatherproof and water resistant
  • High-resolution 1/3" CCD night vision, color camera
  • Compact & lightweight
  • Aluminum die-cast housing
  • Includes an integrated microphone, wide-angle lens
  • 360 degrees adjustable mounting angle
  • Auto-iris lens that automatically adjusts to light conditions

  • Model: VTB301
  • Imager: 1/3" SONY Super HAD CCD
  • Effective Pixels: NTSC : 510(H)X492(V)
  • Horizontal resolution: 420 TV Lines
  • Lens Angle: 120 degrees
  • Min.Illumination: 0.5 Lux at F2.0. and 0.0Lux(with infrared lamps on)
  • Synchronizing system: Internal
  • Scanning system: 2:1 Interlaced
  • Video output: 1Vp-p 75 ohm composite
  • S/N Ratio: More than 48dB
  • Electronic iris: 1/50,1/60-1/100,000 sec.
  • Lens: 2.8mm/ F2.0
  • Gamma correction: r = 0.45
  • White balance: Auto
  • Gain control: Auto
  • Anti-Vibration: 10g
  • Power source: DC12V
  • Operating current: Max. 300mA
  • Operating Temp: -4 degrees F ~ 122 degrees F ( -20 degrees C ~ + 50 degrees C )
  • Storage Temp: -40 degrees F ~ 176 degrees F ( -40 degrees C ~ + 80 degrees C )
  • Humidity: Within 95% RH
  • Weight of Camera: 0.45Kg

  • Product Manual

Technical Specifications

Manufacturer Boyo
Part Number VTM7000-VTB301
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 1440 x 234
Widescreen Display No
LCD Screen Brightness No
LCD back light type CCFL
Auto Dimming No
Trigger wire No
NTSC/PAL NTSC and PAL
Slide track on back No
Image Flip Function No
Built in Speakers Yes
Stand Mount included Yes, Pedistal stand
Auto on/off No
Cigarette Lighter Cord Included No
Audio Video inputs 2 Audio Video Inputs
Wireless Remote Control Yes
Monitor Type No
Mirror Mount Type No
Back up camera type No
Options No
Product Options No
Homelink No
Built in Bluetooth No
Reverse Image No
Camera Sensor type No
Camera diameter No
Viewing Angle No
Parking grid lines No
Built in Microphone No
Infrared Illumination No
Waterproof ingress protection No
Battery Powered No
Case included No
Connector Type No
Wireless Transmission No
Color Black
Operation Voltage No
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code No
