Metra XSVI-6502-NAV 2004 - 2010 Chrysler Data Bus interface with Navigation outputs

$65.99
In stock
SKU
XSVI-6502-NAV

Key Features

  • Provides all connections to factory wiring and makes installing an aftermarket stereo very easy in select 2004 - 2010 Chrylser vehicles
  • Provides accessory output for databus signals (12-volt 10-amp capable output)
  • Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
  • Interface is designed to be used with factory non-amplified systems or when removing the amplified audio system
  • Perfect for use with aftermarket navigation system as interface provides navigation system outputs (parking brake, reverse, mute, V.S.S.) from databus signals
  • Provides steering wheel interface outputs

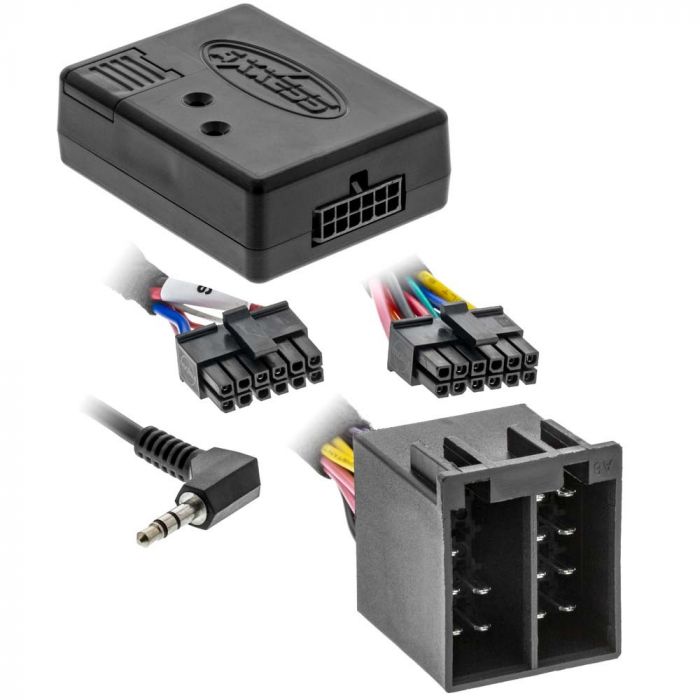

Unit includes: A) Interface, B) Power and speaker harness, and Instruction manual

Metra XSVI-6502-NAV 2004 - 2010 Chrysler Data Bus interface with Navigation outputs

Interface Features:
  • Provides all connections to factory wiring and makes installing an aftermarket stereo very easy in select 2004 - 2010 Chrylser vehicles
  • Provides accessory output for databus signals (12-volt 10-amp capable output)
  • Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
  • Interface is designed to be used with factory non-amplified systems or when removing the amplified audio system
  • Perfect for use with aftermarket navigation system as interface provides navigation system outputs (parking brake, reverse, mute, V.S.S.) from databus signals
  • Includes prewired ASWC Steering wheel interface harness (ASWC Steering wheel interface not included)
  • 4 - High level speaker inputs makes connections for aftermarket car stereo's to factory speakers easy
  • USB firmware updatable
  • Retains balance and fader


Connections:
  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange – Radio illumination (+)
  • Blue – Antenna turn on
  • Light Green – Parking brake
  • Blue with Pink Stripe – VSS (Vehicle speed sensor)
  • Green with Violet Stripe - Reverse trigger (+)
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)


Kit Components:
  • A) XSVI-6502-NAV interface
  • B) Power and speaker harness
  • C) Instruction manual


Tools Required:

Optional parts:

Vehicle Applications:

Chrylser:
  • 2005 - 2007 300
  • 2007 - 2007 Aspen
  • 2006 - 2010 PT Cruiser


Dodge:
  • 2007 - 2008 Caliber
  • 2006 - 2007 Charger
  • 2005 - 2007 Dakota
  • 2004 - 2007 Durango
  • 2005 - 2007 Magnum
  • 2006 - 2008 Ram 1500
  • 2006 - 2009 Ram 2500
  • 2006 - 2009 Ram 3500


Jeep:
  • 2006 - 2007 Commander
  • 2007 - 2008 Compass
  • 2005 - 2007 Grand Cherokee
  • 2007 - 2008 Patriot


Mitsubishi:
  • 2006 - 2007 Raider


More Information
Manufacturer Metra
Part Number XSVI-6502-NAV
Wiring harness function Replace Factory Radio
Warranty 1 Year
UPC Code 086429179848
Return period 30 days
Exchange period 30 days
