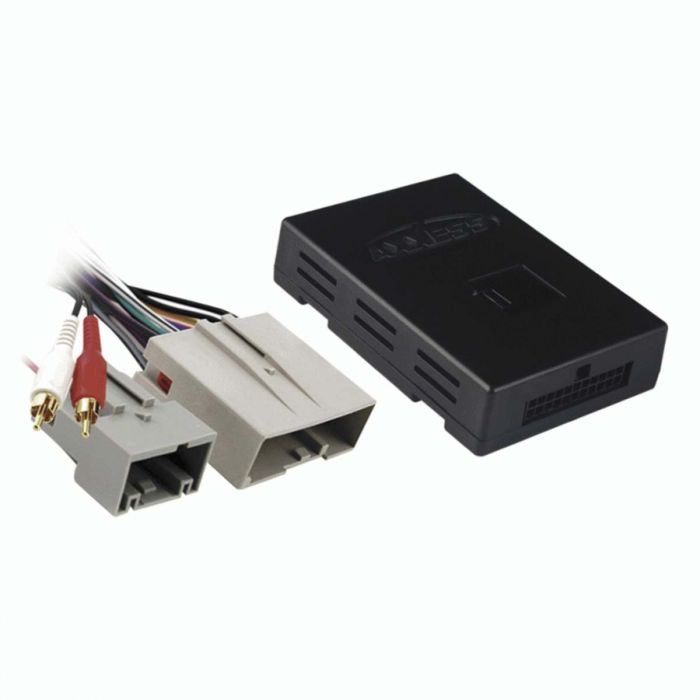

Metra AFSI-02 Ford SYNC Retention Interface with Navigation Output Wires without display

$147.99
In stock
SKU
AFSI-02

Key Features

  • Complete car stereo integration harness for Non-Amplified audio systems
  • Provides 12 volt 10 amp car accessory
  • Provides RAP (Retained Accessory Power)
  • High level speaker inputs for connections to factory speakers
  • Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
  • Retains OEM Bluetooth system
Unit includes: AFSI-02 Interface, AXXESS 16-pin harness with stripped leads, AXXESS 22-pin to Ford 24-pin and 16-pin harness, and Instruction manual

Metra AFSI-02 Ford Sync Retention Interface with Navigation Output Wires without display
    Features
  • Complete car stereo integration harness for Non-Amplified audio systems
  • For standard sound systems with stand-alone subwoofer, use part number 70-5522 along with the AFSI-02
  • Cannot be used with the Sony / THX audio systems use part numbers AX-ADBOX2 and AX-ADFD01
  • Provides RAP (Retained Accessory Power)
  • High level speaker inputs for connections to factory speakers
  • Includes a prewired ASWC-1 connector
  • Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
  • Retains OEM Bluetooth system
  • Adjustable gain control for SYNC
  • 12 volt 10 amp car accessory
  • Allows the user to connect a USB device (via some additional connector)


Connections:
  • Yellow - 12V Constant
  • Red - 12V Accessory
  • Black - Ground
  • Orange with White stripe - Dash Light Dimmer/Illumination
  • Blue with White stripe - Power amplifier turn on (+)
  • Blue - Power antenna turn on (+)
  • Light Green - Parking brake wire(-)
  • Blue with Pink Stripe - VSS (Vehicle speed sensor)
  • Brown - Mute wire (+)
  • Green with Purple Stripe - Reverse wire (+)
  • Green - Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White - Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple - Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray - Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)
  • Red RCA - Right Aux in to aftermarket radio
  • White RCA - Left Aux in to aftermarket radio


Compatible With:

Ford
  • 2009 - 2012 Ford Escape
  • 2008 - 2011 Ford Focus
  • 2008 - 2012 Ford Fusion
  • 2009 - 2012 Ford F-150
  • 2013 - and Up F-150 without 4.2" or 8" LCD screen
  • 2009 - Up Ford Mustang
  • 2010 - 2012 Ford Taurus


Lincoln
  • 2009 - 2011 Lincoln Mariner


More Information
Manufacturer Metra
Part Number AFSI-02
Wiring harness function Replace Factory Radio
Warranty 1 Year
UPC Code 086429006175
Return period 30 days
Exchange period 30 days
