PAC AOEM-GM1416A 2007 and Up Select General Motors add an amplifier interface

$57.99
In stock
SKU
AOEM-GM1416A

Key Features

  • Fits 2007 and Up select General Motors vehicles
  • Interface is designed to be used with factory radios and converts radio outputs to aftermarket amplifier audio connections
  • Provides front and rear low level outputs
  • Provides full range audio output 20-20,000Hz

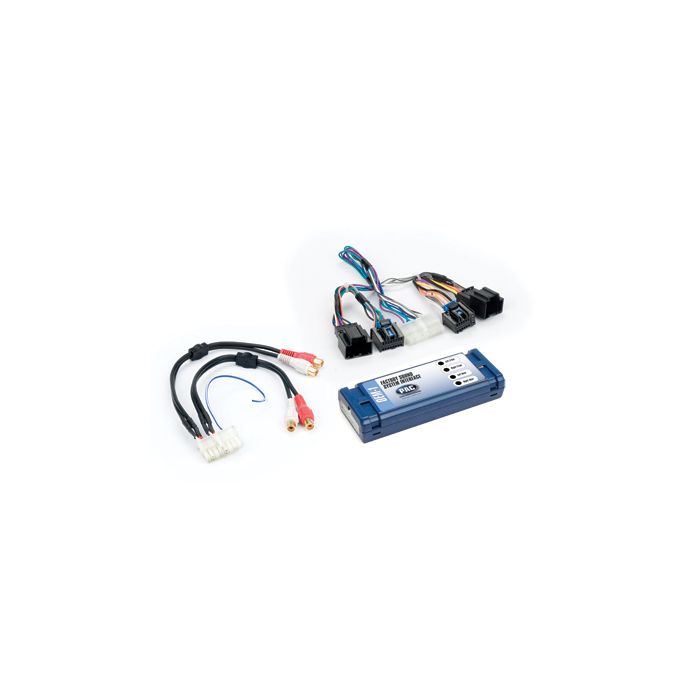

Unit includes: A) AOEM-GM1416A interface, B) RCA harness, C) General Motors harness, and Instruction manual

PAC AOEM-GM1416A 2007 and Up General Motors amplified audio system interface:

Interface Features:
  • Provides line level output for aftermarket amplifiers and makes adding or replacing an amplifier easy
  • Works with non-amplified, audio systems
  • Not compatible with premium factory amplified systems
  • Not compatible with Navigation equipped vehicles
  • Interface is designed to be used with factory systems and converts factory radio outputs to and aftermarket amplifier
  • 4 - High level speaker inputs makes connections for aftermarket amplifier easy
  • Provides front and rear low level outputs
  • Retains balance and fader
  • Provides full range audio output 20-20,000Hz
  • Interface is transformer isolated to prevent damage to factory radio in the event of an issue with aftermarket amplifier
    Connections:
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)
    Kit Components:
  • A) AOEM-GM1416A interface
  • B) RCA harness
  • C) General Motors harness
  • D) Instruction manual
    Vehicle Applications:
    Chevrolet:
  • 2007 - 2008 Cobalt
  • 2006 - 2008 HHR
  • 2008 - 2010 Malibu
    Pontiac:
  • 2007 - 2009 G5
  • 2006 - 2009 Solstice
    Saturn:
  • 2007 - 2008 Aura
  • 2006 - 2007 Ion
  • 2007 - 2009 Sky
  • 2006 - 2007 Vue
More Information
Manufacturer PAC
Part Number AOEM-GM1416A
Wiring harness function Replace Factory Radio
Warranty 1 Year
Vehicle Brand Buick, Cadillac, Chevrolet, GM, GMC, Hummer, Saturn
UPC Code 606523106832
Return period 30 days
Exchange period 30 days
