PAC BCI-CH41v2 Radio Unlock and Factory Screen Interface

$247.99
In stock
SKU
BCICH41

Key Features

  • Use your factory navigation screen to display up to (4) aftermarket cameras
  • Assignable camera priority, automatically switches to backup camera input when in reverse
  • Automatically switches to the side cameras input when the vehicle turn indicator is turned on
  • Interrupts the factory navigation monitor connection
  • Plug-and-play installation for quick installation
  • Allows navigation inputs and back up camera while driving

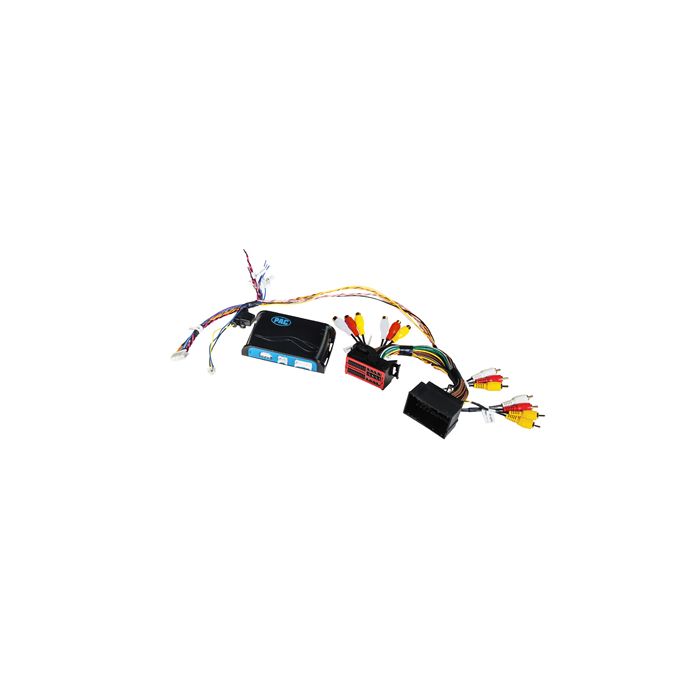

Unit Includes: Interface Control Box, Wiring Harnesses, RCA input harness, and Instruction manual

PAC BCI-CH41v2 Radio Unlock and Factory Screen Interface
    Features:
  • Use your factory navigation screen to display up to (4) aftermarket cameras and 1 Audio Video input (Requires VS41 switcher for more than one camera input)
  • Also allows the connection of (1) composite RCA Audio video source to the factory screen with the included harness
  • Plug-and-play installation for easy installation and removal
  • Compatible with aftermarket or factory back up cameras, front cameras, and side cameras
  • Video in motion; provides use of the factory DVD if equipped or video input while driving off road
  • Camera in drive; provides an image of the aftermarket camera while driving
  • Automatically switches to the backup camera input when the vehicle is shifted into reverse
  • Automatically switches to the side cameras input when the vehicle turn indicator is turned on (setup can be customized for delay, speed sense, or always on)
  • Direct camera selection with steering wheel controls. When parallel parking, you can force the front camera then the rear camera by selecting the reverse gear
  • Assignable camera priority. Reverse camera can be set to have most priority so that when you select a camera manually it is over ridden when vehicle is placed in reverse
  • Navigation in motion - allows control of the navigation system while driving
  • One touch rearview camera operation while in drive
  • Interrupts the factory navigation computer (external DVD ROM drive or hard drive) to front monitor connection
  • Plug-and-play installation allows conversion of radio back to OEM specifications within minutes
  • 1 - RCA auxiliary audio video inputs
  • Instruction Manual - PAC BCI-CH41v2 Radio Unlock and Factory Screen Interface Manual
  • Assembled in the U.S.A.
    Inputs and Outputs
  • 1 - Back up camera Input
  • 1 - Front camera input (Requires VS41 switcher)
  • 1 - Left camera input (Requires VS41 switcher)
  • 1 - Right camera input (Requires VS41 switcher)
  • 1 - Auxiliary Video inputs
  • 1 - Video output (Requires VS41 switcher)
  • 3 - Programmable power outputs
    Vehicle fitment
    Chrysler:
  • 2015 - 2017 Chrysler 2001
  • 2015 - 2017 Chrysler 300
    Dodge:
  • 2015 - 2017 Challenger
  • 2015 - 2017 Charger
  • 2014 - 2017 Durango
    Jeep:
  • 2015 - 2017 Cherokee¹
  • 2014 - 2017 Grand Cherokee
    Ram:
  • 2013 - 2018 1500
  • 2013 - 2018 2500
  • 2013 - 2018 3500
    Notes:

    1. An external VS41 switcher must be used in order to use more than one video source with the BCI-CH41v2

    2. Vehicles without audio SWC, located on the back of the steering wheel, will not support the Navigation Unlock or SWC Swap features

    3. RAM trucks equipped with a manual transmission will not support the forced Reverse Camera or Reverse Output Trigger features

    4. Jeep Cherokee and Chrysler 200 will not support the addition of Reverse Camera input or Rear Media Mode

    5. Vehicles equipped with the 5” screen do not support the addition of Rear Media Mode

More Information
Manufacturer PAC
Part Number BCI-CH41v2
VGA input No - VGA input
HDMI input No
Audio Video inputs 2 Video Inputs
Back up camera input Yes
Auto on/off Yes
Connector Type RCA Cable
USB input No
Warranty 1 Year
Vehicle Brand Chrysler, Dodge, Jeep
Vehicle Model 200, 300, Challenger, Charger, Cherokee, Durango, Grand Cherokee, Ram 1500, Ram 2500, Ram 3500
Return period 30 days
Exchange period 30 days
