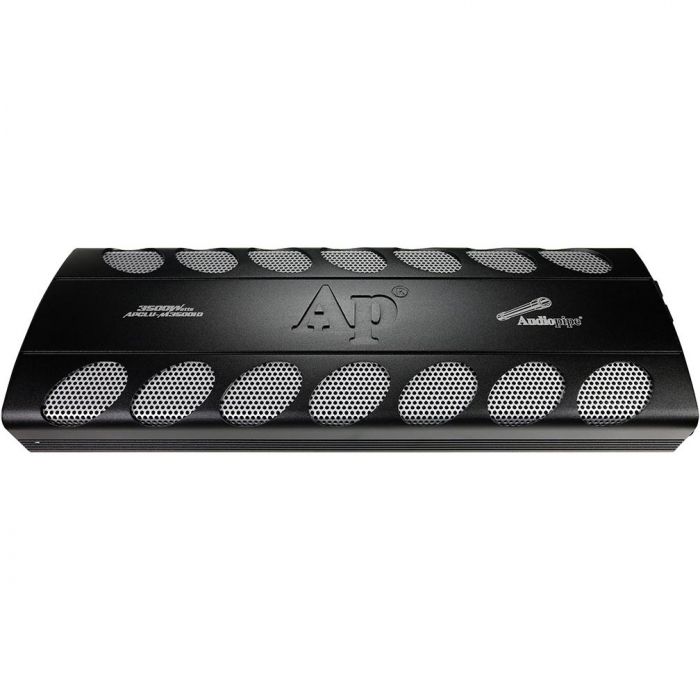

Audiopipe APCLU-M35001D 3000 Watt Class D Mono Amplifier
Expert Knowledge
Talk to a specialist
- Audiopipe APCLU-M35001D 3500 Watt Class D Mono Amplifier
- 3500W RMS @ 1 ohm
- 2048W RMS @ 2 ohm
- 992W RMS @ 4 ohm
- 2 - Channel Low level RCA inputs
- Features:
- 3500 Watts Max Power
- Pulse Width Modulated MOSFET Power supply
- Double side FR-4 PCB with high quality SMD components
- Oversized toroids for excellent current and voltage control
- 3-Way Protection circuit senses internal temperature and automatically lowers input level to prevent heat damage. Short circuit protection prevent damage when speaker leads are shorted. Overload protection prevent damage from low impedance or blown woofers.
- 1-ohm stable
- Variable Low Pass filters allow you to adjust the playback frequencies from 35Hz to 270Hz at 12dB per octave
- 2 channel RCA inputs accepts up to 5 volt input signals
- 0° and 180° phase control
- Variable Bass boost controls: 0 - +9dB
- Variable subsonic filter: 24dB 15Hz - 35Hz
- Nickel plated terminals for all connections
- Tiffany style RCA inputs
- Accepts up to 16 volts DC input for maximum sound output
- Maximum current draw: 226 amps
- Minimum 0 Gauge power wire with 240 amp fuse
- 2,500 watts
- 3500W RMS @ 1 ohm
- 2048W RMS @ 2 ohm
- 992W RMS @ 4 ohm
- Variable low-pass filter: 35 - 270Hz
- Subsonic filter: 15 - 35Hz
- Phase Shift: 0-180 degrees
- Frequency Response: 10 - 270HZ
- Signal-To-Noise Ratio: 80 dB
- 2 - Pair of RCA Outputs
- 1 - Pair of RCA Inputs
- 1 - Pair of RCA Outputs (Strapping)
- 1 - Remote Bass Control Input
- Overall Dimensions: 8" (W) x 17-3/4" (L) x 2-3/4" (H)
- MAX Power Output:
- RMS Power Output:
- Built in Crossover:
- Inputs/Outputs:
- Dimensions:
| Manufacturer | Audiopipe |
|---|---|
| Part Number | APCLU-M35001D |
| Strappable Amplifier | No |
| Cooling Fan | No |
| CEA2006 Compliant | No |
| UPC Code | 784644418307 |
| Return period | 30 days |
| Exchange period | 30 days |
