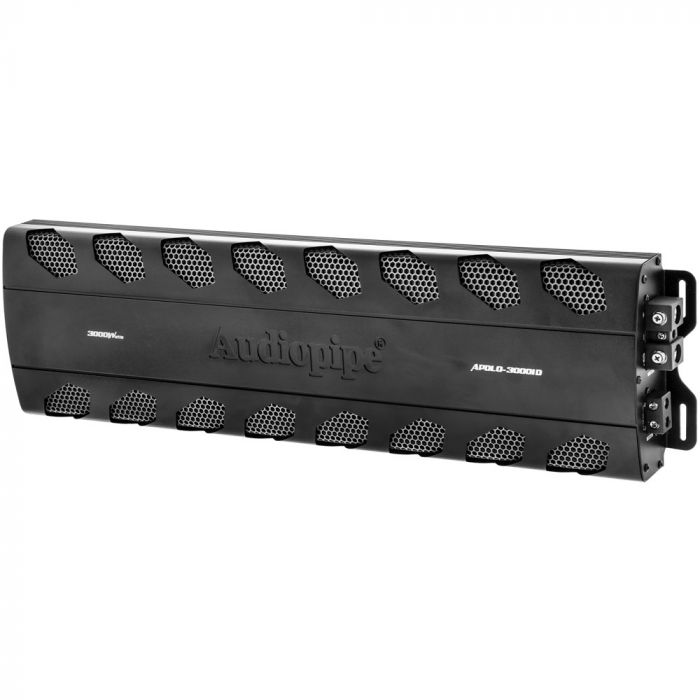

Audiopipe APDLO-3001D 3000 Watt Class D Mono Amplifier
- 3000W RMS Monoblock Class-D Amplifier
- 1 ohms: 3000W x 1 channels
- 2 ohms: 2178W x 1 channels
- 4 ohms: 1444W x 1 channels
- One Pair of Low level RCA inputs
- Features:
- 3000W RMS Monoblock Class-D Amplifier
- Pulse Width Modulated MOSFET Power supply
- Double side FR-4 PCB with high quality SMD components
- Oversized toroids for excellent current and voltage control
- 3-Way Protection: Thermal, Short Circuit, and Overload
- 1-ohm, 2-ohm and 4-ohm stable
- Variable Low Pass filters allow you to adjust the playback frequencies from 40Hz to 180Hz at 12dB per octave
- One Pair of Low level RCA inputs
- RCA inputs accepts up to 5 volt input signals
- Variable Bass boost controls: 0 - +12dB at 30Hz - 80Hz
- Input Level: 0.2V - 6V
- Gold plated terminals for all connections
- Accepts up to 16 volts DC input for maximum sound output
- Input Level: 0.2V - 6V
- Frequency Response: 10Hz - 180Hz
- Subsonic Filter: 10Hz - 50Hz
- Total Harmonic Distortion: <1%
- Signal-to-Noise Ratio: >80dB
- Dimensions: 27-7/8" (W) x 2-1/8" (H) x 7" (D)
- Minimum 0 Gauge power wire with 200 amp fuse
-
RMS Power Rating:
- 1 ohms: 3000 watts x 1 channels
- 2 ohms: 2178 watts x 1 channels
- 4 ohms: 1444 watts x 1 channels
Manufacturer | Audiopipe |
---|---|
Part Number | APDLO-3001D |
Amplifier Topology Class | Class D |
Number of Channels | 1 Channel |
Total RMS Power at 1 ohm | 3,000.00 |
Total RMS Power at 2 ohm | 2,178.00 |
Total RMS Power at 4 ohm | 1,444.00 |
Strappable Amplifier | No |
Strappable Power Output | 6000W |
RCA Pre-amp Audio inputs | 1 Pair |
Speaker level inputs | No |
Gain Control | Yes |
Bass Knob / Remote Gain | Yes |
Built in Crossover | Low-pass, Sub-sonic |
Cooling Fan | No |
Color | Black |
Warranty | 1 Year |
Recommended Power Wire Gauge | 0 Gauge |
Overall Height | 2.20 inches |
Overall Length | 27.90 inches |
Overall Width | 7.00 inches |
CEA2006 Compliant | No |
UPC Code | 784644418246 |
Return period | 30 days |
Exchange period | 30 days |
