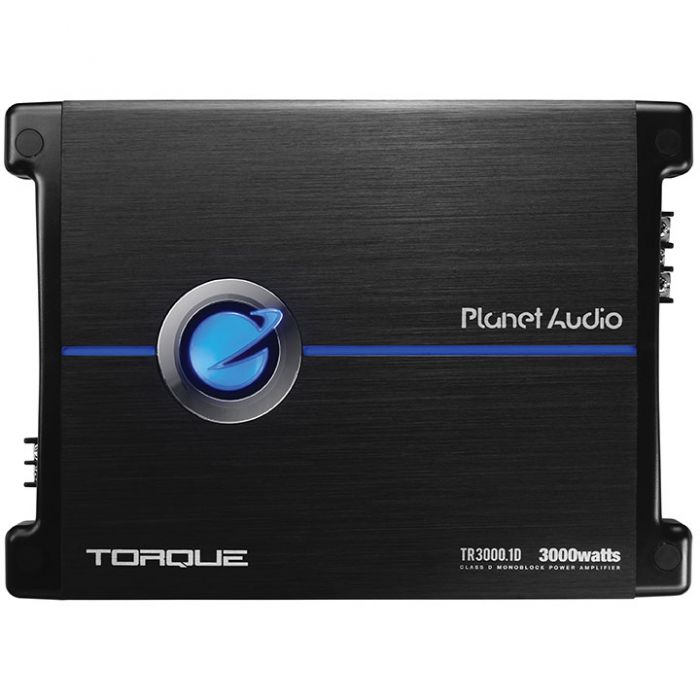

Planet Audio TR3000.1D Torque Series 3000 Watt Class D Monoblock Car Audio Amplifier
Expert Knowledge
Talk to a specialist
- Planet Audio TR3000.1D Torque Series Monoblock Class D Car Amplifier
- 4-Ohms: 563 Watts x 1
- 2-Ohms: 1125 Watts x 1
- 1-Ohms: 2250 Watts x 1
- Blue illuminated torque logo
- Remote subwoofer level control
- Low level inputs
- Variable bass boost
- Strappable amplifier for double the output with less current consumption (Requires another amplifier)
Planet Audio TR3000.1D Torque Series 3000 Watt Class D Monoblock Car Audio Amplifier
Features:
- Torque Series Monoblock Class D Car Amplifier
- Pulse Width Modulated MOSFET Power supply
- Blue illuminated Planet Audio Logo
- Includes subwoofer level controller
- Strappable amplifier for double the output with less current consumption (Requires another amplifier)
- 2 Ohm stable when strapped together (Requires another amplifier)
- 1 Ohm stable
- 18dB Variable Bass Boost:
- Variable Boost: 0-18 dB
- Center Frequency: 45 Hz
- Internal Crossovers:
- Low-pass: 5Hz - 250kHz at 12dB per octave
- Subsonic: 15Hz - 40kHz at 12dB per octave
- Audio inputs:
- 2 Channel RCA inputs accepts up to 8 volt input signals
- Input sensitivity selector switch (100 mV - 2 Volts / 2 Volts - 8 Volts)
- Input accepts RCA low level or High level (Direct speaker connection up to 8 volts)
- Kicker KISL speaker level to RCA connection cable makes speaker level connection very easy
- LED power and protect (red) indicator
- 180° Phase control
- Single speaker terminals
- Black Anodized Aluminum Chassis
- Frequency Response: 20Hz to 250 kHz
- 0 gauge power and ground wiring is required for installation
- Recommended installation kit: 0 Gauge amplifier installation kit
- Recommended installation kit: 4 Gauge amplifier installation kit
- TR3000.1D Instruction manual
- Fuse rating: 60 amps total (2 x 30 amp ATC)
- Single-channel operation
- Nickel-plated RCA level inputs and outputs
- Input Sensitivity High level: 250mV-8V
- Total Power Output: 3000 Watts
- 4-Ohms: 563 Watts x 1
- 2-Ohms: 1125 Watts x 1
- 1-Ohms: 2250 Watts x 1
- 2-Ohms: 4500 Watts x 1 (Strapped Amplifiers)
- 4-Ohms: 750 Watts x 1
- 2-Ohms: 1500 Watts x 1
- 1-Ohms: 3000 Watts x 1
- 2-Ohms: 6000 Watts x 1 (Strapped Amplifiers)
- Overall Dimensions: 2-1/4" (H) x 13-1/8" (L) x 9-5/8" (W)
| Manufacturer | Planet Audio |
|---|---|
| Part Number | TR30001D |
| Amplifier Topology Class | Class D |
| Number of Channels | 1 Channel |
| Total RMS Power at 1 ohm | 3,000.00 |
| Total RMS Power at 2 ohm | 1,500.00 |
| Total RMS Power at 4 ohm | 750.00 |
| Total Peak Power Output | 3,000.00 (Watts) |
| Amplifier Bridging | Not Bridgable |
| Minimum Impedance in Un-Bridged Mode | 1 ohm |
| Strappable Amplifier | No |
| Strappable Power Output | 6000 Watts |
| RCA Pre-amp Audio inputs | 1 Pair |
| RCA Pre-amp Audio outputs | 1 Pair |
| Preamp voltage | 100 mV - 8 V |
| Speaker level inputs | Yes |
| Gain Control | Yes |
| Bass Knob / Remote Gain | Yes |
| Built in Crossover | Low-pass, Sub-sonic |
| Cooling Fan | No |
| Color | Black |
| Warranty | 1 Year |
| Recommended Power Wire Gauge | 0 Gauge |
| CEA2006 Compliant | No |
| UPC Code | 636210106128 |
| Return period | 30 days |
| Exchange period | 30 days |
