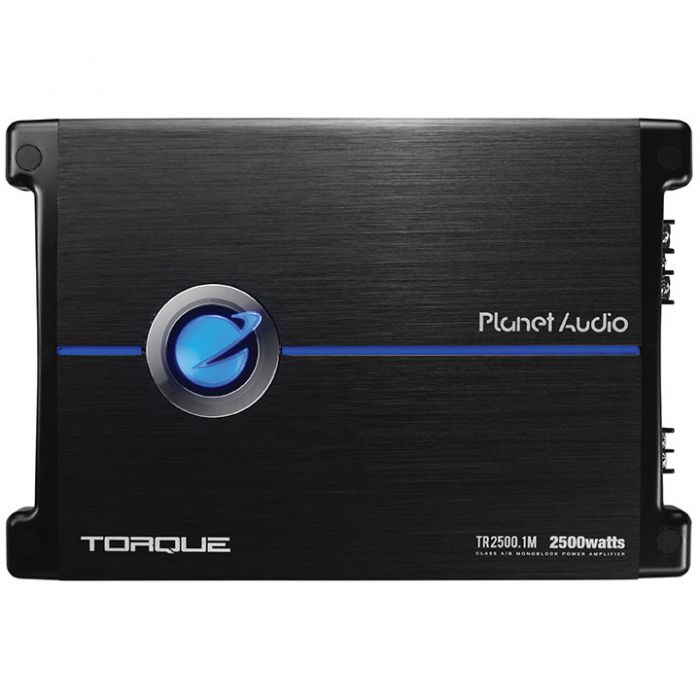

Planet Audio TR2500.1M Torque Series 2500 Watt Class AB Monoblock Car Audio Amplifier

100% of 100
In stock

Key Features

  • Planet Audio TR2500.1M Torque Series Monoblock Class AB Car Amplifier
  • 938 Watts x 1 @ 4-Ohm
  • 1875 Watts x 1 @ 2-Ohm
  • Blue illuminated torque logo
  • Remote subwoofer level control
  • Low level inputs
  • Variable bass boost
Unit includes: Class-AB Power amplifier, Bass control, Mounting hardware, and Instruction manual

Planet Audio TR2500.1M Torque Series 2500 Watt Class AB Monoblock Car Audio Amplifier

  • Torque Series Monoblock Class AB Car Amplifier
  • Pulse Width Modulated MOSFET Power supply
  • Blue illuminated Planet Audio Logo
  • Includes subwoofer level controller
  • 2 Ohm stable
  • 18dB Variable Bass Boost:
    • Variable Boost: 0-18 dB
    • Center Frequency: 45 Hz
  • Internal Crossovers:
    • Low-pass: 50Hz - 250kHz at 12dB per octave
  • Audio inputs:
    • 2 Channel RCA inputs accepts up to 8 volt input signals
    • Input sensitivity selector switch (100 mV - 2 Volts / 2 Volts - 8 Volts)
    • Input accepts RCA low level or High level (Direct speaker connection up to 8 volts)
  • LED power and protect (red) indicator
  • Single speaker terminals
  • Black Anodized Aluminum Chassis
  • Frequency Response: 20Hz to 250 kHz
  • 8 gauge power and ground wiring is required for installation
  • Recommended installation kit: 8 Gauge amplifier installation kit
  • Recommended installation kit: 4 Gauge amplifier installation kit
  • TR1500.1M Instruction manual
  • Fuse rating: 60 amps total (2 x 30 amp ATC)
Inputs and Outputs:
  • Single-channel operation
  • Nickel-plated RCA level inputs and outputs
  • Input Sensitivity High level: 250mV-8V
Max Power Output:
  • Total Power Output: 2500 Watts
  • 4-Ohms: 1500 Watts x 1
  • 2-Ohms: 2500 Watts x 1
RMS Power Output:
  • 4-Ohms: 938 Watts x 1
  • 2-Ohms: 1875 Watts x 1
  • Overall Dimensions: 2-1/4" (H) x 14-1/4" (L) x 9-5/8" (W)
More Information
Manufacturer Planet Audio
Part Number TR25001M
Amplifier Topology Class Class AB
Number of Channels 1 Channel
Total RMS Power at 1 ohm 0.00
Total RMS Power at 2 ohm 1,875.00
Total RMS Power at 4 ohm 938.00
Total Peak Power Output 1,500.00 (Watts)
Amplifier Bridging Not Bridgable
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
RCA Pre-amp Audio inputs 1 Pair
Preamp voltage 150 mV - 11 V
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain Yes
Built in Crossover Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge 4 Gauge
CEA2006 Compliant No
UPC Code 636210106135
Return period 30 days
Exchange period 30 days
