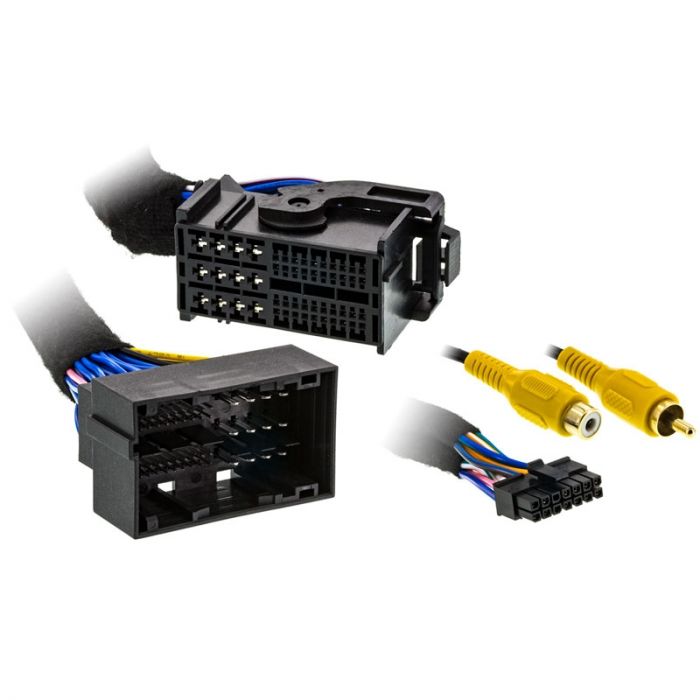

DISCONTINUED - Axxess AX-ADDCAM-CH5 2013 - 2018 Dodge, Jeep, and RAM Truck CAN-BUS interface harness
$41.99
Out of stock
SKU
AX-ADDCAM-CH5
Expert Knowledge
Talk to a specialist
- Fits select 2013 - 2018 Dodge, Jeep, and RAM Truck vehicles with factory screen
- Add (3) additional cameras to a factory back up camera system (Retains factory camera if equipped)
- Add (4) cameras to a factory radio if vehicle doesn't have a factory back up camera
- Automatically switches to proper camera via triggers
- Uses T-harness to interrupt that factory navigation signal
- Plug and Play installation for reversible installation
Unit includes: Factory navigation interface harness, and Instruction manual
Axxess AX-ADDCAM-CH5 2013 - 2018 Dodge, Jeep, and RAM Truck CAN-BUS interface harness
Axxess AX-ADDCAM-CH5 2013 - 2018 Dodge, Jeep, and RAM Truck CAN-BUS interface harness
-
Features
- Fits select 2013 - 2018 Dodge, Jeep, and RAM Truck CAN-BUS vehicles with factory screen
- Must be used in conjunction with the AX-ADDCAM interface (Sold separately)
- AX-ADDCAM interface is a camera switching interface that will provide up to (3) additional camera inputs to the factory radio, while still retaining the factory camera if equipped
- AX-ADDCAM can also be used if the factory system does not originally come equipped with a backup camera, adding up to (4) cameras for a full car camera system
- AX-ADDCAM can be used along with an aftermarket radio. Aftermarket radio must have a input designated for a backup camera allowing you to add multiple cameras
- High quality RGB converter that converts camera signals to RGB signals that are compatible to factory entertainment systems
- Automatically switches to the backup camera input when the vehicle is shifted into reverse via CAN-BUS signals
- Automatically switches to the left or right side camera input when the vehicle indicator is selected via CAN-BUS signals
- Auto (Reverse to Drive) Video Trigger 4, when installing a front camera. The camera will activate automatically once a reverse-then-drive sequence displaying the front camera and disable once 15 MPH is reached
- Manual camera selection
- Onscreen display shows video input selected while switching
- Interrupts the factory screen connection
- Plug-and-play installation allows conversion of radio back to OEM specifications within minutes
- Programmable 12V 5-amp switched output (configured through the Axxess Updater program)
- (4) Programmable camera control wires (configured through the Axxess Updater program)
- Vehicle speed sense input control
- 4 - RCA video inputs
- Made in the U.S.A.
- Plug and Play installation for quick reversible installation
- ABS plastic for maximum reliability
- Factory OEM quality
- No cutting of factory wiring needed
- Axxess AX-ADDCAM-CH5 2013 - 2018 Dodge, Jeep, and RAM Truck CAN-BUS interface harness Instruction manual
- Vehicle Compatibility:
- 2015 - and Up Challenger
- 2015 - and Up Charger
- 2014 - and Up Durango
- 2013 - and Up RAM 1500
- 2013 - and Up RAM 2500
- 2013 - and Up RAM 3500
- 2014 - and Up Cherokee
- 2014 - and Up Grand Cherokee
-
Dodge:
-
Jeep:
| Manufacturer | Axxess |
|---|---|
| Part Number | AX-ADDCAM-CH5 |
| Warranty | 1 Year |
| Length | 6 Inch |
| Cable Type | T-Harness |
| Vehicle Brand | Dodge, Jeep, Ram |
| Vehicle Model | Challenger, Charger, Cherokee, Durango, Grand Cherokee, Ram 1500, Ram 2500, Ram 3500 |
| Return period | 30 days |
| Exchange period | 30 days |
