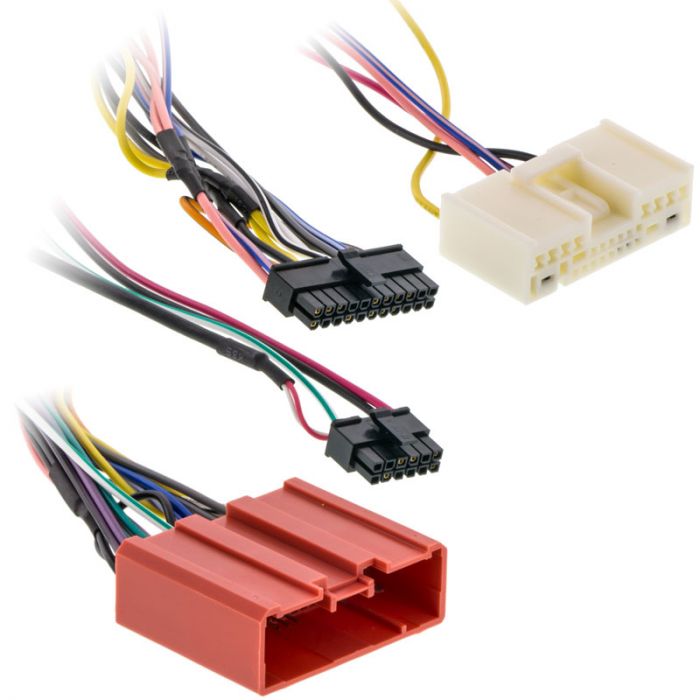

Axxess AX-ADMZ01 Interface Harness for 2007 - and Up Mazda Vehicles

$17.99
In stock
SKU
AX-ADMZ01

Key Features

  • Allows the user to install the AX-ADBOX1 or AX-ADBOX2 interface box
  • Provides RAP (Retained Accessory Power), navigation outputs like reverse, parking brake, VSS, etc., and high level speaker input
  • Includes a prewired ASWC-1 connector
  • 12 volt 10 amp car accessory output
Unit includes: AX-ADMZ01 Interface Wiring Harness and Instruction manual

Axxess AX-ADMZ01 Interface Harness for 2007 - and Up Mazda Vehicles
    Features:
  • Allows the user to install the AX-ADBOX1 or AX-ADBOX2 interface box
  • Must be used in conjunction with the AX-ADBOX1 or the AX-BOX2 Factory audio system interface(Sold separately)
  • Provides RAP (Retained Accessory Power), navigation outputs like reverse, parking brake, VSS, etc., and high level speaker input
  • Includes a prewired ASWC-1 connector
  • 12 volt 10 amp car accessory output
  • Ideal for car stereos without any amplified system or when one is replacing the installed amplified system
  • Allows the user to connect a USB device (via some additional connector)
    Connections:
  • Yellow - 12V Constant
  • Red - 12V Accessory
  • Black - Ground
  • Blue - Power Antenna
  • Orange - Dash Light Dimmer/Illumination
  • Green - Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White - Left Front Speaker (+)
  • White with Black Stripe - Left Front Speaker (-)
  • Purple - Right Rear Speaker (+)
  • Purple with Black Stripe - Right Rear Speaker (-)
  • Gray - Right Front Speaker (+)
  • Gray with Black Stripe - Right Front Speaker (-)
Compatible With:

Lexus
  • 2007 and Up CX-7
  • 2007 and Up CX-9
More Information
Manufacturer Axxess
Part Number AX-ADMZ01
Warranty 1 Year
Vehicle Year 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
Vehicle Brand Mazda
Vehicle Model CX-7, CX-9
UPC Code 086429275656
Return period 30 days
Exchange period 30 days
Write Your Own Review
You're reviewing:Axxess AX-ADMZ01 Interface Harness for 2007 - and Up Mazda Vehicles
Your Rating
Customer Questions
What do the wire colors of a car stereo mean?

Car stereo wiring is color coded for convenience and simplicity. Each wire color has a specific meaning, we show you what they are.
