Axxess AX-ADGM01 Wire Harness for 2006 - and Up General Motors Vehicles

Axxess AX-ADGM01 Wire Harness for 2006 - and Up General Motors Vehicles

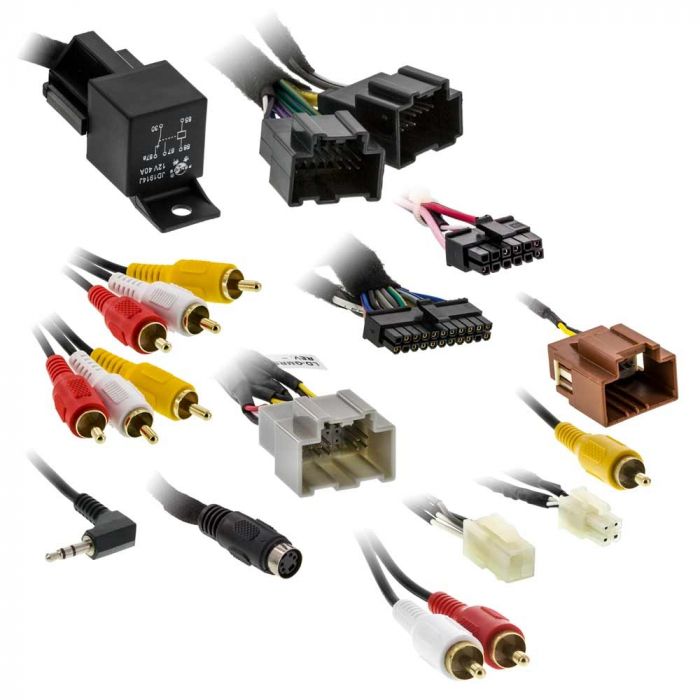

Axxess AX-ADGM01 Wire Harness for 2006 - and Up General Motors Vehicles - Main

More Views

Axxess
Free Shipping on orders $50+

Overall Rating 0 (Based on 0 reviews)

Axxess AX-ADGM01 Product Highlights

  • AX-ADXSVI Interface Wiring Harness for 2006 - and Up General Motors Vehicles
  • Must be used with AX-ADBOX1 or AX-ADBOX2
  • Provides RAP (Retained Accessory Power), navigation outputs like reverse, parking brake, VSS, etc., and speaker connections
  • Provides connector for steering wheel controls (requires ASWC-1)
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
Save money on all Metra installation hardware when you purchase more than one installation piece of hardware!

Overview

Unit includes: AX-ADXSVI Interface Box Wiring Harness and Instruction manual

Axxess AX-ADGM01 Wire Harness for 2006 - and Up General Motors Vehicles
    Features:
  • Provides all connections to factory audio system and makes installing an aftermarket stereo very easy in select 2006 - and Up General Motors vehicles
  • Provides accessory output from databus signals (12-volt 10-amp capable output)
  • Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
  • Interface is designed to be used with Analog amplified, Digital amplified and non-amplified audio systems or when removing factory amplifier, requires correct control box
  • Provides navigation system outputs (parking brake, reverse, mute, V.S.S.) from databus signals for aftermarket navigation systems
  • Includes prewired ASWC Steering wheel interface harness (ASWC Steering wheel interface not included)
  • USB firmware updateble
  • Must be used with AX-ADBOX1 or AX-ADBOX2
  • Axxess AX-ADGM01 Wire Harness Instruction manual
    Buick
  • 2007 - 2017 Enclave
  • 2006 - 2011 Lucerne
    Cadillac
  • 2007 - 2011 Escalade (See Note 3)
  • 2006 - 2011 DTS (See Note 3)
  • 2007 - 2009 SRX (See Note 3)
    Chevrolet
  • 2007 - 2013 Avalanche (See Notes 1 & 5)
  • 2012 - 2015 Captiva Sport
  • 2007 - 2009 Equinox
  • 2008 - Up Express (See Note 4)
  • 2006 - 2013 Impala
  • 2014 - 2016 Impala Limited
  • 2006 - 2007 Monte Carlo
  • 2007 - 2013 Silverado (New Body) (See Notes 1 & 5)
  • 2014 - 2014 Silverado 2500/3500 (See Notes 1 & 5)
  • 2007 - 2014 Suburban (See Notes 1 - 2 & 5)
  • 2007 - 2014 Tahoe (See Notes 2 & 5)
  • 2009 - 2017 Traverse
    GMC
  • 2007 - 2016 Acadia
  • 2017 - 2017 Acadia Limited
  • 2008 - Up Savanna (See Note 4)
  • 2007 - 2013 Sierra (See Notes 1 & 5)
  • 2014 Sierra 2500/3500 (See Notes 1 & 5)
  • 2007 - 2014 Yukon/Yukon XL (See Notes 2 & 5)
    Hummer
  • 2008 - 2009 H2 (See Note 3)
    Pontiac
  • 2007 - 2009 Torrent
    Saturn
  • 2007 - 2009 Outlook
  • 2008 - 2010 Vue
    Suzuki
  • 2007 - 2009 XL-7
    Notes:
  • (Note 1) These vehicles have a digital amp option. Please reference the Service Parts Identification sticker located in the glove box for the RPO code Y91. If Y91 is present then the vehicle is equipped with a digital amplifier.
  • (Note 2) These vehicles have a digital amp option. Please reference the Service Parts Identification sticker located in the glove box for the RPO code STZ or Y91. If STZ or Y91 is present then the vehicle is equipped with a digital amplifier.
  • (Note 3) These vehicles are standard for a digital amplifier.
  • (Note 4) For 2013-2015 if the vehicle is equipped with OE navigation use the GMOS-LAN-08 if non-amped or the GMOS-LAN-07 if amped.
  • (Note 5) In 2012-up if the vehicle is equipped with OE navigation use the GMOS-LAN-08 if non-amped or the GMOS-LAN-07 if amped.

Technical Specifications

Manufacturer Axxess
Part Number AX-ADGM01
Warranty No
Chassis Size No
Color No
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code 086429275588
