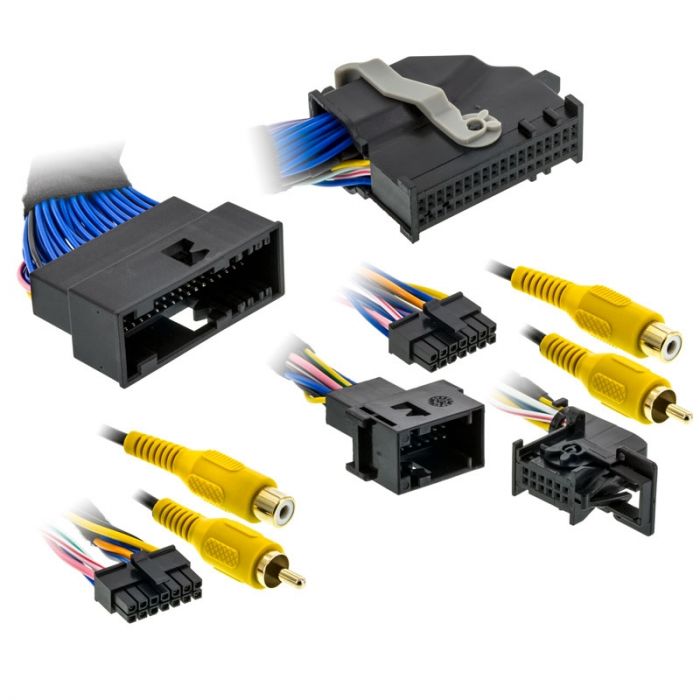

Axxess AX-ADDCAM-FD1 2011 - 2017 Ford CAN-BUS interface harness

$47.99
In stock
SKU
AX-ADDCAM-FD1

Key Features

  • Fits select 2011 - 2017 Ford vehicles with factory screen
  • Add (3) additional cameras to a factory back up camera system (Retains factory camera if equipped)
  • Add (4) cameras to a factory radio if vehicle doesn't have a factory back up camera
  • Automatically switches to proper camera via triggers
  • Uses T-harness to interrupt that factory navigation signal
  • Plug and Play installation for reversible installation
Unit includes: Factory navigation interface harness, and Instruction manual

Axxess AX-ADDCAM-FD1 2011 - 2017 Ford CAN-BUS interface harness

    Features
  • Fits select 2011 - 2017 Ford CAN-BUS vehicles with factory screen
  • Must be used in conjunction with the AX-ADDCAM interface (Sold separately)
  • AX-ADDCAM interface is a camera switching interface that will provide up to (3) additional camera inputs to the factory radio, while still retaining the factory camera if equipped
  • AX-ADDCAM can also be used if the factory system does not originally come equipped with a backup camera, adding up to (4) cameras for a full car camera system
  • AX-ADDCAM can be used along with an aftermarket radio. Aftermarket radio must have a input designated for a backup camera allowing you to add multiple cameras
  • High quality RGB converter that converts camera signals to RGB signals that are compatible to factory entertainment systems
  • Automatically switches to the backup camera input when the vehicle is shifted into reverse via CAN-BUS signals
  • Automatically switches to the left or right side camera input when the vehicle indicator is selected via CAN-BUS signals
  • Auto (Reverse to Drive) Video Trigger 4, when installing a front camera. The camera will activate automatically once a reverse-then-drive sequence displaying the front camera and disable once 15 MPH is reached
  • Manual camera selection
  • Onscreen display shows video input selected while switching
  • Interrupts the factory screen connection
  • Plug-and-play installation allows conversion of radio back to OEM specifications within minutes
  • Programmable 12V 5-amp switched output (configured through the Axxess Updater program)
  • (4) Programmable camera control wires (configured through the Axxess Updater program)
  • Vehicle speed sense input control
  • 4 - RCA video inputs
  • Made in the U.S.A.
  • Plug and Play installation for quick reversible installation
  • ABS plastic for maximum reliability
  • Factory OEM quality
  • No cutting of factory wiring needed
  • Axxess AX-ADDCAM-FD1 2011 - 2017 Ford CAN-BUS interface harness Instruction manual
    Vehicle Compatibility:
      Ford:
    • 2011 - and Up Edge
    • 2013 - and Up F-150
    • 2013 - and Up F-250
    • 2012 - and Up Focus
    • 2013 - and Up Fusion
    • 2015 - and Up Mustang
    • 2014 - and Up Transit
    • 2015 - and Up Transit Connect
More Information
Manufacturer Axxess
Part Number AX-ADDCAM-FD1
Warranty 1 Year
Length 6 Inch
Cable Type T-Harness
Vehicle Brand Ford
Vehicle Model Edge, F-150, F-250, Focus, Fusion, Mustang, Transit, Transit Connect
Return period 30 days
Exchange period 30 days
