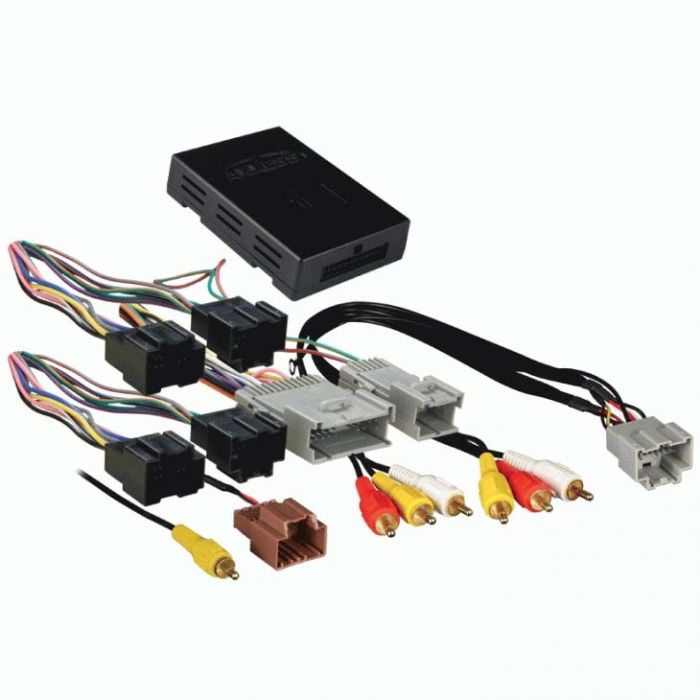

Axxess AX-ADGM100 2000 - and Up GM RSE / Onstar / Bose Radio Replacement Interface
- Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
- Covers Class ll, LAN 29 and LAN 11 vehicles
- Provides accessory (12-volt 10-amp)
- Retains R.A.P. (retained accessory power)
- Used in amplified or non amplified systems
- Retains chimes
- Retains OnStar/OE Bluetooth
- Retains factory Back-up camera and RSE (rear seat entertainment)
Axxess AX-ADGM100 2000 - and Up GM RSE / Onstar / Bose Radio Replacement Interface
The AX-ADGM100 interface is designed to allow you to install an aftermarket radio into your 2000 - and up General Motors vehicle and have it interface with the OEM Data-Bus. The AX-ADGM100 is designed to auto detect what type of vehicle it is installed and will automatically configure itself for operation. The plug-and-play harnesses easily plugs into your vehicles factory radio connectors. The interface retains full functionality of the OEM systems as well as all safety and warning chimes.
The AX-ADGM100 also retains the R.A.P or retained accessory power convenience feature, allowing you to use the radio after the vehicle is turned off as long as you don't open the doors. This interface has the capability of using the steering wheel controls on your new radio and easily up-datable with a USB connection. The AX-ADGM100 now has the required outputs for the installation of a navigation radio.
Features:
- Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
- Auto detect interface for easy configuration
- Covers Class ll, LAN 29 and LAN 11 vehicles
- Provides accessory (12-volt 10-amp)
- Retains R.A.P. (retained accessory power)
- Used in amplified or non amplified systems
- Retains chimes
- Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
- ASWC-1 harness included (ASWC-1 not included)
- Retains OnStar/OE Bluetooth
- Adjustable volume for chimes and OnStar
- High level speaker input
- Micro “B” USB updatable
- Retains balance and fade
- Retains factory Back-up camera and RSE (rear seat entertainment)
- Retains OE Satellite (must have OE steering wheel controls)
- Axxess AX-ADGM100 2000 - and Up GM RSE / Onstar / Bose Radio Replacement Interface Instruction manual and fitment guide
-
Connections:
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange/White – Dash Light Dimmer/Illumination
- Blue/White – Amplifier turn on
- White RSE/SYNC/SAT RCA - Left Auxiliary input
- Red RSE/SYNC/SAT RCA - Right Auxiliary input
- White RCA - Subwoofer connection
- Red RCA - Center channel
- Light green – (-) Parking brake lead
- Blue/Pink – VSS (Vehicle speed sensor)
- Green/Purple – (+) Reverse trigger
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
-
Compatible With:
- 2008 - and Up Enclave
- 2004 - 2005 Century
- 2005 - 2009 LaCrosse
- 2006 - 2011 Lucerne
- 2004 - 2007 Rainier
- 2004 - 2004 Regal
- 2002 - 2007 Rendezvous
- 2005 - 2008 Terraza
- Cadillac
- 2003 - 2011 DTS
- 2003 - 2011 Escalade
- 2003 - 2011 Escalade EXT
- 2003 - 2011 Escalade ESV
- 2007 - 2009 SRX
- Chevrolet
- 2003 - 2006 Avalanche
- 2012 - and Up Captiva Sport
- 2000 - 2005 Cavalier
- 2007 - 2010 Cobalt
- 2004 - 2012 Colorado
- 2005 - 2013 Corvette
- 2007 - 2009 Equinox
- 2003 - and Up Express
- 2006 - 2013 Impala
- 2006 - 2011 HHR
- 2000 - 2013 Impala
- 2014 - 2014 Impala Limited
- 2003 - 2009 Kodiak
- 2001 - 2012 Malibu
- 2004 - 2005 Malibu Classic
- 2000 - 2007 Monte Carlo
- 2003 - 2013 Silverado
- 2014 - 2014 Silverado 2500 / 3500 (Non-factory navigation models only)
- 2003 - 2006 SSR
- 2003 - 2014 Suburban
- 2003 - 2014 Tahoe
- 2002 - 2009 Trailblazer
- 2009 - and Up Traverse
- 2005 - 2008 Uplander
- GMC
- 2007 - and Up Acadia
- 2004 - 2012 Canyon
- 2002 - 2009 Envoy
- 2003 - and Up Savana
- 2003 - 2013 Sierra
- 2014 - 2014 Sierra 2500 / 3500
- 2005 - 2014 TopKick
- 2003 - 2014 Yukon / Yukon XL
- Hummer
- 2003 - 2009 H2
- 2006 - 2010 H3
- Isuzu
- 2003 - 2008 Ascender
- 2003 - 2008 H-Series
- 2005 - 2009 HVR
- 2006 - 2008 I-Sseries
- Oldsmobile
- 2001 - 2004 Alero
- 2002 - 2004 Bravada
- Pontiac
- 2001 - 2005 Aztec
- 2007 - 2009 G5
- 2009 - 2009 G6 (5th digit of VIN must be a J, K, or L)
- 2010 - 2010 G6
- 2001 - 2005 Grand Am
- 2004 - 2008 Grand Prix
- 2005 - 2006 Montana SV6
- 2006 - 2009 Solstice
- 2000 - 2005 Sunfire
- 2007 - 2009 Torrent
- Saab
- 2005 - 2009 9-7x
- Saturn
- 2007 - 2009 Aura
- 2007 - 2010 Outlook
- 2006 - 2009 Sky
- 2005 - 2009 Relay
- 2008 - 2010 Vue
- Suzuki
- 2007 - 2009 XL-7
Manufacturer | Axxess |
---|---|
Part Number | AX-ADGM100 |
Integration Module | Radio Replacement |
Wiring harness function | Replace Factory Radio |
Steering Wheel Control | Yes, requires external module |
RCA Pre-amp Audio inputs | 2 Pairs (Front, Rear) |
Speaker level inputs | Yes |
Warranty | 1 Year |
Vehicle Brand | Buick, Cadillac, Chevrolet, GM, GMC, Hummer, Isuzu, Oldsmobile, Pontiac, Saab, Saturn, Suzuki |
UPC Code | 086429280490 |
Return period | 30 days |
Exchange period | 30 days |
