Metra AXDI-GM3 Economy Data Bus interface with Chime Retention Speaker for 1996 - 2005 Cadillac vehicles
- Provides accessory output for databus signals (12-volt 3-amp capable output)
- Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
- Interface is designed to be used with factory non-amplified systems or when removing the amplified audio system
- Used in models without OnStar or when not retaining OnStar
- Retains all factory warning chimes with built in speaker
- Provides all connections to factory wiring and makes installing an aftermarket stereo very easy
- For select Cadillac vehicles
The Axxess AXDI-GM3 is an economy data bus interface designed for select 1996-2005 Cadillac vehicles. This essential interface allows for seamless integration of aftermarket radio while retaining factory chime and data functions. The interface includes a built-in chime retention speaker, ensuring that you maintain all original alerts and notifications. With easy color coded wires it allows for easy installation and is perfect for anyone looking to upgrade their sound system without sacrificing OEM functionality.
Axxess AXDI-GM3 Economy Data Bus interface with Chime Retention Speaker for 1996 - 2005 Cadillac vehicles-
Interface Features:
- Provides accessory output for databus signals (12-volt 3-amp capable output)
- Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
- Interface is designed to be used with factory non-amplified systems or when removing the amplified audio system
- Used in models without OnStar or when not retaining OnStar
- Retains all factory warning chimes with built in speaker
- Provides all connections to factory wiring and makes installing an aftermarket stereo very easy
- 4 - High level speaker inputs makes connections for aftermarket car stereo's to factory speakers easy
- USB firmware updatable
- Retains balance and fader
- Instruction Manual - Metra AXDI-GM3 Economy Data Bus interface with Chime Retention Speaker for 1996 - 2005 Cadillac vehicles
-
Connections:
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange with White Stripe – Not used
- Blue – Antenna turn on
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
-

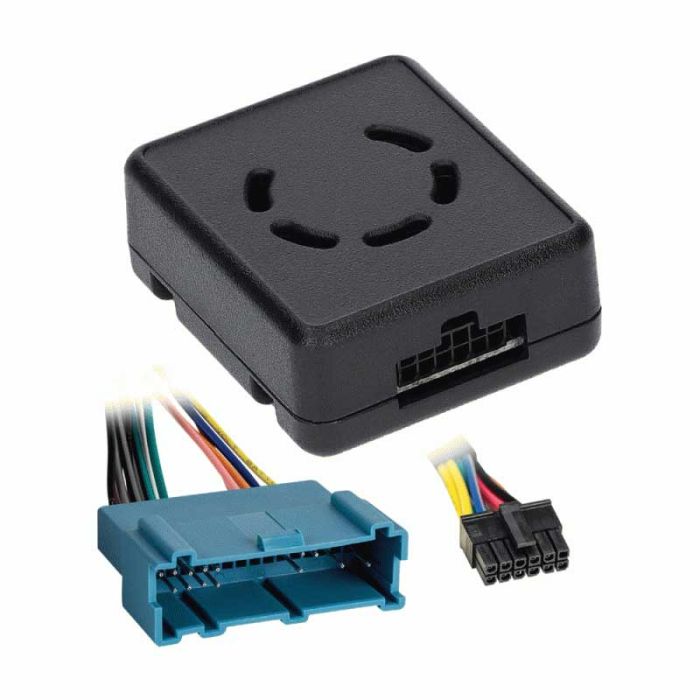

Kit Components:
- A) AXDI-GM3 interface
- B) 10-pin to 30 pin harness
- C) Instruction manual
-
Tools Required:
- Panel Removal tool
- Cutting tool
- Crimping tool
- Electrical tape
- Crimp connectors
-
Optional parts:
- Wiring and Antenna Connections (Sold Separately)
- Metra 40-GM10 GM Antenna adapter
- Metra ASWC-1 Steering wheel control
-
Vehicle Applications:
-
Chevrolet:
- 1997 - 2001 Catera
- 1996 - 1999 Deville
- 2000 - 2005 Deville (Must remove factory amplifier
- 1996 - 2002 Eldorado
- 1996 - 1997 Seville
- 1998 - 2004 Seville (Must remove factory amplifier
Manufacturer | Axxess |
---|---|
Part Number | AXDI-GM3 |
Integration Module | Radio Replacement |
Wiring harness function | Replace Factory Radio |
Steering Wheel Control | Yes, Built in control |
RCA Pre-amp Audio inputs | 2 Pairs (Front, Rear) |
Speaker level inputs | Yes |
Warranty | 1 Year |
Vehicle Brand | Cadillac |
Vehicle Model | Deville, Catera, Eldorado, Seville |
Return period | 30 days |
Exchange period | 30 days |
