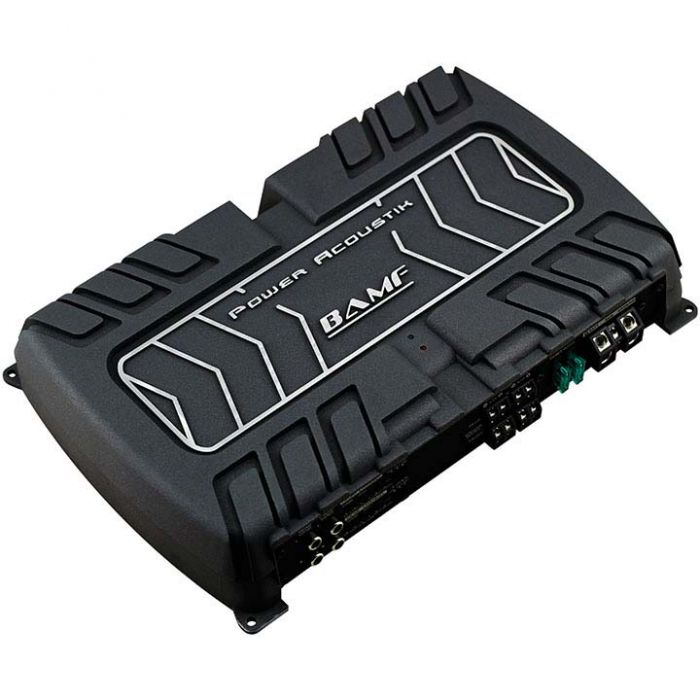

Power Acoustik BAMF4-1200 4-Channel Class-A/B Car Amplifier
- BAMF Series Class AB 4-Channel amplifier
- 4 / 3 / 2 Channel modes of operation
- Full range operation so amplifier can be used for high or subwoofers
- Pulse Width Modulated MOSFET power supply with Audiophile Grade IRTM Transistors
- Variable low-pass crossover
- Variable high-pass crossover
- 1200 watts maximum output
-
Features:
- BAMF Series Class AB 4-Channel amplifier
- Pulse Width Modulated MOSFET power supply with Audiophile Grade IRTM Transistors for excellent sound quality
- Full range operation so amplifier can be used for high or subwoofers
- 4 / 3 / 2 Channel modes of operation
- Die-Cast Aluminum Alloy Heatsink for Optimum Heat Dissipation and custom look
- 2 Ohm stable in stereo mode and 4 ohm stable in mono-bridged mode
- 3-way protection circuitry (Thermal, Overload, and Speaker short protection)
- Multi-color LED (green) for power and (red) for protect
- Nickel plated low level inputs and speaker level inputs
- Variable low-pass crossover (Channels 1/2 and Channels 3/4)
- Variable high-pass crossover (Channels 1/2 and Channels 3/4)
- Variable bass boost 0dB - +12dB (Channels 1/2 and Channels 3/4)
- Signal to noise ratio: 103 dB
-
Inputs and Outputs:
- 4 - RCA audio inputs (250mV - 5V)
-
Max Power Output:
- 1200 watts total
-
RMS Power Output:
- 2-Ohms: 150 Watts x 4 channels
- 4-Ohms: 75 Watts x 4 channels
- 4-Ohms Bridged: 300 Watts x 2 channels
-
Built in Crossover:
- Frequency Response: 9 Hz - 50,000 Hz
- Variable high-pass crossover: 50 Hz - 500 Hz 12 dB/octave (Channels 1/2)
- Variable high-pass crossover: 50 Hz - 500 Hz 12 dB/octave (Channels 3/4)
- Variable low-pass crossover: 50 Hz - 500 Hz 12 dB/octave (Channels 1/2)
- Variable low-pass crossover: 50 Hz - 500 Hz 12 dB/octave (Channels 3/4)
-
Dimensions:
- Overall Dimensions: 2-1/4” (H) x 8-1/2” (D) x 11-1/4” (W)
-
Fuse rating:
- Recommended Fuse: 30A x 2
Manufacturer | Power Acoustik |
---|---|
Part Number | BAMF4-1200 |
Amplifier Topology Class | Class AB |
Number of Channels | 4 Channel |
Amplifier Bridging | Bridgable @ 4 ohms |
Minimum Impedance in Bridged Mode | 4 ohm |
Minimum Impedance in Un-Bridged Mode | 2 ohm |
Strappable Amplifier | No |
RCA Pre-amp Audio outputs | 2 Pairs (Front, Rear/Sub) |
Preamp voltage | 5 volts |
Speaker level inputs | No |
Gain Control | Yes |
Bass Knob / Remote Gain | No |
Built in Crossover | High-pass, Low-pass, None |
Cooling Fan | No |
Color | Black |
Warranty | 1 Year |
Recommended Power Wire Gauge | 4 Gauge |
CEA2006 Compliant | No |
UPC Code | 709483052697 |
Return period | 30 days |
Exchange period | 30 days |
