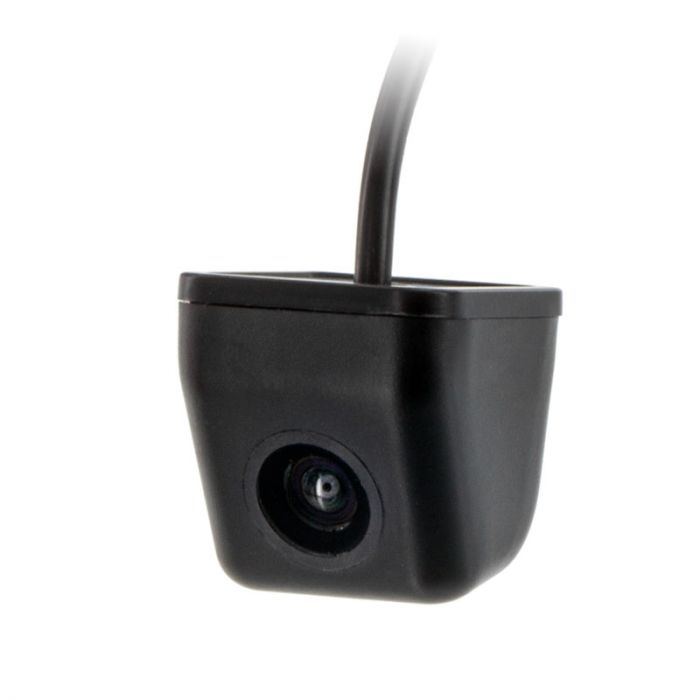

Safesight TOP-SS-LPCB Color Micro Surface Mount reverse image back up camera
$53.99
In stock
SKU
TOP-SS-LPCB
Expert Knowledge
Talk to a specialist
- Universal lip mount reverse back up camera for use with any monitor
- 170° wide viewing angle
- Fixed housing for OEM style look when mounted above the license plate ledge
- Selectable reverse image for rear view or front view
- Selectable Guide Lines or No Guide Lines - Cut wire
Unit includes: Back up camera, Mounting tab, 20ft RCA cable, DC power cable
Safesight TOP-SS-LPCB Color Micro Surface Mount reverse image back up camera
Safesight TOP-SS-LPCB Color Micro Surface Mount reverse image back up camera
- Features:
- Universal lip mount reverse back up or front view camera for use with any monitor
- Fixed housing for OEM style look when mounted above the license plate ledge
- 1/4" color CMOS sensor for excellent color and resolution
- Reverse image for back up use - cut wire to set as non reverse for front view camera
- (3) color parking guide lines for easy visual reference of distance - cut wire to disable grid
- 160° wide viewing angle
- Scanning system: 2:1 interface
- Resolution 420 TV lines
- AGC: auto White balance: auto
- Electronic shutter: 1/60 - 1/15,000 second
- Current consumption: Max 150mA. Power supply 12V DC
- Lens F=2.0 170 degree view angle
- .5 Lux light sensitivity
- One year warranty parts & labor
- Dimensions:
- Dimensions of camera unit: 1-1/8" (W) x 1-1/8" (D) x 1-3/16" (H)
| Manufacturer | Safesight |
|---|---|
| Part Number | TOP-SS-LPCB |
| Camera Sensor type | CMOS |
| Back up camera type | Top down Camera |
| Camera diameter | 2.96 mm |
| Viewing Angle | 160 degrees |
| Wireless Transmission | Wired connection |
| Waterproof ingress protection | IP67 - Dust; Immersion up to 1 m |
| Reverse Image | Selectable |
| Parking grid lines | Yes |
| Infrared Illumination | No |
| Built in Microphone | No |
| Connector Type | RCA Cable |
| Modulation | NTSC only |
| Operation Voltage | 12-15 Volt DC |
| Battery Powered | Hard wired |
| Color | Black |
| Overall Height | $1.19 |
| Overall Length | $1.13 |
| Overall Width | $1.10 |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
