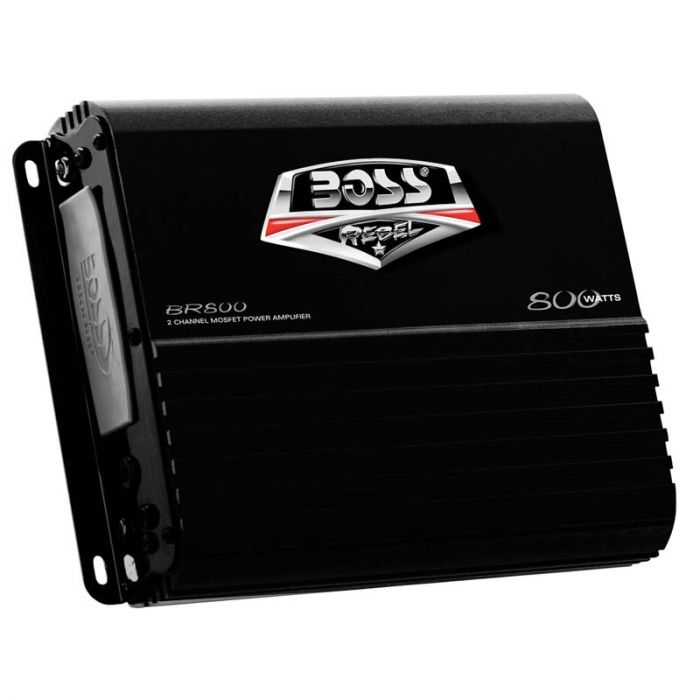

Boss Audio BR800 ATV / Marine Class AB 2-Channel Amplifier - 800 Watts
$129.99
In stock
SKU
BR800
Expert Knowledge
Talk to a specialist
- Full Range Class AB Weather-proof amplifier
- 2/1 channel output to drive stereo speakers or a subwoofer
- Includes subwoofer level controller
- Waterproof with conformal coated circuit board and UV coatings
- MOSFET regulated power supply
- 150 watts RMS x 2 channel at 4-Ohms
Unit includes: Car Amplifier, Mounting hardware, and Instruction manual
Boss Audio BR800 REBEL All-Terrain/Marine Class AB Amp (2 Channels, 800 Watts)
Boss Audio BR800 REBEL All-Terrain/Marine Class AB Amp (2 Channels, 800 Watts)
-
Features:
- Full Range Class AB Weather-proof amplifier
- Includes subwoofer level controller so you can quickly adjust bass to your desire
- 2/1 channel output to drive stereo speakers or a subwoofer
- Waterproof with conformal coated circuit board and UV coatings
- Utilizes inline weatherproof connectors for all input and output connections to prevent water intrusion
- Rubber door which tightly seals all control panel openings when not in use
- MOSFET regulated power supply for excellent power capabilities
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Power and protection LEDs
- Low and high-level inputs
- Fixed low-pass crossover
- Variable high-pass crossover
- Variable bass boost
- Frequency resp: 6 Hz to 50 kHz ± 1 dB
- Signal to noise ratio: 103 dB
- Channel separation: 90 dB
- 2 Ohm stable stereo operation
- 4 Ohm stable bridged operation
-
Inputs and Outputs:
- 2 - Nickel-plated RCA low level inputs (150 mV - 4 V)
- 2 - 4 Wire speaker level inputs (5V - 10 V)
- Input sensitivity is 150 mV to 4V
- 18 AWG speaker connections
- 8 AWG power connections
-
Max Power Output:
- 2-Ohms: 400 watts x 2 channel
- 4-Ohms: 200 watts x 2 channel
-
RMS Power Output:
- 4-Ohms: 150 watts x 2 channel
- 2-Ohms: 300 watts x 2 channel
- 4-Ohms: 800 watts x 1 channel
-
Built in Crossover:
- Fixed high-pass filter: 80 Hz @ 12 dB/octave
- Variable low-pass filter: 50 Hz - 250 Hz Hz @ 12 dB/octave
- All Pass
-
Dimensions:
- Overall Dimensions: 8.75” (L) x 2.25” (H) x 7.375” (W)
-
Current consumption:
- Recommended Fuse: 25 amp
| Manufacturer | Boss Audio |
|---|---|
| Part Number | BR800 |
| Amplifier Topology Class | Class AB |
| Number of Channels | 2 Channel |
| Amplifier Bridging | Bridgable @ 4 ohms |
| Minimum Impedance in Bridged Mode | 4 ohm |
| Minimum Impedance in Un-Bridged Mode | 2 ohm |
| Strappable Amplifier | No |
| RCA Pre-amp Audio outputs | 1 Pair |
| Preamp voltage | 4 volts |
| Speaker level inputs | Yes |
| Gain Control | Yes |
| Bass Knob / Remote Gain | Yes |
| Built in Crossover | High-pass, Low-pass |
| Cooling Fan | No |
| Color | Black |
| Warranty | 1 Year |
| CEA2006 Compliant | No |
| UPC Code | 791489123112 |
| Return period | 30 days |
| Exchange period | 30 days |
