Quality Mobile Video BU-DIMMER 12 Volt Triggered Dim On and Dim Off controller

$24.99
In stock
SKU
BU-DIMMER

Key Features

  • Smooth fade in and fade out effect: No more abrupt turn on / turn off of your lights
  • 13 different speeds for fade in and out effect
  • Maximum current: 2A
  • Input voltage: 12-24V
Unit Includes: Fade-in Fade-out LED Dimmer

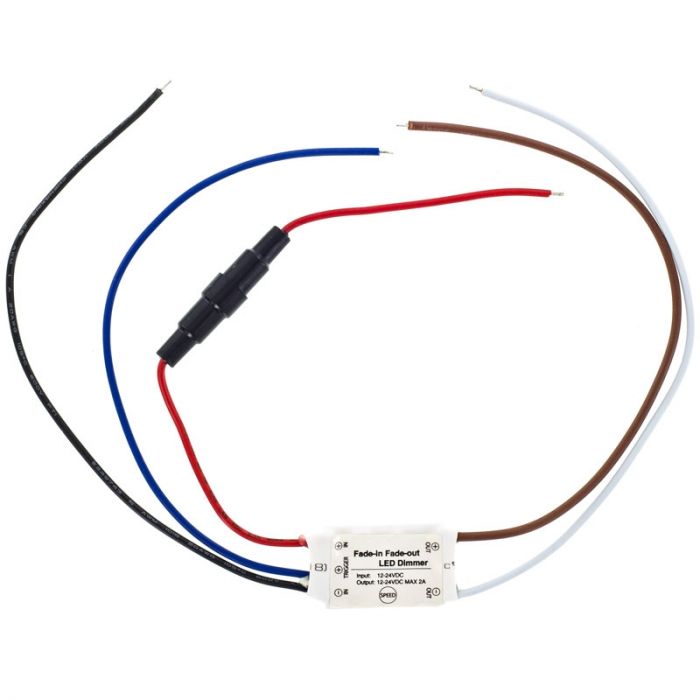

Quality Mobile Video BU-DIMMER 12 Volt Triggered Fade-in Fade-out LED Dimmer
    Features:
  • Smooth fade in and fade out effect: No more abrupt turn on / turn off of your lights. Instead, they slowly increase in brightness when you turn them on, and slowly decrease in brightness when you turn them off.
  • 13 different speeds: From slow to fast, you can choose from 13 different speeds. Simply press the "Speed" button on the dimmer to cycle the fading speeds. The LEDs will flash once to confirm the speed change.
  • Input voltage: 12-24V
  • Output voltage: 12-24V
  • Maximum current: 2A
  • Stand by current draw when unit is powered up, but connected LEDs are off: 25 mA
  • Fuse type: 2A
  • Dimmer size: 45mm x 23mm x 5mm
  • Weight: 15g
  • Length of the wire on both sides: 180mm
  • Wire gauge: 20AWG
  • Note: If you can't give constant power to the 12v+ and 12v- input wires, there will be a brief flash of the LEDs when you first apply power
  • The Fade-in Fade-out LED Dimmer is designed to have the 12v+ and 12v- input wires constantly connected to a power source, and only use the blue trigger wire to turn on/off the LEDs.
More Information
Manufacturer Quality Mobile Video
Part Number BU-DIMMER
Fuse rating 2 amp
Distribution type Power and Ground
Inputs 1-input
Input wire gauge 18 - 22 gauge
Outputs 1-output
Output gauge 20 Gauge
Warranty 1 Year
California Proposition 65
Return period 30 days
Exchange period 30 days
