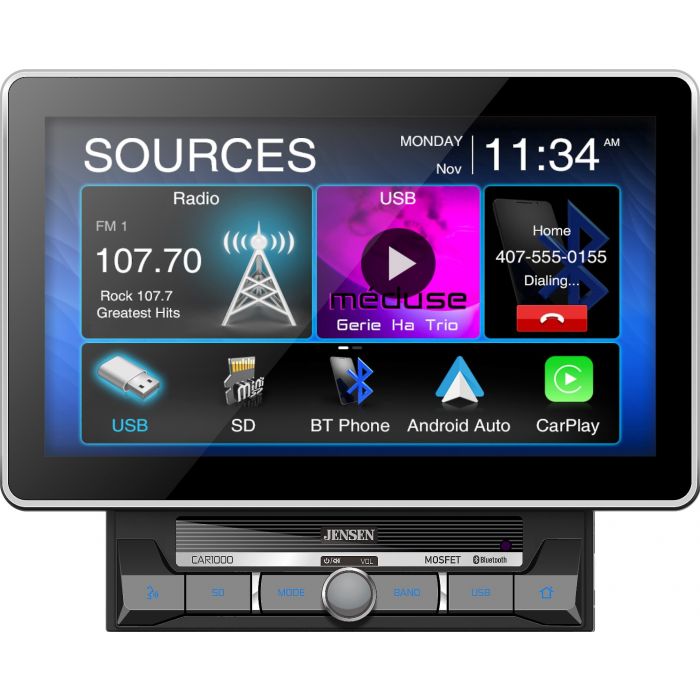

Jensen CAR1000 10" Media Receiver with Apple CarPlay, Android Auto and Over-sized Capacitive Display
Expert Knowledge
Talk to a specialist
- 10" widescreen Double DIN stereo
- Extra Large Capacitive Touchscreen
- Supports Apple CarPlay (USB Connection)
- Supports Android Auto (USB Connection)
- Sturdy and adjustable mount allows flexible installation in a variety of vehicles
- Adjust the Tilt angle of the display
- LCD screen Resolution: 1024 x 600 Pixels
- Steering wheel control input
- 50Wx4 built-in amplifier (CEA Compliant)
Jensen CAR1000 10" Media Receiver with Apple CarPlay, Android Auto and Over-sized Capacitive Display
-
Features:
- 10" widescreen Double DIN stereo
- Extra Large Capacitive Touchscreen
- Supports Apple CarPlay (USB Connection)
- Supports Android Auto (USB Connection)
- Sturdy and adjustable mount allows flexible installation in a variety of vehicles
- Adjust the Tilt angle of the display
- LCD screen Resolution: 1024 x 600 Pixels
- Steering wheel control input
- 50Wx4 built-in amplifier (CEA Compliant)
- Use Waze and Google Maps via Android Auto
- Use Apple Maps, Google Maps and Waze via Apple Carplay
- Use Google Maps and Waze via Android Auto
-
Media playback features:
- No Disc Play Back
- USB port supports up too 64GB drive
- Micro SD Card Slot supports up too 64GB card
- Supported audio codecs: MP3 and FLAC
-
Audio features:
- 8-band parametric equalizer with 8 preset options (Pop, Rock, Jazz, Classic, Beat, Flat, Soft and User)
- Time Alignment
- Subwoofer level
- Delay/Fader
- Android Auto features:
- Built in Navigation via Google Maps and Waze
- Navigation provides real-time traffic
- Hands-free voice guidance with text to speech prompts, so one can keep their eye on road while driving
- Place and receive hands-free calls using Google Assistant
- Place and receive hands-free text messages using Google Assistant
- Compatible with third party apps for a complete hands free assistant
- Requires phone to be connected via USB
-
Apple CarPlay features:
- Apple CarPlay is designed to work with Apple iPhone with Lightning-connector (iOS 7.1+)
- Navigation ready - Use native Apple Maps and Waze for vehicle navigation
- Apple maps offers points of interest and real time traffic
- Use Siri to send text messages and answer calls
- Search the internet through Siri while driving and stay connected to virtually anything
-
Tuner features:
- Built-In Radio Tuner (RDS )
- The AM/FM tuner can be preset to 30 stations
- 18 FM, 12 AM presets
-
Bluetooth features:
- Bluetooth technology facilitates convenient hands-free phone calls and audio streaming
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- Voice Recognition Dialing and phone-book function
- PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
- SSP: Secure Simple Pairing
- GAP: Generic Access Profile
- External microphone with 10 foot cord for optimal placement
- Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
- Full text message support during calls
- Siri Eyes Free voice support
-
Inputs and outputs:
- 4 - 4V preamp outputs (Front, Rear and Subwoofer) (harness)
- 1 - Rear Camera input (harness)
- 1 - Front USB input
- 1 - Rear RCA AV inputs (harness)
- 1 - Rear microphone input
- 1 - Front Camera input (harness)
- 1 - Front Micro SD Card input
| Manufacturer | Jensen |
|---|---|
| Part Number | CAR1000 |
| Chassis Size | Double DIN |
| Illumination color | Full Color |
| Faceplate features | Detachable face plate |
| NFC (Near Field Communication) | No |
| Audio Video inputs | 1 Audio Video Input |
| Audio Video Outputs | 1 Video output |
| USB input | Yes |
| SD Card input | Yes, SD Card |
| Audio Formats | AAC, FLAC, Mpeg-3, WAV, WMA |
| RCA Pre-amp Audio outputs | 3 Pairs (Front, Rear, Sub) |
| Preamp voltage | 2 volts |
| Steering Wheel Control | Yes, requires external module |
| Built in Crossover | High-pass, Low-pass |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
Car stereo installation
We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Stereo Installation Basics
Let's start with the basics of replacing your car stereo receiver. In out first video we demonstrate how to crimp or solder your wiring, mount your new receiver to your dash kit and prepare everything for an installation in your vehicle.
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
Simple radio Installation
In our third video we demonstrate this installation process from start to finish. We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Complex radio Installation
In our fourth video we demonstrate a much more difficult installation of a Car Stereo receiver. In this video we are using a more complicated dash kit and a difficult level of installation.
