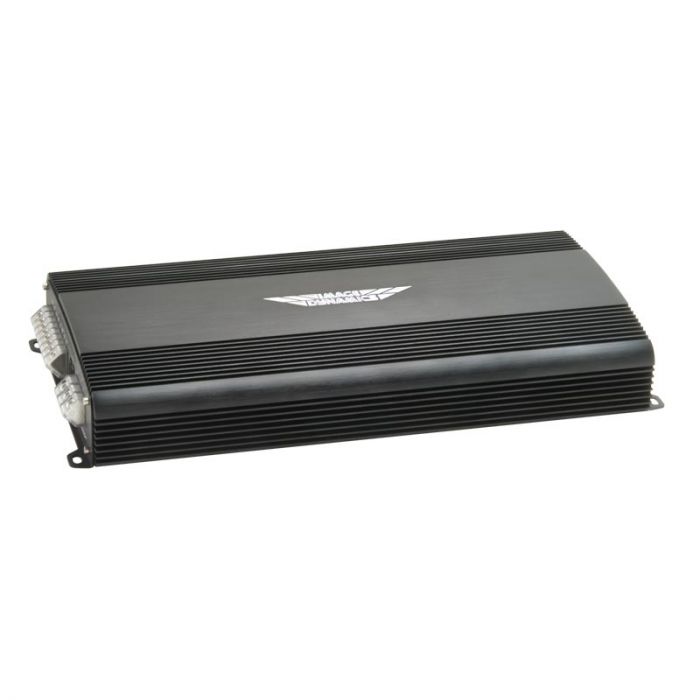

Image Dynamics i4500 460W RMS, 4-Channel Class AB i Series Car Amplifier
- 4-Channel Class AB
- LED Status Indicator
- 4/3/2 Channel Operation
- Low Level Line Inputs and Outputs
Image Dynamics i4500 460W RMS, 4-Channel Class AB i Series Car Amplifier Features:
- 4-Channel Class AB i Series Car Amplifier
- RMS Power Rating:
- 4 ohms: 75 watts x 4 chan.
- 2 ohms: 115 watts x 4 chan.
- Bridged, 4 ohms: 230 watts x 2 chan.
- CEA Power Rating @ 14.4V:
- 2 ohms: 125 watts x 4 chan.
- Pulse Width Modulated MOSFET power supply
- LED status indicator
- Fully adjustable bass EQ (0-18 dB @ 40 Hz)
- Soft delay remote turn on/off circuit to eliminate pops and clicks
- 4/3/2 Channel operation
- Low level line inputs and outputs
- 3-Way System Protection circuitry (thermal, DC, and speaker short protection)
- Remote bass level sold seperately
- Heavy duty aluminum finned heatsink for extreme heat dissipation
- Silver-plated RCA level inputs
- Silver-plated screw terminals
- Silver-plated ground and power 8-gauge input terminals
- Input sensitivity: 0.5V-4.0V
- Variable High-Pass Filter (40-250 Hz)
- Variable Low-Pass Filter (40-250 Hz)
- Crossover Slope: 12 dB
- Damping Factor: >150
- THD (Total Harmonic Distortion): 0.5%
- Frequency Response: 20-22,000 Hz
- Signal-to-Noise Ratio: >94 dB
- Fuse Rating: 2 x 30 amp
- Dimensions: 14-15/16"L x 8"W x 2-1/4"H
- 4-gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
- 1-year Manufacturer's Warranty
|Amplifier Topology Class||Class AB|
|Number of Channels||4 Channel|
|Amplifier Bridging||Bridgable @ 4 ohms|
|Minimum Impedance in Bridged Mode||4 ohm|
|Minimum Impedance in Un-Bridged Mode||2 ohm|
|Preamp voltage||4 volts|
|Speaker level inputs||No|
|Bass Knob / Remote Gain||Optional|
|Built in Crossover||High-pass, Low-pass|
