Kmoon K2246 720p 4-Channel Mobile DVR with built-in GPS and G-Sensor

Features:
• 720p (1280 x 720) H.264 Mobile DVR system with high quality recording of everything as it happens in your vehicle or truck
• Utilizes AHD signal type for excellent video quality
• Records 4 Channel video and 2 Channel audio
• Real-time HD Video Recording, 720P / D1 / HD1 / CIF record modes with adjustable frame rate quality
• Dual SD card slots for a maximum capacity of 128GB of recording media
• Built-in GPS/BD module
• Built-in G-Sensor
• Can sync record GPS information, trace replay
• Vibration and dust resistant housing to prevent corruption and damage to SD cards
• Variable ignition delay so unit will not power down when vehicle is being started, can be set for diesel and gasoline engines
• Motion detection sensor for automatic recording as when you are stopped or parked recording starts for a set interval
• Timer record options (7-day with on and off time)
• Uninterrupted cycle recording, unit will record over oldest stored footage
• Quad screen output for use with any LCD monitor
• Vehicle identification menu for embedded vehicle information
• Time and Date stamp option
• Built in clock
• Password protect settings - User and Administrator level passwords
• Lockable front panel to prevent someone from removing the SD cards
• UPS Technology: All video information can be saved automatically when the power is cut off, and make sure that all the files can not be damaged
• Over-load / Over-voltage / Short Circuit / Reverse Protection

Recording:
• Records onto 2Gb - 64Gb Micro SD card (2 slots)
• Video Recording format: H.264
• Audio Recording format: G.726
• Playback video on any computer
• Video recording modes: HD (1280 x 720)

Resolution modes:
• HD (1280 x 720)
• D1 (704 x 576)
• HD1 (704 x 288)
• CIF (352 x 288)

Recording Methods:
• Normal Mode: Continuous recording will automatically start after booting
• Time Mode: Recording by day of week and time of day
• Alarm Mode: Recording by alarm input (Optional harness required)



Video Bit Rates:
• PAL: 100 FPS @ 50Hz
• NTSC: 120 FPS @ 60Hz
• CIF: 256Kbps - 1.5Mbps (8 levels of video quality)
• HD1: 600Kbps - 2.5Mbps (8 levels of video quality)
• D1: 800Kbps - 3Mbps (8 levels of video quality)
• 720P: 4Mbps - 6Mbps (8 levels of video quality)

Playback Methods:
• Search Mode: Search video files anytime per day
• Support forward and backward play at the speed of: 2x / 4x / 8x / 16x

Inputs and Outputs:
• 4 - Camera inputs
• 1 - Monitor output for audio and video
• 1 - Front IR sensor
• 1 - SIM card slot
• Alarm inputs: Cam 1, Cam 2, Cam 3, Cam 4 (Optional harness required)
• Alarm output: Alarm 1, Alarm 2 (Optional harness required)

Power Requirements:
• Power input: 8 VDC - 36 VDC
• Power output: 12 VDC @ 2.5 amps
• Internal capacitor for data protection

Mounting:
• Includes 4 metal heavy duty mounting brackets

Dimensions:
• Dimensions without mount: 5.51" (W) x 1.65" (H) x 5.59" (D)

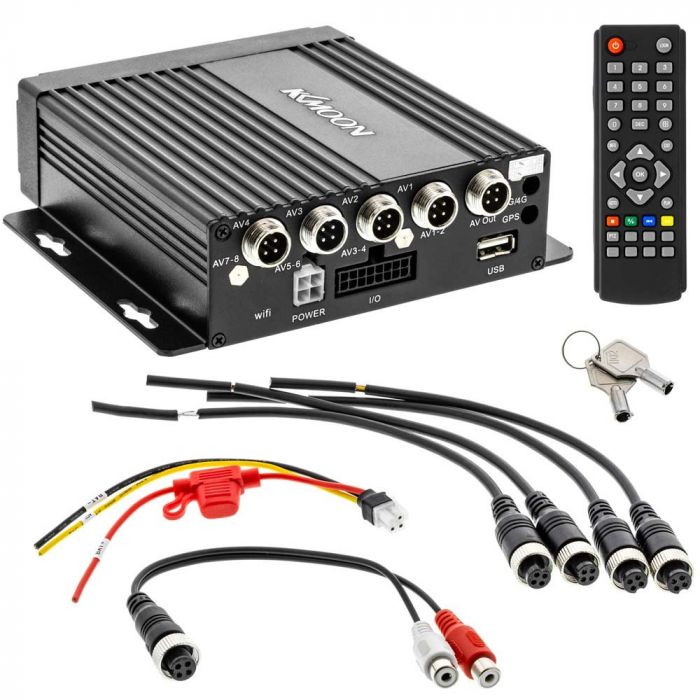

Inside the Box:
• 4-Channel 720p HD DVR recorder
• Remote control
• 4 - Camera input adapter cables
• 1 - Video output adapter cable
• Mounting hardware
• Locking keys
• Instruction manual

Note: Cameras must be used in pairs, unit can record 4 channels of 720p HD or 2 Channels in SD and 2 Channels in HD. You cannot use three HD cameras and one SD camera
