Boyo VTR400 4-Channel Black Box DVR Recorder with 1-Channel Audio recording

Boyo VTR400 4-Channel Black Box DVR Recorder with 1-Channel Audio recording

Boyo VTR400 4-Channel DVR Recorder

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Boyo VTR400 Product Highlights

  • 2.0 Megapixel CMOS Digital Sensor for high resolution recordings
  • Front camera with 720 x 480 pixel resolution for high quality playback
  • Built-In G-Sensor that measures turns and impact
  • MicroSD memory card Storage
  • Cigarette lighter cord works in 12 volt and 24 volt vehicles and converts to 5 volt output
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

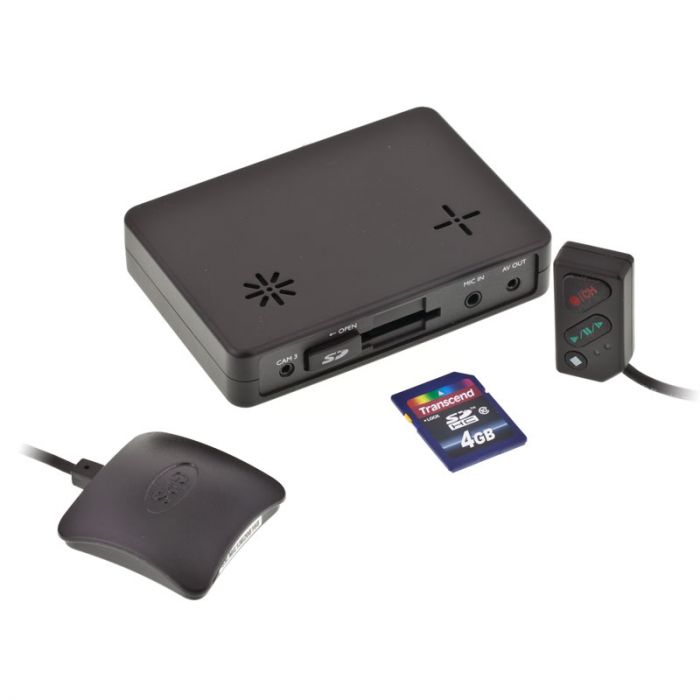

Unit includes: 4-Channel DVR recorder, 4 Gb Micro SD card, Video output cable, 3-Camera input cables, GPS sensor, Wired controller, SD-Card, and Instruction manual

Record everything that is taking place as you drive. The Boyo VTR400 DVR recorder can simultaneously records 4 cameras as you are driving to help in the event of an accident. The VTR400 has a built in G-Sensor that records the rate of acceleration, rate of turn, and rate of impact. The VTR400 also has an external GPS sensor that tracks your exact position and provides additional accuracy to the G-sensor. The VTR400 can playback all recorded data directly on a computer with the included software. The software displays all four cameras at once with GPS map information and G-sensor data. Protect yourself today!

Boyo VTR400 4-Channel Black Box DVR Recorder with 1-Channel Audio recording features:

  • Built in camera with video recording at a resolution of 720 x 480 pixels for high quality playback
  • Motion detection sensor for automatic recording as when you are stopped or parked recording starts for a set interval
  • Built-In 3 Axis G-Sensor that measures turn rate and impact in real time
  • Microphone input for audio recording
  • Internal microphone for audio recording when external mic is not used
  • Built in buzzer beeper for status and event recording alerts
  • Panic recording mode
  • Uninterrupted cycle recording- unit will record over oldest stored footage
  • Time and Date stamp option
  • Recording status LED
  • Built in a GPS clock
  • Password protect settings

  • Records onto 2Gb - 32Gb Micro SD card (Class 10 Standard and above)
  • Video Recording format: MPEG4
  • Audio Recording format: AAC
  • Playback video on any computer with included software
  • Video recording modes: SD (720 x 480)
  • 1 Camera supports: 1~30 fps@ 720x480, 1~30 fps @ 720x240
  • 2 Cameras supports: 1~15 fps @ 720x480, 1~30 fps @ 720x240
  • 3 Cameras supports: 1~10 fps @ 720x480, 1~15 fps @ 720x240
  • 4 Cameras supports: 1 ~ 5 fps @ 720x480, 1~15 fps @ 720x240

  • 3 Recording methods:
  • Normal Mode: Continuous recording will automatically start after booting the VTR400
  • Event Mode: Recording by Motion Detection, G-sensor, Alarm 1~3 or [PANIC] button
  • Dual Mode: Continuous recording will automatically start after booting and make a separate event recording file when there is an event

  • Pre Event and Post Event settings:
  • Pre-record time is 5~30sec, if total frame rate is below 8fps @ 720x576 or 10fps @ 720x480
  • Pre-record time is 5~25sec, if total frame rate is 12fps @ 720x576 or 15fps @ 720x480
  • Pre-record time is 5~15sec, if total frame rate is 25fps @ 720x576 or 30fps @ 720x480
  • Post-record time is 5~300sec

  • Alarm settings:
  • Alarm 1: Event record, Trigger high or low, Custom name
  • Alarm 2: Event record, Trigger high or low, Custom name
  • Alarm 3: Event record, Trigger high or low, Custom name

Inputs and outputs:
  • 3 - Camera input cables
  • Female RCA plug on unit to accept fourth camera input for backup
  • Hardwired remote control with channel record button, Panic record, Play, Shutter, and Stop
  • Signal inputs: +12 volts, Ground, Speed pulse
  • Alarm inputs: Cam 1, Cam 2, Cam 3
  • Includes 4Gb SD card
  • GPS Log to KML adapter to export to Google earth to show route
  • Audio / Video output for connection to Live view on LCD monitor

Power requirements:
  • Hard wire cord for 12 volt and 24 volt vehicles
  • Internal capacitor for data protection

  • Mounts with double stick tape or velcro
  • Includes velcro pads
  • Includes double stick tape
  • Includes cable retainers

  • Dimensions with mount: 3-7/8" (W) x 2-7/8" (W) x 13/16" (D)

Technical Specifications

Manufacturer Boyo
Part Number VTR400
Recorder Type DVR Recorder
Camera Sensor type No
Camera diameter No
Infrared Illumination No
GPS Data No
Built in Microphone Yes
Built in Speakers Yes
LCD Screen Size No
Native Screen Resolution N/A
Widescreen Display No
LCD back light type N/A
LCD Screen Brightness N/A
Touchscreen N/A
Headphone Jack N/A
Built in FM Modulator N/A
Audio Video inputs 4 Video Input
Audio Video Outputs 1 Audio/Video output
HDMI output No
USB input No
SD Card input Yes, SD Card
Cigarette Lighter Cord Included N/A
Auto on/off Yes
Slide track on back N/A
Mount included No
Mounting thread for stand mount N/A
Operation Voltage 12 - 24 Volt DC
Housing material N/A
Trigger wire N/A
Image Flip Function N/A
Quad Screen N/A
Warranty 1 Year
Color Black
UPC Code 689076243810
