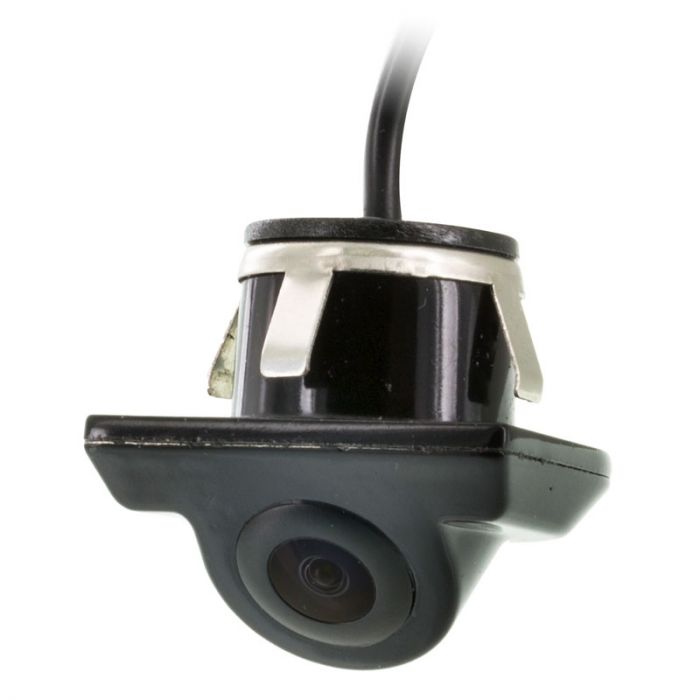

Accelevision RVCHD1150 Flange mount reverse HD back up camera
$85.99
In stock
SKU
RVCHD1150
Expert Knowledge
Talk to a specialist
- Designed to be mounted in lips or overhangs near license plate
- 150 degree viewing angle
- High gloss black finish
- 520 TV Lines image sensor with HD image quality
Unit includes: Reverse back up camera, RCA cable, Drill bit, DC power plug, and Instruction manual
Accelevision RVCHD1150 Flange mount reverse HD back up camera
Accelevision RVCHD1150 Flange mount reverse HD back up camera
- Features:
- Designed to be mounted in lips or overhangs near license plate (Must be facing down with camera body facing up)
- 150 Degree wide angle lens with digital image processor for HD image quality
- Image Sensor: 2.96mm Color CMOS
- Lens Angle: 150°
- Resolution: 525 TV Lines
- Total Pixels: 640 X 580
- Ip Rating: 67
- Min. Illumination: .5 Lux
- Auto Image Adjustment
- Operating temperature: -20°C - 60°C
- Video Output: 1.0 Vpp-75 Ohm
- Power Supply: Dc 12V
- 17Ft Male To Male Rca Video Cable
- Waterproof
- Dimensions:
- Dimensions: Total height: 1-3/8" (H) , Exposed height: 3/4" (H) X 1-3/8" (W) X 1-1/4" (D)
- Drilling Diameter: .825"
| Manufacturer | Accelevision |
|---|---|
| Part Number | RVCHD1150 |
| Camera Sensor type | CMOS |
| Back up camera type | Top down Camera |
| Camera diameter | 2.8mm |
| Viewing Angle | 150 degrees |
| Wireless Transmission | Wired connection |
| Waterproof ingress protection | IP67 - Dust; Immersion up to 1 m |
| Reverse Image | Yes - Reverse Image |
| Parking grid lines | Yes |
| Infrared Illumination | No |
| Built in Microphone | No |
| Connector Type | RCA Cable |
| Modulation | NTSC only |
| Operation Voltage | 12-15 Volt DC |
| Battery Powered | Hard wired |
| Color | Black |
| Warranty | 1 Year |
| UPC Code | 736836550081 |
| Return period | 30 days |
| Exchange period | 30 days |
