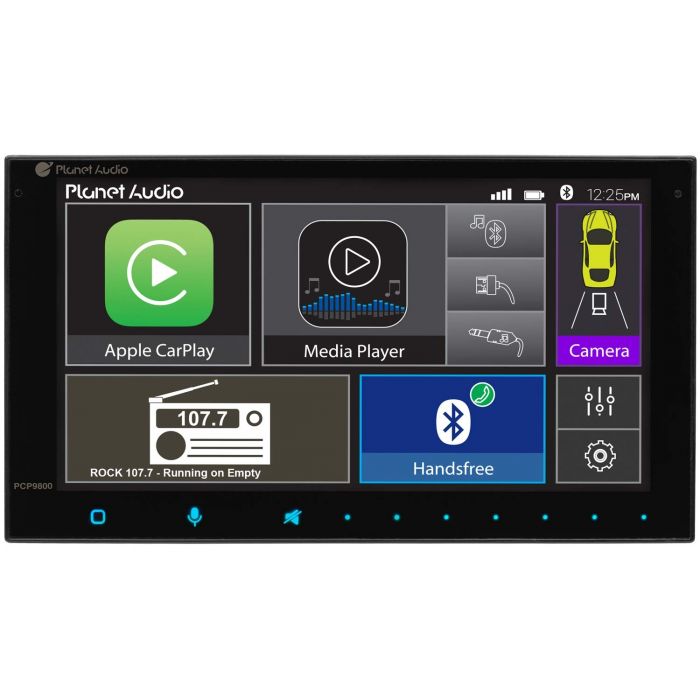

Planet Audio PCP9800 Double DIN Digital Media Receiver with 6.75" Touchscreen Display and Apple Carplay
$256.99
In stock
SKU
PCP9800
Expert Knowledge
Talk to a specialist
- In Dash 6.75 inch Resistive touchscreen digital media receiver
- Completely mech-less and does not contain a disc player, meant for digital media playback
- Built in Bluetooth for phone calls and audio streaming
- Apple Car Play compatible
- Built in AM/FM radio tuner
- Dual Rear USB Ports
- Steering wheel control compatible
Unit Includes: Double DIN receiver, Bluetooth Microphone, Wiring harness, Audio video input harness, Audio video output harness, 3.5mm harness, Mounting hardware, and Instruction manual
Planet Audio PCP9800 Double DIN Digital Media Receiver with 6.75" Touchscreen Display and Apple Carplay
Planet Audio PCP9800 Double DIN Digital Media Receiver with 6.75" Touchscreen Display and Apple Carplay
- Features
- Full-color 6.475" inch 16:9 Widescreen Double DIN In-Dash TFT and LCD Touch screen monitor
- Apple CarPlay make it easier than ever to use your smartphone's helpful features on the road
- Supports Apple Carplay
- High power 4-channel amplifier: 4 channels x 80 watts Peak and 4 channels x 15 watts RMS
- Built in Bluetooth with HFP, A2DP, AVRCP for wireless audio streaming and wireless phone operation
- (1) Camera inputs for reverse camera
- LCD screen Resolution: 800 x 480 Pixels
- Dimmer and brightness control
- Multi-color button illumination
- Steering wheel control input
- Includes wireless remote control
- Audio Features
- 3-band parametric equalizer with 8 preset and custom options (Classic / Rock / Pop / Jazz)
- Manual EQ with 100 Hz / 1 kHz / 10 kHz ±7dB Adjustments
- Low-Pass filter with variable crossover frequencies (Adjustable from 80 Hz / 120 Hz / 160 Hz) at 12dB per octave
- Variable subwoofer level control (+14dB to 0dB)
- Subwoofer phase control 0° - 180°
- Internal amplifier control: When using RCA's internal amplifier can be turned off
- Loudness control
- Media Playback
- Compatible audio codecs: FLAC, WMA, WAV, MP3, APE, and OGG
- Compatible video codecs: AVI, OGM, MKV, MOV, and WMV
- Compatible picture codecs: JPEG, PNG and BMP
- MP3 ID3 tag information, display artist and song information
- FLAC Audio Playback for high definition audio downloads (Up to 48kHz/16bit)
- High quality Digital to Analog Converter
- Supports up 32 GB flash drives
- Tuner features:
- Includes Radio AM & FM tuner with 30 preset stations memory
- RDSB (Radio data service) Tuner
- Inputs and Outputs
- 3 - 2V preamp outputs for (Front, Rear and Subwoofer)
- 1 - Rear Input for Rear Camera
- 1 - Rear Audio Input
- 1 - Sirius XM radio tuner input
- 1 - Optional navigation input
- 2 - Rear USB input (one for Apple CarPlay and on for USB drives)
- 1 - Bluetooth Microphone
- 1 - Steering wheel control input requires ASWC steering wheel interface
- Apple Car Play features:
- Built in Navigation via Apple Maps
- Navigation provides real-time traffic
- Hands-free voice guidance with text to speech prompts, so one can keep their eye on road while driving
- Place and receive hands-free calls using Siri Assistant
- Place and receive hands-free text messages using Siri Assistant
- Compatible with third party apps for a complete hands free assistant
- Requires phone to be connected via USB
- Bluetooth
- Integral Bluetooth technology facilitates convenient hands-free phone calls and audio streaming
- A2DP 1.2: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP 1.4: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- HFP 1.5: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- PBAP 1.0: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
- External microphone with 10 foot cord for optimal placement
- Bluetooth 3.0 certified
- Siri Eyes Free voice support
- Dimensions:
- Single DIN chassis, Double DIN Display
- Chassis Dimensions: 7"W x 6-1/2"D x 3-15/16"H
- Display Dimensions (W X H): 6.36 x 3.94in
| Manufacturer | Planet Audio |
|---|---|
| Part Number | PCP9800 |
| Chassis Size | Double DIN |
| Faceplate features | None |
| RCA Pre-amp Audio outputs | 3 Pairs (Front, Rear, Sub) |
| Preamp voltage | 2 volts |
| LCD Screen Size | 5 inch - 6 inch |
| Illumination color | Full Color |
| Swivel Screen | No |
| Touchscreen | Yes |
| Widescreen Display | 16:9 Widescreen Display |
| Native Screen Resolution | 800 x 480 |
| Front camera input | No |
| Back up camera input | Yes |
| Audio Video inputs | 1 Audio Input |
| Front mounted auxiliary input | None |
| Audio Video Outputs | 1 Audio/Video output |
| Built-in DVD Player | No |
| Disc Playback | No |
| Anti-Shock | No |
| Dual Zone Control | No |
| SD Card input | No |
| USB input | Dual USB |
| Smartphone Compatible | Yes |
| Smartphone Technology | Apple CarPlay |
| Built in Crossover | Low-pass |
| Audio Formats | FLAC, Mpeg-3, WAV, WMA |
| Built in Bluetooth | Built in Bluetooth |
| NFC (Near Field Communication) | No |
| HD Radio | No |
| Radio Data Service - RDS | Yes |
| Satellite Radio | No |
| Navigation | via Smartphone |
| Steering Wheel Control | Yes, requires external module |
| Wireless Remote Control | No |
| CEA2006 Compliant | No |
| Warranty | 1 Year |
| UPC Code | 636210105558 |
| Return period | 30 days |
| Exchange period | 30 days |
Write Your Own Review
Customer Questions
Car stereo installation
We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Stereo Installation Basics
Let's start with the basics of replacing your car stereo receiver. In out first video we demonstrate how to crimp or solder your wiring, mount your new receiver to your dash kit and prepare everything for an installation in your vehicle.
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
Simple radio Installation
In our third video we demonstrate this installation process from start to finish. We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Complex radio Installation
In our fourth video we demonstrate a much more difficult installation of a Car Stereo receiver. In this video we are using a more complicated dash kit and a difficult level of installation.
