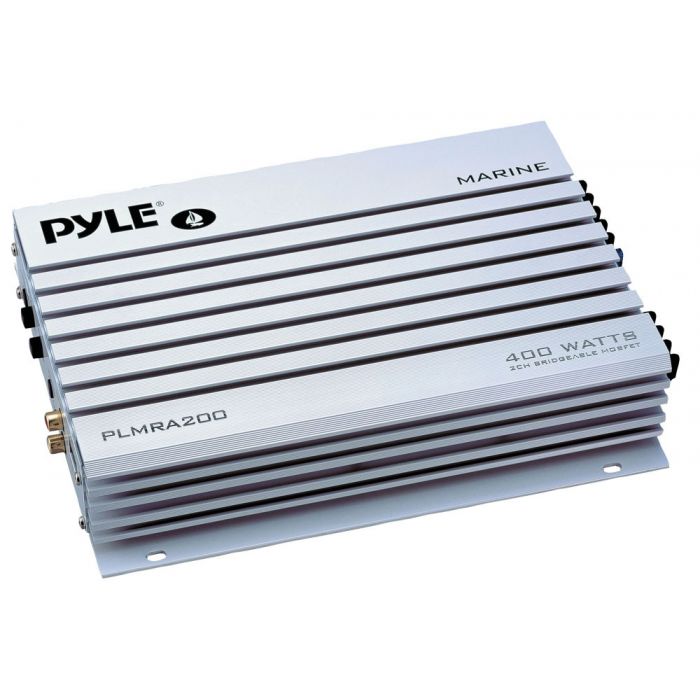

Pyle PLMRA200 2-Channel 400-Watt Waterproof Marine Amplifier

$71.99
In stock
SKU
PLMRA200

Key Features

  • 2-Channel 400-Watt Hydra Series Waterproof Marine Class AB Amp
  • Bridgeable @ 4-ohms
  • High Level Speaker Input Connector
  • 100W x 2 @ 4 Ω
  • 400W x 1 (bridged)
Unit includes: Marine amplifier

Pyle PLMRA200 2-Channel 400-Watt Waterproof Marine Amplifier
    Features:
  • Bridgeable Audio Amplifier
  • 2-Channel System
  • Dual MOSFET Power Supply
  • Marine Grade Construction
  • Waterproof Marine Rating IP-01
  • Stereo / Bridge Mode Selection Switch
  • Adjustable Input GAIN Level Control
  • RCA (L/R) Input Connector Jacks
  • High Level Speaker Input Connector
  • Power & Protection LED Indicator Lights
  • Gold-Plated Speaker Output Terminal Connectors
  • Crossover Frequency Control
  • Anti-Thump Delay Circuitry
  • Built-in Thermal, Overload & Speaker Short Protection
  • Heavy Duty Aluminum Alloy Heatsink
    Pre-Amp features:
  • Frequency Response - 10Hz - 30kHz
  • Signal to Noise Ratio - >80dB
  • Gain Adjust - 250mV - 10V
  • Speaker Level Gain Adjust - 4V - 12V
  • Total Harmonic Distortion - 1.0%
  • Variable Low-pass Crossover Frequency - 40Hz - 450Hz
  • Variable Low-pass Crossover Slope - (dB/oct): 14dB/octave
    Inputs and Outputs:
  • 2-Channel operation
  • 1 Pair RCA low level inputs
    Max Power Output:
  • Total Power Output: 400 Watts
    RMS Power Output:
  • 100W x 2 @ 4 Ω
  • 125W x 2 @ 2 Ω
  • 400W x 1 (bridged)
    Dimensions:
  • Overall Dimensions: 2 inch (H) x 10 inch (L) x 7-7/8 inch (W)
More Information
Manufacturer Pyle
Part Number PLMRA200
Amplifier Topology Class Class AB
Number of Channels 2 Channel
Total RMS Power at 1 ohm 0.00
Total RMS Power at 2 ohm 400.00
Total RMS Power at 4 ohm 300.00
RMS Output per Channel (x1 at 4 ohms) 400.00 Watts
RMS Output per Channel (x2 at 4 ohms) 200.00 Watts
RMS Output per Channel (x4 at 4 ohms) 0.00 Watts
Total Peak Power Output 400.00 (Watts)
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
RCA Pre-amp Audio inputs 1 Pair
RCA Pre-amp Audio outputs None
Preamp voltage 2 volts
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain No
Built in Crossover Low-pass
Cooling Fan No
Color White
Warranty 90 days
Recommended Power Wire Gauge 8 Gauge
Overall Height 2.00 inches
Overall Length 10.00 inches
Overall Width 7.87 inches
CEA2006 Compliant No
UPC Code 68888883368
Return period 30 days
Exchange period 30 days
