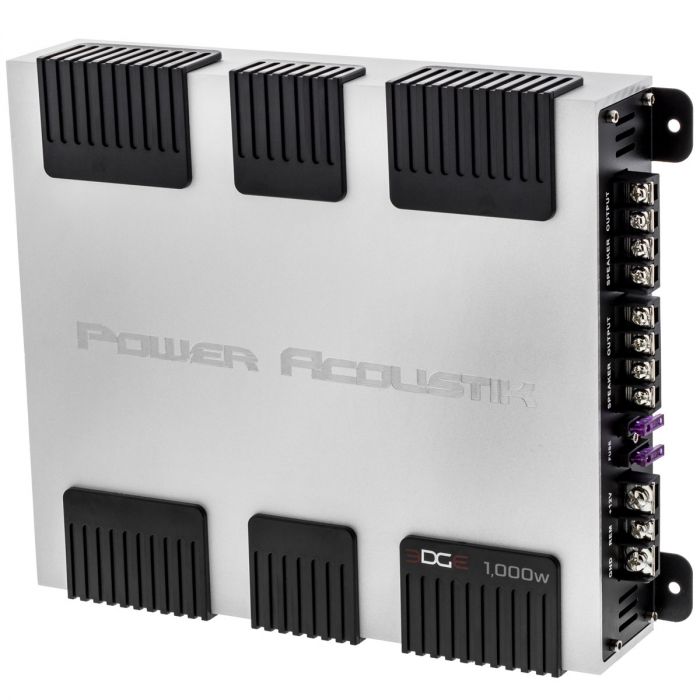

Power Acoustik EG4-1000 4 Channel Class AB Amplifier - 1000 Watts
$99.99
In stock
Only 4 left
SKU
EG41000
Expert Knowledge
Talk to a specialist
- Power Acoustik EG4-1000 Class AB 4-Channel Amplifier
- Designed as a dedicated full range audio amplifier
- 2 Ohm stable in stereo and 4 ohm stable in mono
- 125 Watts RMS x 4 channels @4-Ohms
- 65 Watts RMS x 4 channels @4-Ohms
- 4-RCA level inputs
The EG4-1000 is an elegantly designed amplifier with 1,000 watts of maximum power output. It provides 4-channel stereo output with possible impedances of 2-ohms and 4-ohms and can be dual bridged for 2-channel operation with an impedance of 4 ohms. The MOSFET Power Supply houses a robustly constructed PCB with PWM. The internal circuitry is protected from direct shortages, thermal hazards and overload of power. If you have a factory stereo system, you can further enhance its audio levels with the High/Speaker level that accepts the speaker signal and Low level RCA inputs which accepts signal from the pre-amp outputs of the source unit.
4 Gauge Power wiring and 8 Gauge speaker wire outputs enables a higher and stable flow of current. Enjoy the pure audio quality with variable 12dB High and Low Pass crossovers.
Unit includes: Car Amplifier, Mounting hardware, and Instruction manual- Features:
- Power Acoustik EG4-1000 Class AB 4-Channel Edge Series Amplifier
- Designed as a dedicated full range audio amplifier for door speakers or bridged for subwoofers
- Robust MOSFET Power Supply with Military grade PCB with PWM
- 2 ohms stable in stereo and 4 ohm stable in mono for high power output
- 3-way protection circuitry (Thermal, Overload, and Speaker short protection)
- High Speaker Level and Low Level RCA Input
- Variable input gain control with low level input voltage up to 6 Volts
- Nickel plated low level RCA inputs
- Nickel plated low level RCA outputs
- Variable low-pass crossover: 50 - 400Hz, 12 dB/octave
- Variable high-pass crossover: 50 - 400Hz, 12 dB/octave
- Variable bass boost: 0dB / +6dB / +12dB
- Gain Control
- Color: Satin Silver Chassis
- Inputs and Outputs:
- 4 - Nickel-plated RCA low level inputs (250 mV - 6 V)
- 2 - Nickel-plated RCA level outputs
- Input sensitivity is 250 mV to 6V
- 8 AWG to 18 AWG speaker connections
- 4 AWG to 8 AWG power connections
- Max Power Output:
- 4-Ohms Dual Bridged: 500 watts x 2 channel
- 2-Ohms Stereo: 250 watts x 4 channel
- 4-Ohms Stereo: 130 watts x 4 channel
- RMS Power Output:
- 4-Ohms Dual Bridged: 250 watts x 2 channel
- 2-Ohms Stereo: 125 watts x 4 channel
- 4-Ohms Stereo: 65 watts x 4 channel
- Built in Crossover:
- Variable low-pass crossover: 50 - 400Hz, 12 dB/octave
- Variable low-pass crossover: 50 - 400Hz, 12 dB/octave
- All Pass
- Dimensions:
- Overall Dimensions: 2.25” (H) x 9” (D) x 10.25” (W)
- Current consumption:
- Recommended Fuse: 70 amp
| Manufacturer | Power Acoustik |
|---|---|
| Part Number | EG4-1000 |
| Amplifier Topology Class | Class AB |
| Number of Channels | 4 Channel |
| Amplifier Bridging | Bridgable @ 4 ohms |
| Minimum Impedance in Bridged Mode | 4 ohm |
| Minimum Impedance in Un-Bridged Mode | 2 ohm |
| Strappable Amplifier | No |
| RCA Pre-amp Audio outputs | 2 Pairs (Front, Rear) |
| Preamp voltage | 6 volts |
| Speaker level inputs | Yes |
| Gain Control | Yes |
| Bass Knob / Remote Gain | No |
| Built in Crossover | High-pass, Low-pass |
| Cooling Fan | No |
| Color | Silver |
| Warranty | 1 Year |
| Recommended Power Wire Gauge | 4 Gauge |
| CEA2006 Compliant | No |
| UPC Code | 709483052772 |
| Return period | 30 days |
| Exchange period | 30 days |
