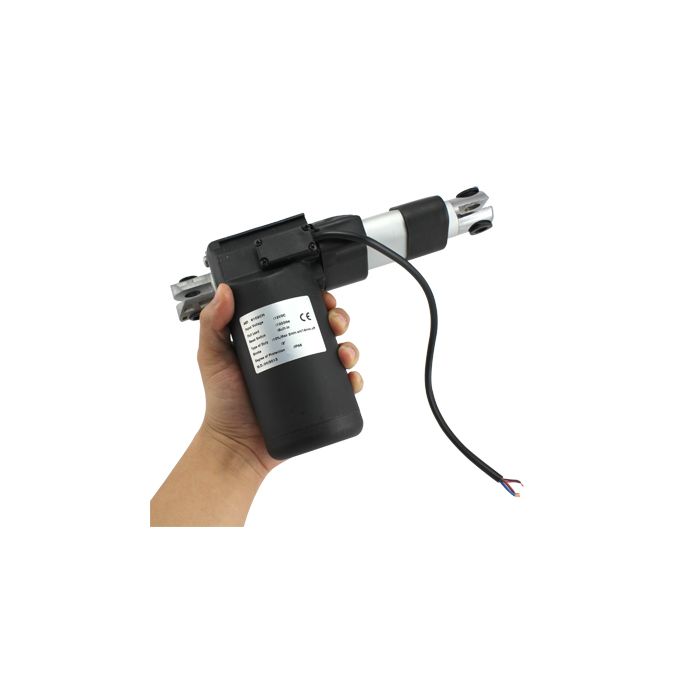

Quality Mobile Video TOP-A6102CH 2" Stroke High Speed Linear Actuator - 1000 LB capacity

Rating:
64 % of 100
$197.99
In stock
SKU
TOP-A6102CH

Key Features

  • 2 inch stroke
  • 7/16" per second no load speed
  • 1000 pound useful load
  • Built in Limit Switches
  • Built in reed switch feedback
  • IP 66 waterproof rating
Unit Includes: Linear Actuator and Instruction manual

Quality Mobile Video TOP-A6102CH 2" Stroke High Speed 12 Volt Linear Actuator with Built in Limit Switches & Pulsing Reed switch feedback - 1000 LB capacity features:
  • Stroke 2"
  • Closed Length 9"
  • Open Length 11"
  • Speed per second .4 inch per second no load
  • Speed per second .3 inch per second at full rated load
  • Useful load pounds: 1000
  • Power consumption 3 amps at 12vdc no load
  • Power consumption 11 amps at 12vdc at full load
  • Built in limit switches
  • Anodized Aluminum Housing
  • Internally lubricated jack screw
  • Side mounted DC motor
  • Built in reed switch for feedback as to where the actuator is in its extension, used in control systems
  • Fixed internal limit switches
  • IP 66 waterproof rating
  • S2 Duty cycle rating
  • Operating Temperature: -26C - 65C
More Information
Manufacturer Quality Mobile Video
Part Number TOP-A6102CH
Warranty 1 Year
Actuator load 1000 pounds
Linear actuator speed .4 inch per second
Linear actuator stroke 2 inch
Operation Voltage 12-15 Volt DC
Waterproof ingress protection IP66 - Dust; String Water Jets/Waves
Return period 30 days
Exchange period 30 days
