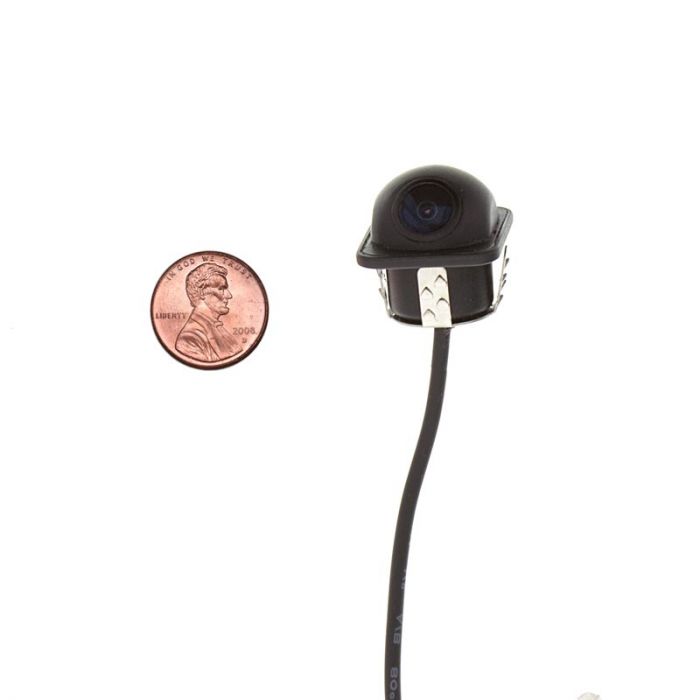

Safesight TOP-441M Micro flush mount Reverse Backup Camera

Rating:
92% of 100
$42.99
In stock
SKU
TOP-441M

Key Features

  • Flush Mount Camera
  • Cmos Lens
  • 170 Degree Wide Angle
  • Very Small
Unit includes: Reverse back up camera, Wiring harness, Drill bit, and Instruction manual

Safesight TOP-441M Micro flush mount Reverse Backup Camera
  • 1/4" color CMOS sensor
  • IP67 rated
  • 170 degree wide viewing angle
  • 2.7mm lense
  • Partial flush mount so camera has minimal protrusion, great for use near license plate area
  • Scanning system: 2:1 interface
  • Resolution 420 TV lines
  • AGC: auto White balance: auto
  • Electronic shutter: 1/60 - 1/15,000 second
  • Current consumption: Max 150mA. Power supply 12V DC
  • Lens f=1.8mm / F=2.0 170 degree view angle
  • .1 Lux light sensitivity
  • Dimensions of camera: .91" (W) x 1.26" (D) x 1.07" (H)
  • One year warranty parts & labor
  • 2 cut-able wires allow you to change between reverse and non reverse and guide lines and no guide lines
More Information
Manufacturer Safesight
Part Number TOP-441M
Camera Sensor type CMOS
Back up camera type Surface Mount Camera
Camera diameter 2.8mm
Viewing Angle 170 degrees
Waterproof ingress protection IP66 - Dust; String Water Jets/Waves
Reverse Image Yes - Reverse Image
Parking grid lines Yes
Infrared Illumination No
Built in Microphone No
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage 12-15 Volt DC
Color Black
Warranty 1 Year
Return period 30 days
Exchange period 30 days
