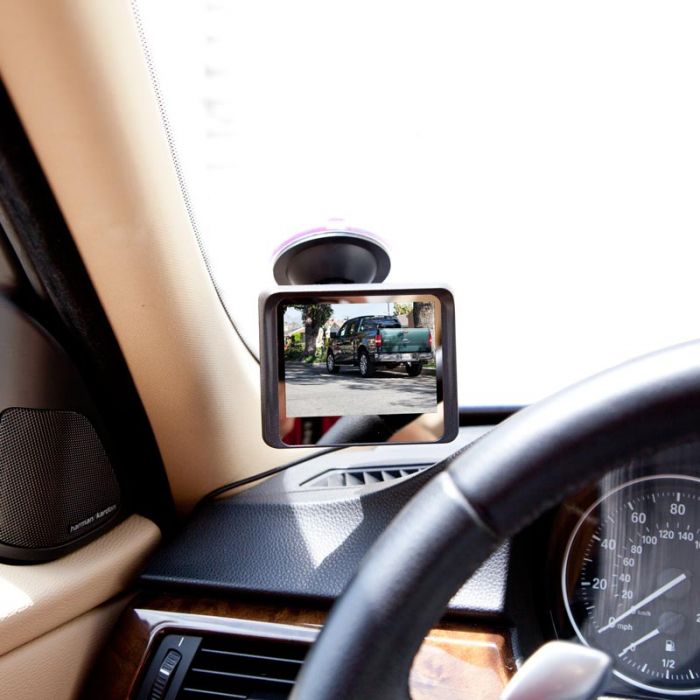

Safesight SC0301-TOP-RM355A 3.5" Suction cup reverse back up monitor with license plate mount reverse camera

Safesight SC0301-TOP-RM355A 3.5" Suction cup reverse back up monitor with license plate mount reverse camera

Safesight DC0301-TOP-RM355A Reverse back up car camera system - Back up system installed

More Views

Safesight
Free Shipping on orders $99+

Overall Rating 4.9 (Based on 3 reviews)

Safesight SC0301-TOP-RM355A Product Highlights

  • 3.5" Active matrix TFT LCD Screen
  • Suction cup mount for easy removal from vehicle when not in use
  • 2 auto sense video inputs
  • Parking Assist grid lines for better distance determination
  • License plate mount back up camera
  • IR illumination for night vision
  • Installs in any vehicle
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together

Overview

Unit includes: Reverse back up camera, 3.5" LCD Monitor, 18 foot RCA cable with power lead, DC Power cord and Instruction manual

Safesight SC0301-TOP-RM355A Back up camera system:

Safesight TOP-RM355A 3.5" monitor features:
  • 3.5" Active matrix TFT LCD Screen
  • Suction cup mount for easy installation
  • 2 video inputs
  • Video sense video input - Automatically turns monitor on and off when a video signal is sensed
  • 180 degree vertical angle adjustment on suction cup can be windshield mounted or dash mounted
  • 80 degree horizontal angle adjustment
  • Resolution: 480 x 234
  • Brightness: 300 NIT
  • Contrast ratio: 250:1
  • Dimensions: 3-5/8" (W) x 3" (H) x 1" (D)


SafeSight SC0301 License plate reverse camera features:
  • Resolution: 380 TV lines x 60 fields
  • Image sensor: OV 7910 Color CMOS
  • Lens: 6mm 92°
  • Low light illumination: 1.5 Lux @ F1.2
  • Video output: RCA 1.0 @ 75Ω
  • Power supply: DC 12V > 75Ω
  • Auto switch PAL/NTSC
  • Temperature: -10–50°C
  • Camera dim: 1.3" (H) x 8" (W) x 1.2" (D)

Technical Specifications

Manufacturer Safesight
Part Number SC0301-TOP-RM355A
LCD Screen Size 3 inch - 4 inch
Native Screen Resolution 480 x 234
Widescreen Display 4:3 Normal Aspect Ratio
LCD Screen Brightness 300 Nit
LCD back light type LED
Auto Dimming No
Trigger wire Auto video sense trigger
NTSC/PAL NTSC and PAL
Slide track on back No
Image Flip Function Yes, reverse image flip
Built in Speakers No
Stand Mount included Yes, Pedistal stand
Auto on/off Yes
Cigarette Lighter Cord Included No
Audio Video inputs 2 Video Inputs
Wireless Remote Control No
Monitor Type Stand alone monitor
Mirror Mount Type No
Back up camera type License Plate Camera
Options No
Product Options No
Homelink No
Built in Bluetooth No Bluetooth
Reverse Image Yes - Reverse Image
Camera Sensor type CMOS
Camera diameter 2.8 mm
Viewing Angle 90 degrees
Parking grid lines Yes
Built in Microphone No
Infrared Illumination Yes
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Battery Powered No
Case included No
Connector Type RCA Cable
Wireless Transmission No, wired connection
Color Black
Operation Voltage 12 - 15 Volt DC
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code No

Customer Reviews

Excellent but room for improvement....
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
The picture quality seems to be top notch. I had issues with the screen cover staying on, had to buy super glue gell to get it to stay put. The instructions are the ONLY reason for 4 stars, only pictures, no explanation, or listing the possibility of wiring in a switch to turn camera on when not in reverse.
Improve the installation instructions and I'd give it 5 stars across the board.
(Posted on 2/10/2018)
Husband loves it.
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
Back up system works great and my husband loves it! (Posted on 3/3/2014)
Very nice little system
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
I was looking for a nice back up camera system that had a suction cup monitor. I park my car in a not so great are and was concerned to have a monitor permanently attached to my dash for fear that it would get stolen. This system is very cool and wasn't that hard to put in. The camera and monitor have excellent picture quality and it has a very good suction cup mount. (Posted on 10/29/2013)
