Safesight SC0301 License plate camera for backup
Expert Knowledge
Talk to a specialist
- Plastic bar mount license plate camera
- 20 degree camera vertical adjustment
- 8 IR LED's for night-vision capability
- CMOS chip for great quality and low cost
- 92 degree horizontal viewing angle
- Nylon reinforced plastic for extra durability
Safesight License Plate Mount Rear View Camera:
- Plastic bar mount license plate camera
- 20 degree camera vertical adjustment
- 8 IR LED's for night-vision capability
- CMOS chip for great quality and low cost
- 92 degree horizontal viewing angle
- Nylon reinforced plastic for extra durability

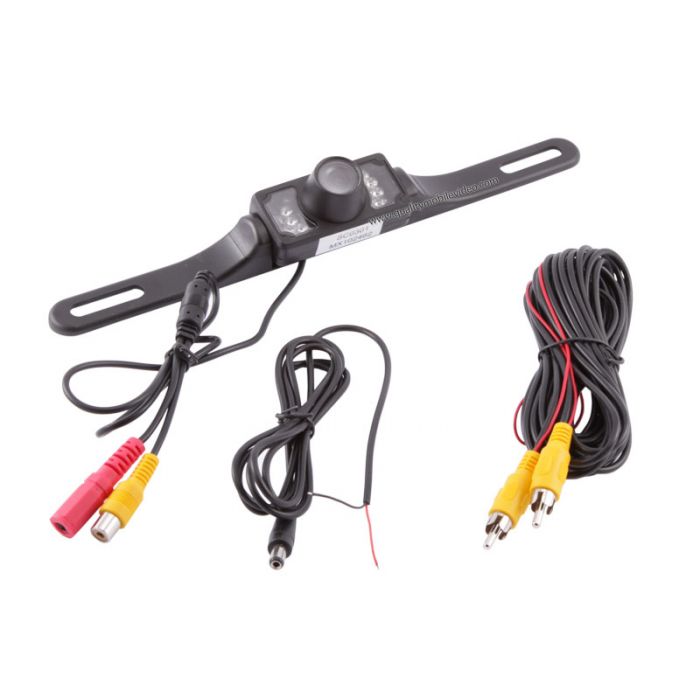

- Camera includes 16 foot RCA cable
- Camera power is typically wired to the reverse light for easy installation

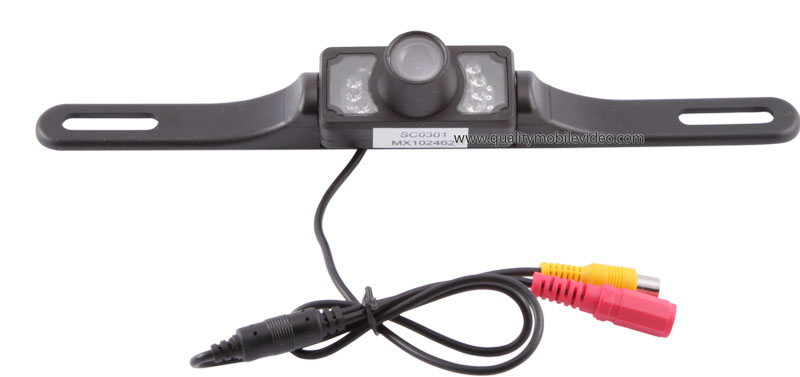

Safesight SC0301 Backup camera
Add a back up camera to any vehicle, the SC0301 is a low cost option that offers good image quality. You can prevent a deadly back up accident for under $100 when you combine this with a monitor.
Viewing angle diagram for backup cameras
It's easy to visualize how much you will be able to see directly behind you with this diagram.
- Technical information
- Resolution: 380 TV lines
- Image sensor: Color CMOS
- Lens: 6mm 92 degree
- Low light illumination: 1.5 Lux @ F1.2
- Temperature: -10–50°C
- Camera dim: 1.3" (H) x 8" (W) x 1.2" (D)
- Inputs and Outputs
- Video output: RCA 1.0 @ 75Ω
- Power supply: DC 12V > 75Ω
- Auto switch PAL/NTSC

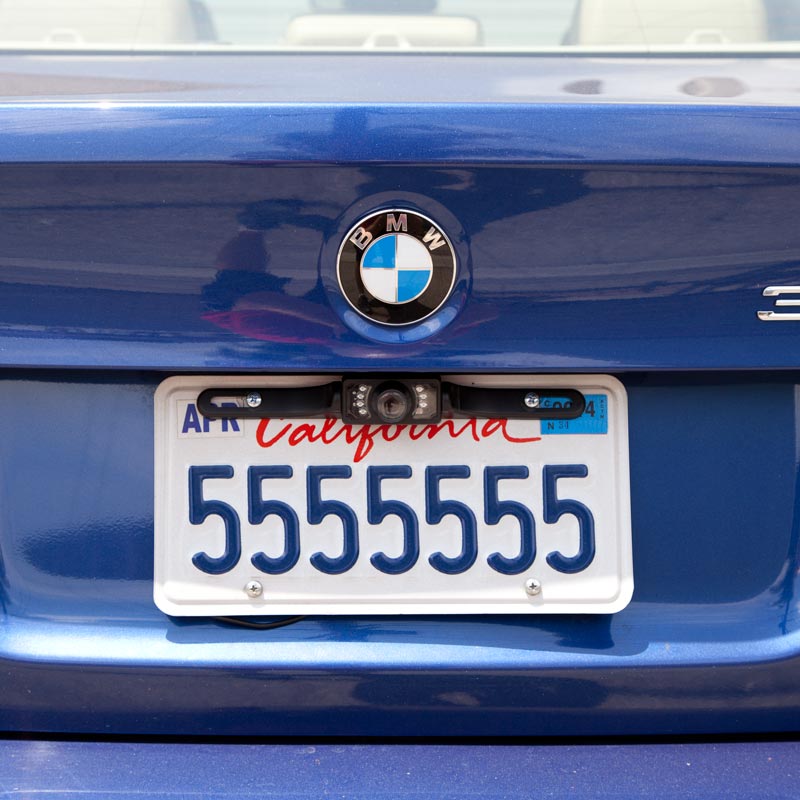

Safesight SC0301 Back up camera installed on a BMW 3 Series
The camera is easily mounted on the license plate utilizing existing screws and make for a very neat installation

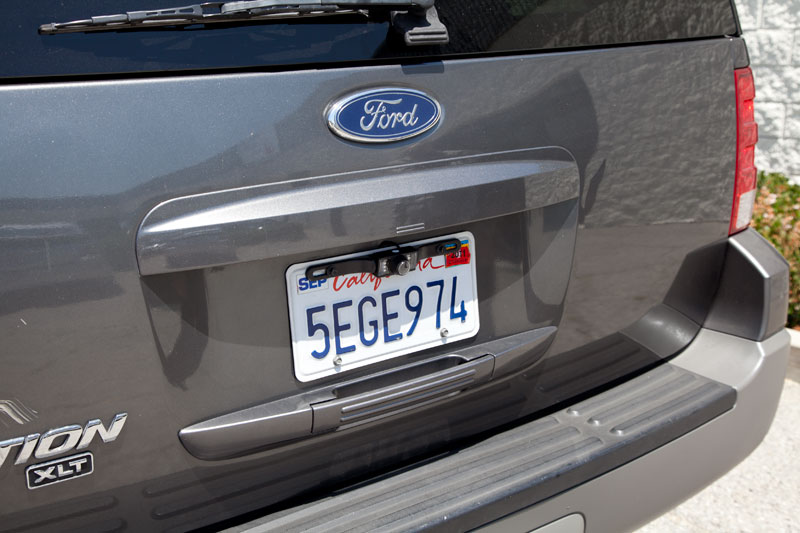

Safesight SC0301 Back up camera installed on a Ford Expedition
The camera is easily mounted on the tailgate license plate utilizing existing screws and make for a very neat installation. The wiring will need to be run with the factory wiring.
| Manufacturer | Safesight |
|---|---|
| Part Number | SC0301 |
| Camera Sensor type | CMOS |
| Back up camera type | License Plate Camera |
| Camera diameter | 1.3" (H) x 8" (W) x 1.2" (D) |
| Viewing Angle | 90 degrees |
| Infrared Illumination | Yes |
| Built in Microphone | Yes |
| Connector Type | RCA Cable |
| Modulation | NTSC and PAL |
| Color | Grey |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
