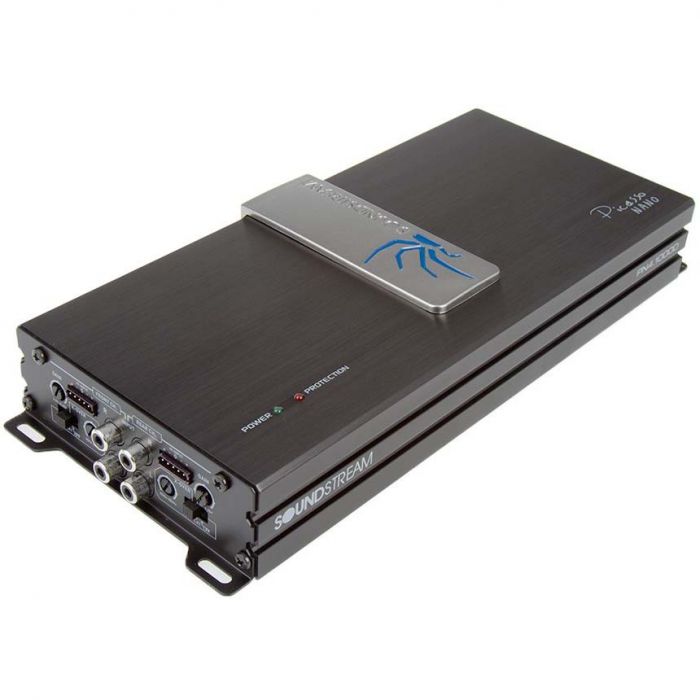

Soundstream PN1.1000D Picasso Nano 1000 Watt 1 Channel Class D Amplifier

$160.99
In stock
Only 1 left
SKU
PN11000D

Key Features

  • 1000 Watt 1 Channel Class D Amplifier
  • 4-ohm / 2-ohm / 1-ohm stable
  • Continuous Power Output (4 Ω): 350 Watts RMS x 1
  • Continuous Power Output (2 Ω): 600 Watts RMS x 1
  • Continuous Power Output (1 Ω): 1000 Watts RMS x 1
  • Includes Bass Control Knob
Unit includes: 1 Channel Amplifier, Installation Hardware, Bass Control Knob, and Instruction Manual

Soundstream PN1.1000D Picasso Nano 1000 Watt 1 Channel Class D Amplifier
    Features:
  • Soundstream 1000 Watt 1 Channel Class D Amplifier
  • Amplifier will operate with 4-ohm / 2-ohm / 1-ohm loads
  • 1 Channel capable
  • Nano-sized compact Aluminum Alloy Heatsink for Optimum Dissipation
  • Blue Soundstream Tarantula LED Illumination
  • Pulse Width Modulated MOSFET Power Supply and High Quality Class D circuitry
  • SMD Technology on Double Sided PCB
  • Direct Short, Thermal, & Overload Circuits Protect Amplifier
  • Nickel plated RCA inputs
  • 200mV-6V High Speaker Level or Low Level RCA Inputs
  • 4 Gauge power wire connections
  • 8 Gauge speaker wire outputs
  • Speaker level input with included molex connector
  • Variable 12dB Low-Pass & Subsonic Crossovers
    Pre-Amp features:
  • Variable Bass Boost (0 - 12 dB)
  • Variable Low-pass electronic crossover (35 - 250 Hz)
  • Variable Subsonic electronic crossover (10 - 50 Hz)
    Inputs and Outputs:
  • One-channel operation (2-Channel input)
  • Nickel-plated 1 Channel RCA level inputs
  • Input Sensitivity Low level: 200 mV - 6 V
    Max Power Output:
  • Total Power Output: 1000 Watts
    RMS Power Output:
  • Continuous Power Output (1 Ω, ≤ 1% THD+N): 1000 W x 1
  • Continuous Power Output (2 Ω, ≤ 1% THD+N): 600 W x 1
  • Continuous Power Output (4 Ω, ≤ 1% THD+N): 350 W x 1
    Dimensions:
  • Overall Dimensions: 1.5 inch (H) x 10.25 inch (L) x 4.75 inch (W)
More Information
Manufacturer Soundstream
Part Number PN1.1000D
Amplifier Topology Class Class D
Number of Channels 1 Channel
Total RMS Power at 1 ohm 1,000.00
Total RMS Power at 2 ohm 600.00
Total RMS Power at 4 ohm 350.00
RMS Output per Channel (x1 at 4 ohms) 350.00 Watts
RMS Output per Channel (x2 at 4 ohms) 0.00 Watts
RMS Output per Channel (x4 at 4 ohms) 0.00 Watts
Total Peak Power Output 1,000.00 (Watts)
Amplifier Bridging Not Bridgable
Minimum Impedance in Bridged Mode Not Bridgeable
Minimum Impedance in Un-Bridged Mode 1 ohm
Strappable Amplifier No
Strappable Power Output 0
RCA Pre-amp Audio inputs 1 Pair
RCA Pre-amp Audio outputs None
Preamp voltage 200 mV - 6 V
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain Yes
Built in Crossover Low-pass, Sub-sonic
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge 4 Gauge
Overall Height 1.50 inches
Overall Length 10.25 inches
Overall Width 4.75 inches
CEA2006 Compliant No
UPC Code 7.09483E+11
Return period 30 days
Exchange period 30 days
