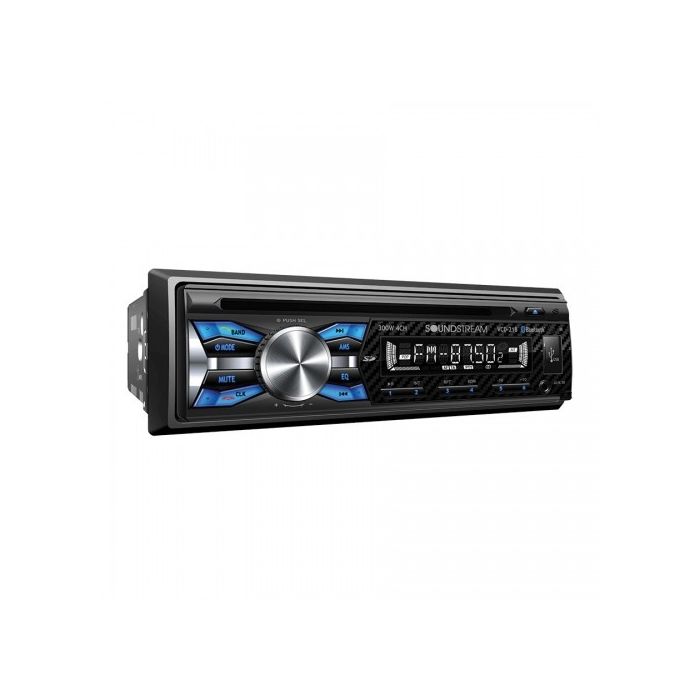

Soundstream VM-21B Single-DIN In-Dash Digital Media Receiver with USB and Bluetooth
Expert Knowledge
Talk to a specialist
- Single-DIN in-dash Digital Media Receiver
- Bluetooth V3.0 Hands Free Calling from Enabled Phone
- A2DP MP3 Audio Playback from Enabled Device
- Variable Color Illumination
- AM/FM radio tuner
- Playback from 32GB USB of MP3 & WMA
- AUX Audio Input for Personal Media Devices
Soundstream VM-21B Single-DIN In-Dash Digital Media Receiver with USB and Bluetooth
-
Features:
- Single DIN In-Dash CD receiver
- Bluetooth V3.0 Hands Free Calling from Enabled Phone
- A2DP MP3 Audio Playback from Enabled Device
- AM/FM radio tuner
- Detachable faceplate (carrying case included)
- Audio Playback from USB of MP3 & WMA up to 32GB
- AUX Audio Input for Personal Media Devices
- 300w 4ch MOSFET Speaker Outputs
- Multi-Region FM Frequency Stepping
- Custom & Pre-Set Equalizer Settings
- Remote Control Included
- Variable Color Illumination
- Auto dimmer and brightness controls for illuminated buttons and display
-
Media Playback features:
- Plays USB drives loaded with MP3, WMA music files
- MP3 ID3 tag information, display artist and song information
- Includes Supertuner IIID AM & FM tuner with 24 station 6 presets memory
-
Audio features:
- Controls: Volume, Fader, Bass, Treble, Balance
- 13-band Graphic equalizer with preset and custom options
- Variable subwoofer level control with selectable Low-Pass digital crossover filter
- High-Pass filter with variable slopes and crossover frequencies
- Bass Boost
- Loudness: 3 Modes
- Built in time-alignment
- Listening Position
- Advanced Sound Retriever
- Built-in MOSFET 50W x 4 Amplifier
-
Bluetooth features:
- Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- External microphone with 10 foot cord for optimal placement
- Bluetooth 2.0+ certified
- Compatible with most Bluetooth phone that support Bluetooth 2.0 and above
-
Inputs and outputs:
- 3 - Sets of 2.5V preamp outputs (front, rear and subwoofer)
- 1 - Front USB connection
- 1- Front 3.5mm Audio connection for connection to multiple devices
- 1 - Steering wheel control requires ASWC steering wheel interface
- Double DIN chassis
- Dimensions: 7"W x 7-1/8"D x 2-15/16"H
-
Dimensions:
| Manufacturer | Soundstream |
|---|---|
| Part Number | VM-21B |
| Chassis Size | Single DIN |
| Illumination color | Blue |
| Faceplate features | Detachable face plate |
| Disc Playback | No |
| Anti-Shock | No |
| Built in Bluetooth | Built in Bluetooth |
| NFC (Near Field Communication) | No |
| Radio Data Service - RDS | Yes |
| Satellite Radio | No |
| Front mounted auxiliary input | 3.5 mm audio input |
| USB input | Yes |
| Audio Formats | Mpeg-3, WMA |
| RCA Pre-amp Audio outputs | 3 Pairs (Front, Rear, Sub) |
| Preamp voltage | 2 volts |
| Steering Wheel Control | Yes, requires external module |
| Built in Crossover | High-pass, Low-pass |
| Warranty | 1 Year |
| UPC Code | 709483052222 |
| Return period | 30 days |
| Exchange period | 30 days |
