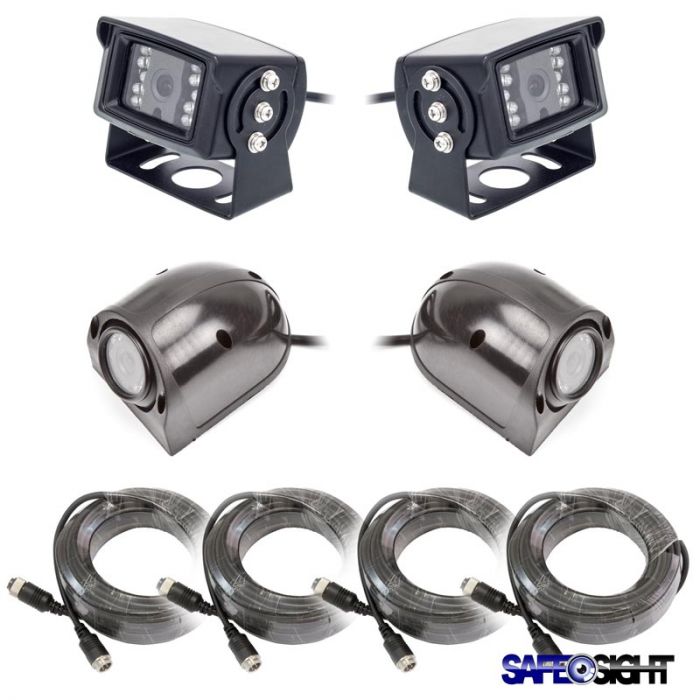

Safesight SS-CAM-PKG-1 Quad Camera package - Front, Left, Right, and Rear cameras
$556.99
In stock
SKU
SS-CAM-PKG-1
Expert Knowledge
Talk to a specialist
- (2) - SC0104 Cameras
- (2) - TOP-SS-5607R Side mount cameras
- (1) 60 foot cable
- (2) 30 foot cables
- (1) 15 foot cable
- Unit includes:
- (2) - SC0104 Cameras
- (2) - TOP-SS-5607R Side mount cameras
- (1) 60 foot cable
- (2) 30 foot cables
- (1) 15 foot cable
Safesight Quad Camera package - Front, Left, Right, and Rear cameras

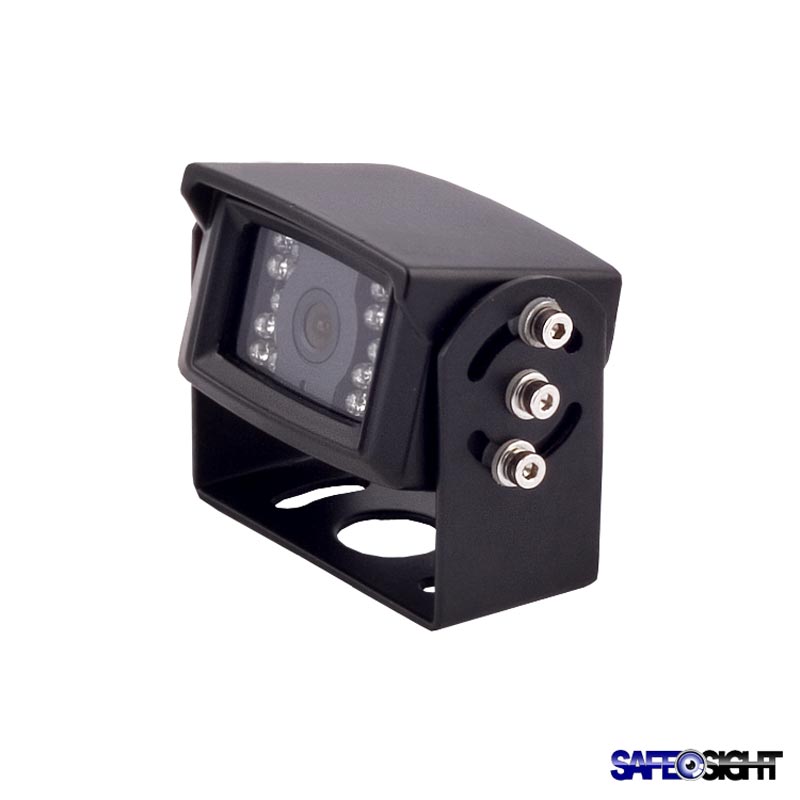

- SC0104 Front and Rear Camera specifications:
- High Resolution Back Up Camera with infrared illumination
- Selectable reverse image for rear view or front view - Rear mounted set screw changes mode
- Completely adjustable angle with three retaining screws per side
- 1/4" CCD Image Sensor
- NTSC video output
- 120 degrees Wide Angle Camera - Blind Spot reduced
- Minimum Illumination: 0Lux (LED On)
- IR Infrared 18 LEDs for 32 foot Night Vision distance
- Power Supply: DC 12V
- Waterproof Rating: Ip67
- Aluminum Alloy Housing
- Square style casing
- 4 Pin Connector - RCA Adapters are sold separately
- Available in White see part number SC0104MW
- Specifications:
- Effective Pixels: 510x492
- 420 TV lines
- Operating Temperature: -20 degrees ~ +70 degrees C (RH 95% Max)
- Lens: F = 2.5mm/ 1.7mm
- Dimensions:
- Dimensions: 3-5/8" (W) x 2-5/8" (D) x 2-5/8" (H)
-

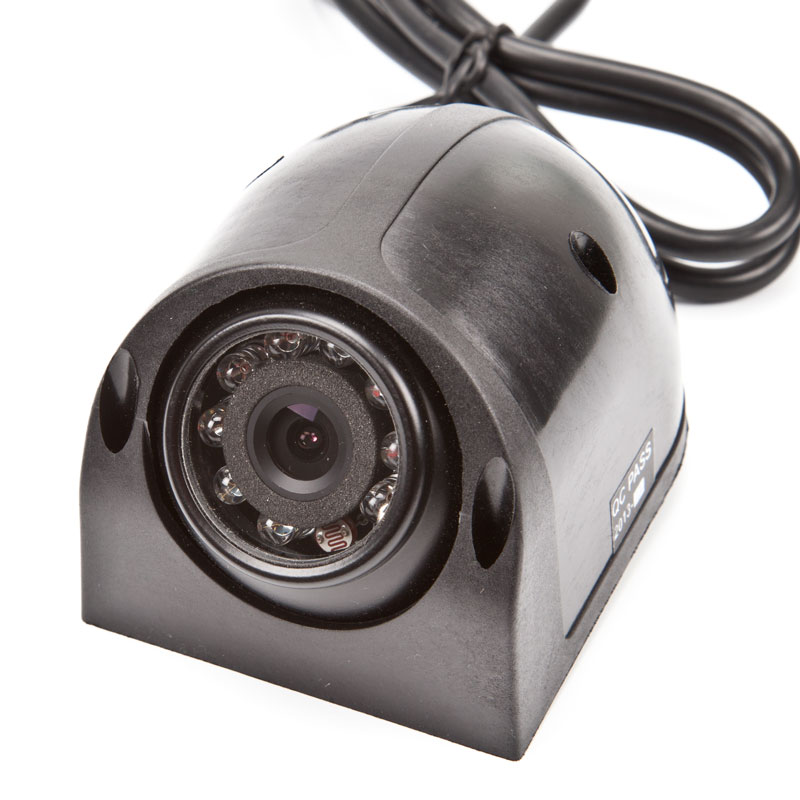

TOP-SS-5607R Side Mount Camera specifications:
- High Resolution Back Up Camera with infrared illumination
- Reverse image for rear facing side mount view
- Completely adjustable angle with six retaining screws per side
- 1/3" CCD Image Sensor
- NTSC video output
- 120 degrees Wide Angle Camera - Blind Spot reduced
- Minimum Illumination: 0Lux (LED On)
- IR Infrared 9 LEDs for 16 foot Night Vision distance
- Power Supply: DC 12V
- Waterproof Rating: Ip67
- High impact plastic housing
- Square style casing
- 4 Pin Connector - RCA Adapters are sold separately
- Specifications:
- Effective Pixels: 510x492
- 420 TV lines
- Operating Temperature: -20 degrees ~ +70 degrees C (RH 95% Max)
- Lens: F = 2.5mm/ 1.7mm
- Dimensions:
- Dimensions: 3-1/4" (L) x 2-3/8" (H) x 2-1/8" (D)
-

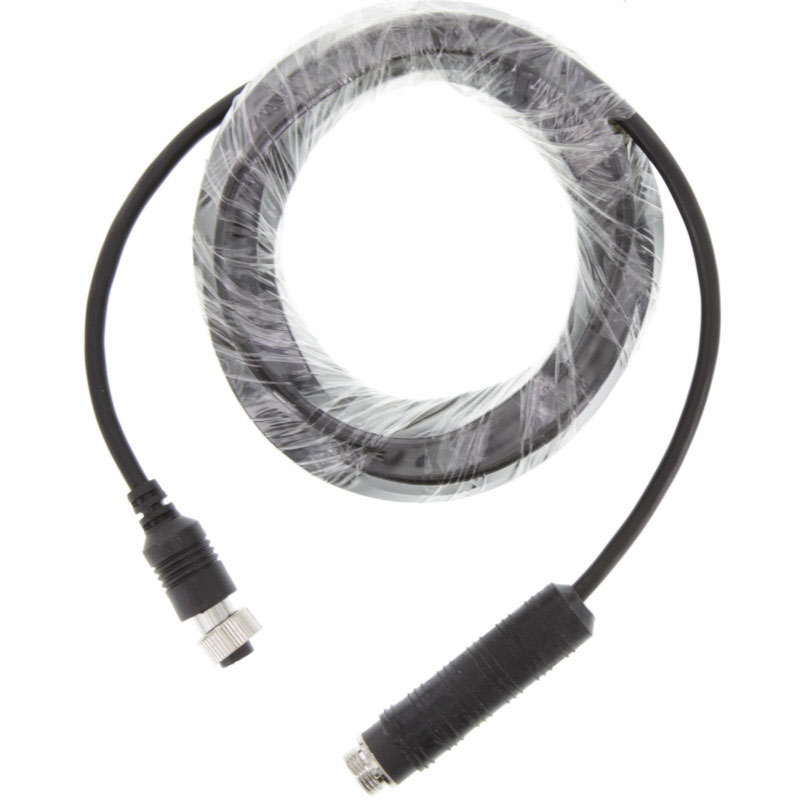

TOP-CBL15 15 foot extension cable:
- Waterproof 15 ft 4 pin screw connector back up camera extension cable
- Rubber boots for connectors to prevent water intrusion
- 1 - Cable included in package
- Waterproof 30 ft 4 pin screw connector back up camera extension cable
- Rubber boots for connectors to prevent water intrusion
- 2 - Cables included in package
- Waterproof 60 ft 4 pin screw connector back up camera extension cable
- Rubber boots for connectors to prevent water intrusion
- 1 - Cable included in package
-
TOP-CBL30 30 foot extension cable:
-
TOP-CBL60 60 foot extension cable:
| Manufacturer | Safesight |
|---|---|
| Part Number | SS-CAM-PKG-1 |
| Camera Sensor type | CCD |
| Reverse Image | Selectable |
| Parking grid lines | Yes |
| Infrared Illumination | Yes |
| Built in Microphone | Yes |
| Connector Type | 4 Pin Connector |
| Modulation | NTSC and PAL |
| Operation Voltage | 12-15 Volt DC |
| Battery Powered | Hard wired |
| Color | Black |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
