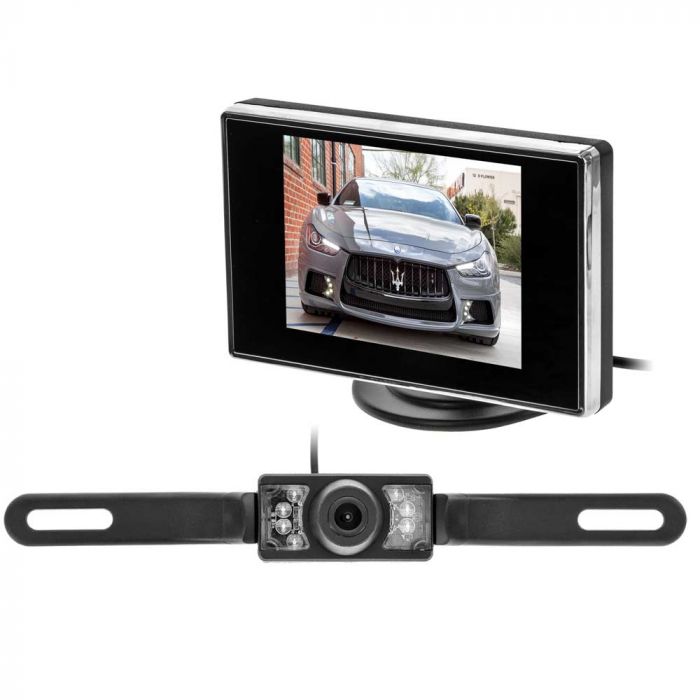

Safesight TOP-SS-BUPKG2 3.5" Backup Monitor with License Plate Backup Camera
$58.99
In stock
SKU
TOP-SS-BUPKG2
Expert Knowledge
Talk to a specialist
- Complete reverse back up camera system
- 3.5" Active matrix TFT LCD Screen
- Plastic bar mount license plate camera
- CCD image sensor for better picture quality
- Parking Assist grid lines for better distance determination
Unit includes: Reverse back up camera, 3.5" LCD Monitor, 18 foot RCA cable with power lead, Hole saw, DC Power cord
Safesight TOP-SS-BUPKG2 3.5" Backup Monitor with License Plate Backup Camera
License Plate Camera
- Monitor Features:
- 3.5" Active matrix TFT LCD Screen
- 2 video inputs
- Video input sense for reverse use, doesn't need a trigger wire run from the reverse light
- Adjustable brightness button on back of display
- Mirror image function button on back of display
- 65 degree adjustable base for many different mounting options
- Attractive aluminum bezel on monitor for modern look
- Monitor dimensions:
- Dimensions without stand: 4 1/8" (W) x 2 15/16" (H) x 5/8" (D)
- Dimensions without stand: 4 1/8" (W) x 4" (W) x 2 1/8" (D)
License Plate Camera
- Camera features:
- Plastic bar mount license plate camera
- CCD image sensor for better picture quality
- Drill bit is included for flush mounting in bumper included
- Parking Assist grid lines for better distance determination
- 18 foot RCA cable with integrated power wire for continuous use, not only for backing up great for trailers
- Mirror image cut wire allows this camera to be used as a front camera or rear camera and have the proper orientation on screen
- Parking grid line cut wire allows camera to display parking grid or for clear image
- 20 degree camera vertical adjustment
- 8 IR LED's for night-vision capability
- CMOS chip for great quality and low cost
- 92 degree horizontal viewing angle
- Nylon reinforced plastic for extra durability
- Camera includes 16 foot RCA cable
- Camera power is typically wired to the reverse light for easy installation
- Technical information
- Resolution: 380 TV lines
- Image sensor: Color CMOS
- Lens: 6mm 92 degree
- Low light illumination: 1.5 Lux @ F1.2
- Temperature: -10–50°C
- Camera dim: 1.3" (H) x 8" (W) x 1.2" (D)
- 648 x 488 CMD resolution imager
- IP67 waterproof rating
- 170 degree viewing angle
- Inputs and Outputs
- (1) - 12 volt power connector (Red) center pin positive
- (1) - RCA connector Video output
- Camera dimensions: 3/4" (Diameter) x 15/16" (Length)
- 18mm drill hole
- Camera dimensions:
| Manufacturer | Safesight |
|---|---|
| Part Number | TOP-SS-BUPKG2 |
| LCD Screen Size | 3 inch - 4 inch |
| Return period | 30 days |
| Exchange period | 30 days |
