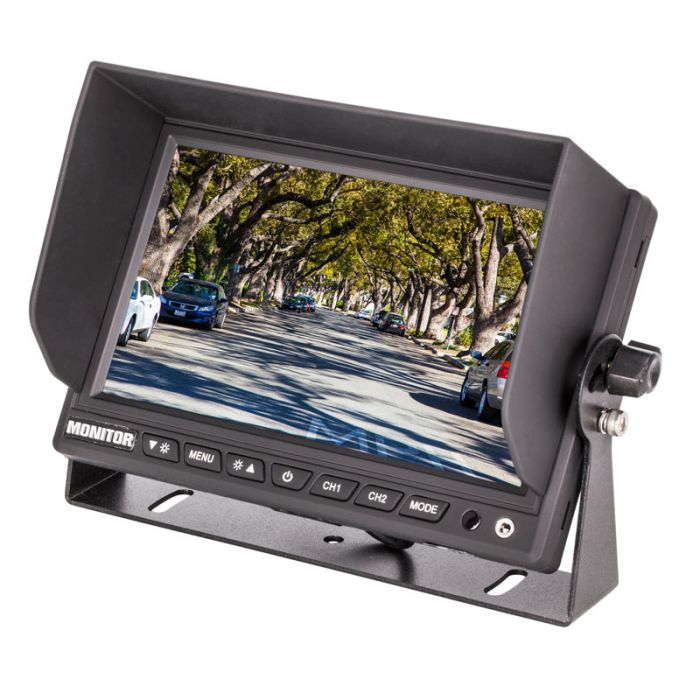

Safesight TOP-SS-D7004 7 Inch LCD Monitor with 2 - 4 Pin Audio and Video inputs

Safesight TOP-SS-D7004 7 Inch LCD Monitor with 2 - 4 Pin Audio and Video inputs

Safesight TOP-SS-D7004 7 Inch LCD Monitor - With sun shade installed

More Views

Safesight
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Safesight TOP-SS-D7004 Product Highlights

  • 7" Diagonal LCD monitor
  • 2 - 4 pin Audio / Video inputs
  • 1 - 3.5mm Front audio / video input
  • Trigger wire
  • Resolution 800 x 480 RGB
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together

Overview

Unit includes: 7 inch LCD monitor, Video input and power harness, Mounting stand, Sun visor, Allen key, and Remote Control

Safesight TOP-SS-D7004 7 Inch LCD Monitor with - (2) - 4 Pin Audio / Video inputs features:
  • 7" Diagonal LCD monitor
  • 2 - Composite Audio / Video inputs - 4 pin connectors. Can be converted to RCA cables with adapters (Sold separately)
  • 1 - 3.5mm Front Audio / Video input
  • Can be used with cameras that have microphones
  • PAL and NTSC auto switching
  • Trigger wire for back up or other auto turn on
  • Image rotation feature that allows you to mount the monitor in any direction and flip the image.
  • High strength commercial grade U-bracket mount for use in rugged applications
  • Removable sun shade for use in high glare situations
  • New low-power draw LED backlight
  • Blue back-lit soft touch buttons
  • Brightness: 300 NIT
  • Voltage: 12Vdc - 24Vdc
  • Built in speaker with volume control
  • Power consumption: 700mA @ 12Vdc
  • Resolution 800 x 480 RGB
  • Resolution 800 x 480 RGB
  • Dimensions without sun visor: 8-1/4" (W) x 5-1/2" (H) x 3/4" (D)
  • Dimensions with sun visor: 8-1/4" (W) x 5-1/2" (H) x 2-3/4" (D)

Technical Specifications

Manufacturer Safesight
Part Number TOP-SS-D7004
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 800 x 480
Widescreen Display 16:9 Widescreen Display
LCD back light type LED
LCD Screen Brightness 300 Nit
Swivel Screen Yes
Touchscreen No
Modulation NTSC and PAL
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock No
Headphone Transmitter No
Headphone Jack No
Built in FM Modulator No
Built in Speakers No
HDMI input No
VGA input No - VGA input
Audio Video inputs 2 Audio Video Inputs
Audio Video Outputs No
Composite video input Yes
Front mounted auxiliary input 3.5 mm audio/video input
USB input No
SD Card input No
Phone Mirroring N/A
Housing material Plastic
Slide track on back Yes
Mounting thread for stand mount Yes
Mount included Yes, Pedistal stand
Trigger wire Yes
Image Flip Function Image rotate
Quad Screen No
Cigarette Lighter Cord Included No
Operation Voltage 12 - 24 Volt DC
Ac Adapter included No
Headrest Shroud included No
Headrest Type No
Zipper security cover No
Built in Game System No
Wireless Remote Control Yes
Monitor Color Black
Color Black
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code No
