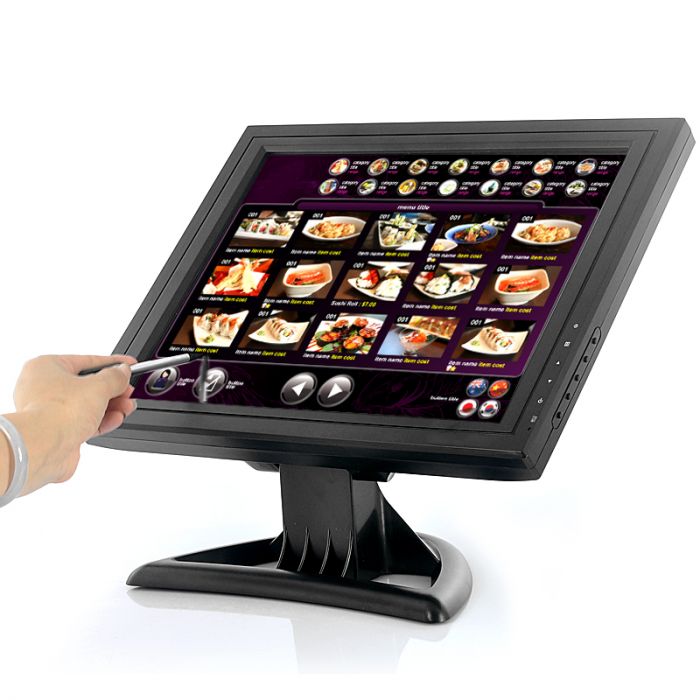

Discontinued - Quality Mobile Video Clarus TOP-SS-LCD15 15 Inch Touchscreen LCD Monitor with VGA, AV, HDMI - 12 Volt power

Rating:
84 % of 100
$267.99
Out of stock
SKU
TOP-SS-LCD15

Key Features

Discontinued - Quality Mobile Video Clarus TOP-SS-LCD15 15 Inch Touchscreen LCD Monitor with VGA, AV, HDMI - 12 Volt power
Unit includes: 15 inch monitor, Mounting stand, Remote Control , Driver Disc, USB cable, VGA cable, 3.5mm audio cable, AC power adapter, Stylus, and Instruction manual

Quality Mobile Video Clarus TOP-SS-LCD15 15 Inch Touchscreen LCD Monitor with VGA, AV, HDMI - 12 Volt power features:
    General Specifications
  • 15 Inch LCD Touchscreen Monitor
  • 4 Point Resistive Touchscreen Display
  • Native Screen Resolution: 1024 x 768 (VGA)
  • Aspect Ratio: 4:3
  • Brightness: 500cd/m2
  • Contrast: 500:1
  • Viewing Angle: 80 Degrees/80 Degrees; 80 Degrees/80 Degrees (Left/Right; Up/Down)
  • Video Signal Input: 0.7 - 1.4Vp-p/75 Ohms
  • VGA Signal Input: H:30 - 60KHz, V:60-75Hz
  • Speaker: >250mW/8 Ohms
  • Color System: PAL-4.43, NTSC-3.58
  • Power Source: DC9-15V
  • Signal Input: PC, VGA, AV1, AV2, HDMI 1.2
  • Power Consumption: 1200MA
  • Working Temperature: -10 to +60 °C
  • Storage Temperature: -30 to +65 °C
  • Input: VGA
  • Input: AV1
  • Input: HDMI
  • Remote Controller: Yes
  • Supported Operating Systems for Touchscreen Software: Windows 98SE, XP, Vista, Windows 7, Linux, MAC
  • Certification: CE, FCC, RoHS
  • Dimensions: 14-1/2" (L) x 13-3/4" (H) x 1-3/4" (D)

  • Menu controls
  • Touchscreen Monitor Internal Menu Specs
  • Color: Brightness, Contrast, Color Temperature
  • Adjust: Auto Config, H Position, V Position, Phase, Clock
  • OSD: H position, V Position, OSD Time Out, Transparent
  • OSD: Languages: English, Chinese, French, Italian, German, Spanish, Japanese, Russian
  • Settings: Reset, Display Ratio, LR, UD
  • Sound: Volume Control

  • Features
  • User friendly and Low Energy Consumption
  • Compatible with VESA60 & VESA100 mounts
  • Excellent for use with POS and other touchscreen dependent applications
  • 12 volt so can be used in mobile computing applications, includes home power adapter for connection with wall plug
  • If you need to make use of the LCD touch screen monitor somewhere else, is can be easily detached from the base and taken out of the car.
  • 4, 9 and 25 point touchscreen calibration
  • Certification: CE, FCC, RoHS
More Information
Manufacturer Quality Mobile Video
Part Number TOP-CVVG-E281
LCD Screen Size 17 inch - 18 inch
Native Screen Resolution 1280 x 1024
Widescreen Display 4:3 Normal Aspect Ratio
LCD back light type CCFL
LCD Screen Brightness 500 Nit
Swivel Screen Yes
Touchscreen Yes
Modulation NTSC and PAL
Headphone Transmitter No
Headphone Jack No
Built in FM Modulator No
Built in Speakers No
HDMI input Yes
VGA input Yes - VGA input
Audio Video inputs 1 Audio Video Input
Composite video input Yes
USB input No
SD Card input No
Housing material Plastic
Slide track on back No
Mounting thread for stand mount No
Mount included Yes, Pedistal stand
Operation Voltage 12-15 Volt DC
Ac Adapter included Yes
Headrest Shroud included No
Built in Game System No
Wireless Remote Control Yes
Monitor Color Black
Color Black
Warranty 1 Year
Return period 30 days
Exchange period 30 days
