Boyo VTK210C Surface Mount License Plate Ledge Rear View Hole Camera

$52.99
In stock
Only 1 left
SKU
VTK210C

Key Features

  • Surface Mount Camera
  • 170 Degree Wide Angle
  • Camera can be mounted on any overhang
  • Low Light Sensitive
  • 1/3" CMOS image sensor for excellent picture quality and low light capability

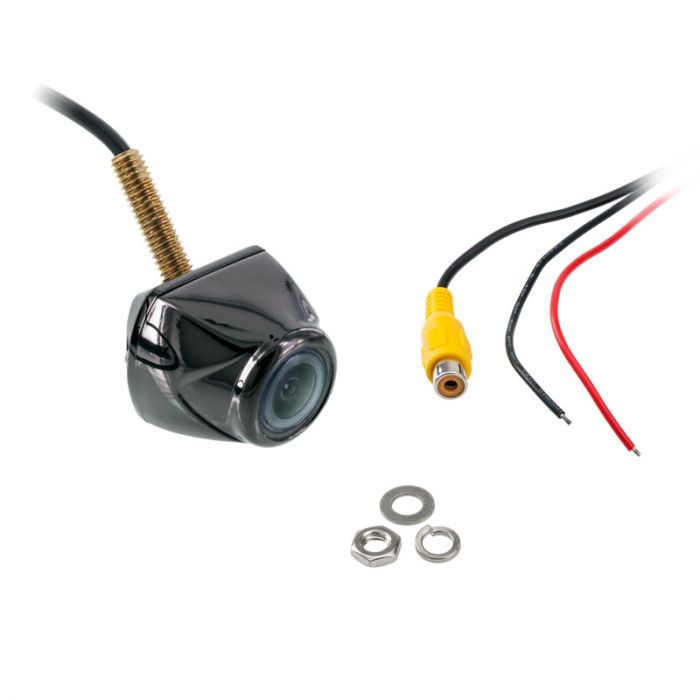

Unit includes: Back up camera, Drill bit, Wiring harness, and Instruction manual

Boyo VTK210C Surface Mount License Plate Ledge Rear View Hole Camera
    Features:
  • Universal back up camera that can be surface mounted into ledge or over hang with the threaded stud
  • 1/3" CMOS image sensor for excellent picture quality and low light capability
  • 17-ft male to male RCA video cable
  • Threaded mount can easily be drilled in and single nut to tighten
  • Wide 170° viewing angle
    Quick specs
  • Total pixels: 720 x 480
  • Resolution: 420 TV lines
  • Min illumination: 0.1 LUX
  • Auto image adjustment
  • Video output: 1.0Vpp-75Ω
  • Power supply: DC 12V 200 mA
    Dimensions
  • 1-3/4" (Depth) x 1-1/2" (W) x 1-1/2" (H)
More Information
Manufacturer Boyo
Part Number VTK210C
Camera Sensor type CMOS
Back up camera type Surface Mount Camera
Camera diameter 1/3 inch
Viewing Angle 170 degrees
Wireless Transmission Wired connection
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination No
Built in Microphone No
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage 12-15 Volt DC
Battery Powered Hard wired
Color Black
Warranty 1 Year
UPC Code 689076352710
Return period 30 days
Exchange period 30 days
Write Your Own Review
You're reviewing:Boyo VTK210C Surface Mount License Plate Ledge Rear View Hole Camera
Your Rating
Customer Questions
How do I add a cameras or a multi-camera system to my factory radio display?

This can be done by using a screen interface or add-a-camera harness.
