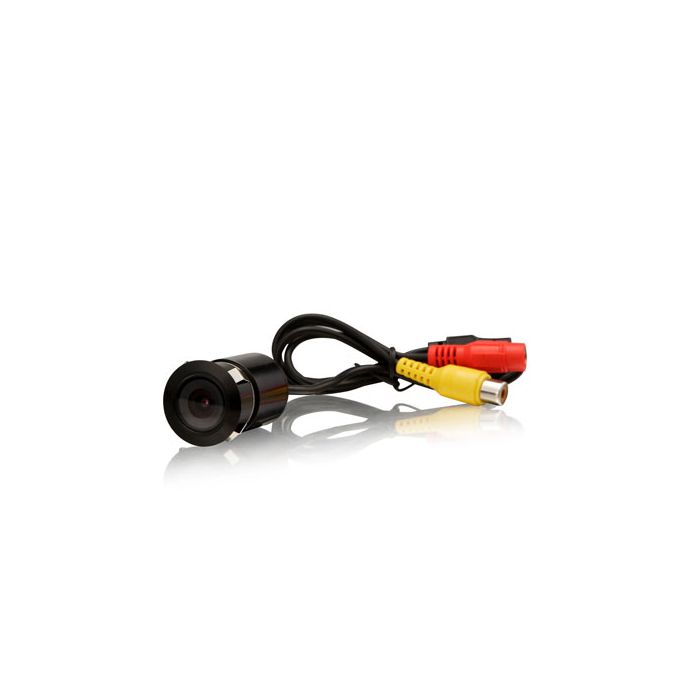

Boyo VTK301 Key hole back up camera

Boyo VTK301 Key hole back up camera

Boyo VTK301 Key hole back up camera

More Views

Free Shipping on orders $50+

Overall Rating 0 (Based on 0 reviews)

Boyo VTK301 Product Highlights

  • 1/4" DSP Color CMOS
  • Flush Mount Back up Camera
  • 120 Degree Wide Angle
  • Low Light Sensitive
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


Unit includes: Key hole back up camera, Power cable, Mounting ring, Nut, and Instruction manual

Boyo VTK301 Key hole back up camera
  • Weatherproof applicable for outdoor security or car rear view vision
  • 1/4" DSP Color CMOS
  • 380,2011, TVL Horizontal Resolution
  • Reverse Image
  • Waterproof IP67
  • 0.5 LUX
  • Imager: 1/4" DSP Color CMOS
  • Effective Pixels: 656 x 492
  • Horizontal resolution: 380,2011, TV Lines
  • Viewing Angle: 120˚ wide viewing angle
  • Min.Illumination: 0.5 LUX
  • Video Output: RCA connector, 1.0 Vp-p, 75 ohm
  • Current consumption: 50mA, Max 300mA
  • Power Supply: DC12V +/- 10%
  • Operating Temp: -4˚ F~122˚ F ( -20˚ C~ + 50˚ C )
  • Storage Temp: -40˚ F~176˚ F ( -40˚ C~ + 80,2011,˚ C )
  • Humidity: Within 90% RH
  • Dimensions: 1-1/2" (L) x 7/8"(D)

Instruction manual

Technical Specifications

Manufacturer Boyo
Part Number VTK301
Camera Sensor type CMOS
Back up camera type Flush Mount Key hole camera
License Plate Camera Type No
Camera sensor diameter No
Viewing Angle 170 degrees
Wireless Transmission No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination No
Built in Microphone No
Connector Type RCA Cable
Modulation No
Operation Voltage No
Battery Powered No
Cigarette Lighter Cord Included No
Color Black
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code No
