Boyo VTK380HD Micro Rotating Ball Type CMOS Camera

Boyo VTK380HD Micro Rotating Ball Type CMOS Camera

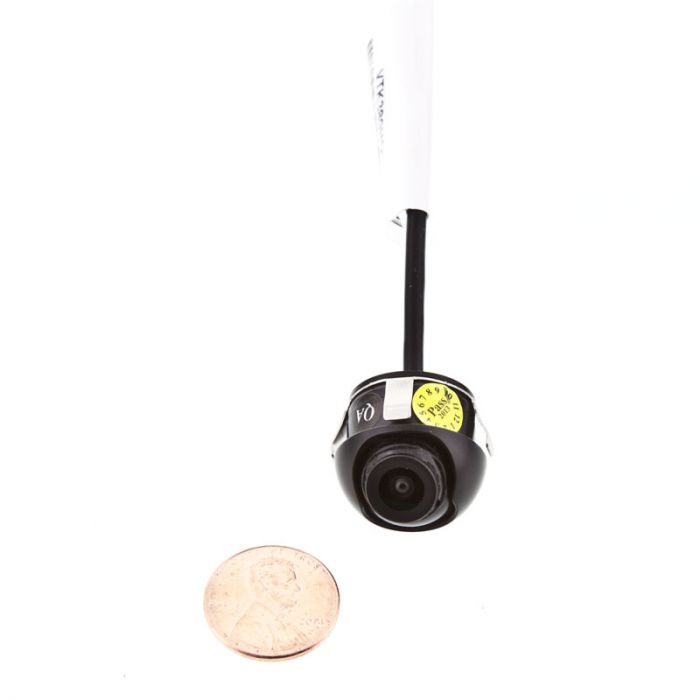

Boyo VTK380HD Micro Rotating Ball Car Camera - Camera detail

More Views

Ships Free!

Overall Rating 4.2 (Based on 1 reviews)

Boyo VTK380HD Product Highlights

  • Rotating Ball Camera
  • 170 Degree Wide Angle
  • Rotate a full 120 degrees
  • Low Light Sensitive
  • Selectable reverse image for rear view or front view - cut wire changes mode
  • Cut wire for parking grid lines or no parking grid lines
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together


Unit includes: Rotating ball camera, 15 foot RCA cable, 5 foot power harness, and Drill bit

Boyo VTK380HD Micro Rotating Ball Type CMOS Camera features:

  • 1/4" HD CMOS Camera Rotation Ball-type camera
  • Camera can rotate a full 120 degrees for vertical adjustment within the housing
  • Drill bit included for perfect hole size
  • Cut wire for reverse or non-reverse image
  • Cut wire for parking grid lines or no parking grid lines
  • 520 TV Lines
  • NTSC video output
  • 800 x 533 effective pixels
  • Minimum Illumination: 0.05 lux
  • Waterproof IP67
  • 170 degrees viewing angle
  • Overall Dimensions: 3/4" (D) x 7/8" (H)
  • Dimensions when installed: 3/4" (D) x 1/2" (H)
  • Power source: 9VDC - 16VDC

Technical Specifications

Manufacturer Boyo
Part Number VTK380HD
Auto Dimming No
Camera Sensor type CMOS
Back up camera type Flush Mount Key hole camera
License Plate Camera Type No
Camera diameter 1/4 inch
Viewing Angle 170 degrees
Wireless Transmission Wired connection
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Selectable
Parking grid lines Yes
Infrared Illumination No
Built in Microphone No
Trigger wire No
Auto on/off No
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage 12 - 15 Volt DC
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color Black
Case included No
Built in Speakers No
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code 794504973150
