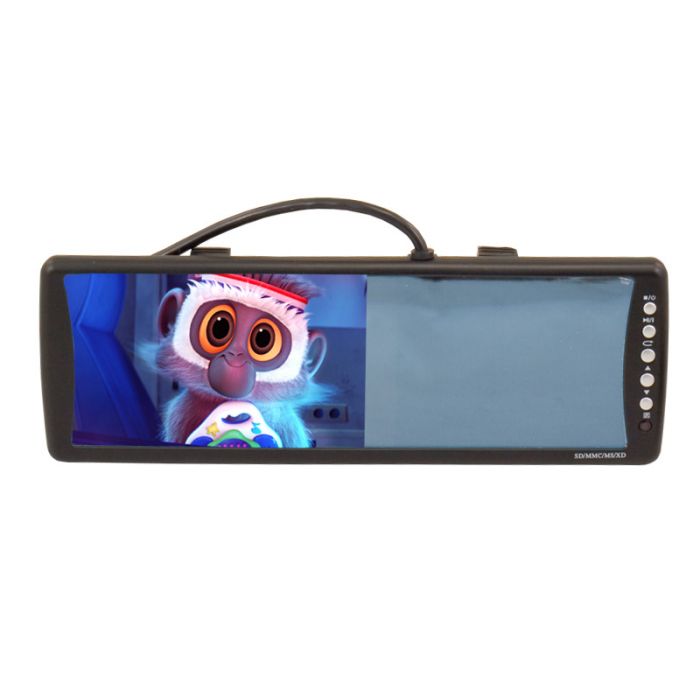

Boyo VTM701M 7 inch rear view mirror monitor
More Views
Boyo
Ships Free!
Boyo VTM701M Product Highlights
- Large 7" LCD Display
- Clip On Mirror for Universal Application
- SD Card Slot
- Great Resolution
- Dual Video Inputs
Overview
Unit includes: Remote Control
Boyo VTM701M 7 inch Rear View Mirror Monitor
Boyo VTM701M 7 inch Rear View Mirror Monitor
- Screen Size: 7" Color TFT
- Resolution: 1440(W) x 234(H)
- Includes Remote
- 2 AV Input Select
- Movie Player
- Picture Viewer
- MP3 Player
- Audio Output
- Clips onto existing rear view mirror
- Memory Card Player
- Supports SD Cards. Plays MP3, MP4, AVI, WMA, and JPEG files.
- FM Modulator with stereo audio output (FM: 88.3MHz or 87.9MHz)
- Auto Image on with reverse:Auto reverse wire will trigger AV2 input
- SD Card Slot
- System: PAL/NTSC
- Nominal Voltage: 9-15V
- Power Consumption: 9W Max
- Operating Temperature: -20°C ~ +65°C
- Product Manual
Technical Specifications
| Manufacturer | Boyo |
|---|---|
| Part Number | VTM701M |
| LCD Screen Size | 7 inch - 8 inch |
| Native Screen Resolution | 1440 x 234 |
| Widescreen Display | 16:9 Widescreen Display |
| LCD back light type | No |
| LCD Screen Brightness | 275 Nit |
| Swivel Screen | No |
| Touchscreen | No |
| Modulation | NTSC and PAL |
| Built-in DVD Player | No |
| Dual DVD capable | No |
| Last Position Memory | No |
| Anti-Shock | No |
| Headphone Transmitter | No |
| Headphone Jack | No |
| Built in FM Modulator | Yes |
| Built in Speakers | No |
| HDMI input | No |
| VGA input | No |
| Audio Video inputs | 2 Audio Video Inputs |
| Audio Video Outputs | 1 Audio/Video output |
| Composite video input | No |
| Front mounted auxiliary input | No |
| USB input | No |
| SD Card input | Yes, SD Card |
| Phone Mirroring | N/A |
| Housing material | No |
| Slide track on back | No |
| Mounting thread for stand mount | No |
| Mount included | No |
| Trigger wire | Yes |
| Image Flip Function | Yes, reverse image flip |
| Quad Screen | No |
| Cigarette Lighter Cord Included | No |
| Operation Voltage | No |
| Ac Adapter included | No |
| Headrest Shroud included | No |
| Headrest Type | No |
| Zipper security cover | No |
| Built in Game System | No |
| Wireless Remote Control | Yes |
| Monitor Color | Black |
| Color | Black |
| Overall Height | 0 Inches |
| Overall Length | 0 Inches |
| Overall Width | 0 Inches |
| Warranty | 1 Year |
| UPC Code | No |
Customer Reviews
-
Got universal headrest and did not work
Review by Tommy -
I connected the rear view mirror monitor to a Boyo license plate backup camera so I could tell where the end of the truck was. The installation was fairly straight forward. It did take a little longer than just the straight installation as I added an auxilliary fuse box to wire the backup camera and monitor to. I did not want to hack on the truck wiring harness. (Posted on 6/28/2010)Value Price Install (5 star for easy) Durability Quality
