Metra XSVI-2105-NAV 2006 - and Up GM LAN Bus interface with Navigation outputs
$65.99
In stock
SKU
XSVI-2105-NAV
Expert Knowledge
Talk to a specialist
- Provides all connections to factory wiring and makes installing an aftermarket stereo very easy in select 2006 - and Up LAN-Bus GM vehicles
- Provides accessory output for databus signals (12-volt 10-amp capable output)
- Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
- Interface is designed to be used with factory non-amplified systems or when removing the amplified audio system
- Interface will not retain factory chimes
- Interface will not retain OnStar
- Perfect for use with aftermarket navigation system as interface provides navigation system outputs (parking brake, reverse, mute, V.S.S.) from databus signals
- Pre-wired for ASWC steering wheel interface

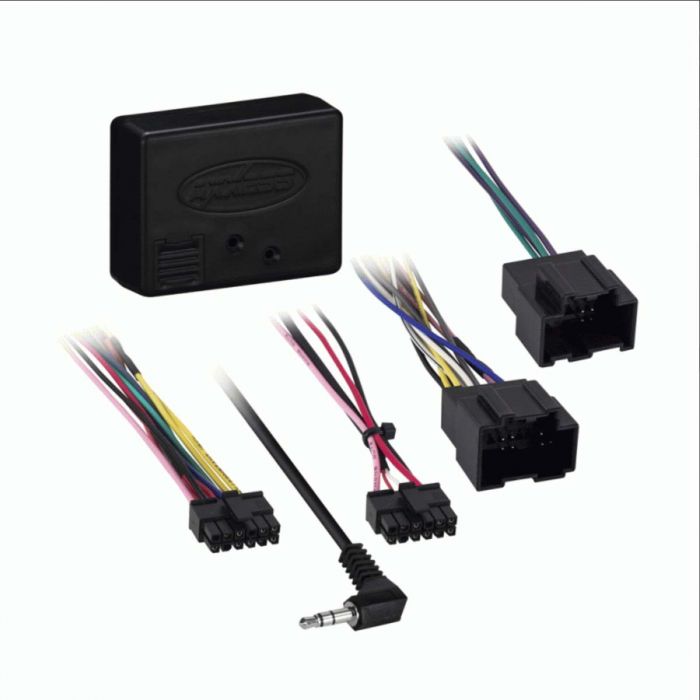

Unit includes: A) Interface, B) Power and speaker harness, and Instruction manual
Metra XSVI-2105-NAV 2006 - and Up GM LAN Bus interface with Navigation outputs
Interface Features:
Connections:
Kit Components:
Tools Required:
Optional parts:
Vehicle Applications:
Buick:
Cadillac:
Chevrolet:
GMC:
Hummer:
Pontiac:
Saturn:
Suzuki:
Metra XSVI-2105-NAV 2006 - and Up GM LAN Bus interface with Navigation outputs
Interface Features:
- Provides all connections to factory wiring and makes installing an aftermarket stereo very easy in select 2006 - and Up LAN-Bus GM vehicles
- Provides accessory output for databus signals (12-volt 10-amp capable output)
- Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
- Interface is designed to be used with factory non-amplified systems or when removing the amplified audio system
- Interface will not retain factory chimes
- Interface will not retain OnStar
- Perfect for use with aftermarket navigation system as interface provides navigation system outputs (parking brake, reverse, mute, V.S.S.) from databus signals
- Includes prewired ASWC Steering wheel interface harness (ASWC Steering wheel interface not included)
- 4 - High level speaker inputs makes connections for aftermarket car stereo's to factory speakers easy
- USB firmware updatable
- Retains balance and fader
Connections:
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange – Radio illumination (+)
- Blue – Antenna turn on
- Light Green – Parking brake
- Blue with Pink Stripe – VSS (Vehicle speed sensor)
- Green with Violet Stripe - Reverse trigger (+)
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
Kit Components:
- A) XSVI-2105-NAV interface
- B) Power and speaker harness
- C) Instruction manual
Tools Required:
- Panel Removal tool
- Cutting tool
- Crimping tool
- Electrical tape
- Crimp connectors
Optional parts:
- Wiring and Antenna Connections (Sold Separately)
- Metra 40-GM10 GM Antenna adapter
- ASWC Steering wheel interface harness
Vehicle Applications:
Buick:
- 2008 - and Up Enclave
- 2006 - 2011 Lucerne
Cadillac:
- 2006 - 2011 DTS (Used to replace factory amplifier)
- 2007 - 2011 Escalade (Used to replace factory amplifier)
- 2007 - 2009 SRX (Used to replace factory amplifier)
Chevrolet:
- 2007 - and Up Avalanche (Non-factory navigation model only)
- 2012 - and Up Captiva Sprot
- 2012 - and Up Cheyenne (Non-factory navigation model only)
- 2007 - 2009 Equinox
- 2008 - and Up Express
- 2006 - 2013 Impala
- 2014 - 2014 Impala Limited
- 2006 - 2007 Monte Carlo
- 2007 - 2013 Silverado (Non-factory navigation model only)
- 2014 - 2014 Silverado 2500 (Non-factory navigation model only)
- 2014 - 2014 Silverado 3500 (Non-factory navigation model only)
- 2007 - 2014 Suburban (Non-factory navigation model only)
- 2007 - 2014 Tahoe (Non-factory navigation model only)
- 2009 - and Up Traverse
GMC:
- 2007 - and Up Acadia
- 2008 - and Up Savanna
- 2007 - 2013 Sierra (Non-factory navigation model only)
- 2014 - 2014 Sierra 2500 (Non-factory navigation model only)
- 2014 - 2014 Sierra 3500 (Non-factory navigation model only)
- 2007 - 2014 Yukon (Non-factory navigation model only)
- 2007 - 2014 Yukon XL (Non-factory navigation model only)
Hummer:
- 2008 - 2009 H2
Pontiac:
- 2007 - 2009 Torrent
Saturn:
- 2006 - 2010 Outlook
- 2008 - 2010 Vue
Suzuki:
- 2007 - 2009 XL-7
| Manufacturer | Metra |
|---|---|
| Part Number | XSVI-2105-NAV |
| Wiring harness function | Replace Factory Radio |
| Warranty | 1 Year |
| UPC Code | 086429179824 |
| Return period | 30 days |
| Exchange period | 30 days |
