DISCONTINUED - Axxess AX-ADXSVI-AU1 Interface Box Harness for 2006 - 2013 Audi Vehicles
$29.99
In stock
Only 1 left
SKU
AX-ADXSVI-AU1
Expert Knowledge
Talk to a specialist
- Facilitates the installation of the AX-ADXSVI interface box in select Audi vehicles
- Provides RAP (Retained Accessory Power)
- Provides navigation outputs like reverse, parking brake, VSS
- Includes a pre-wired ASWC-1 steering wheel interface connector
- 12 volt 10 amp car accessory
Unit includes: AX-ADXSVI Interface Wiring Harness and Instruction manual

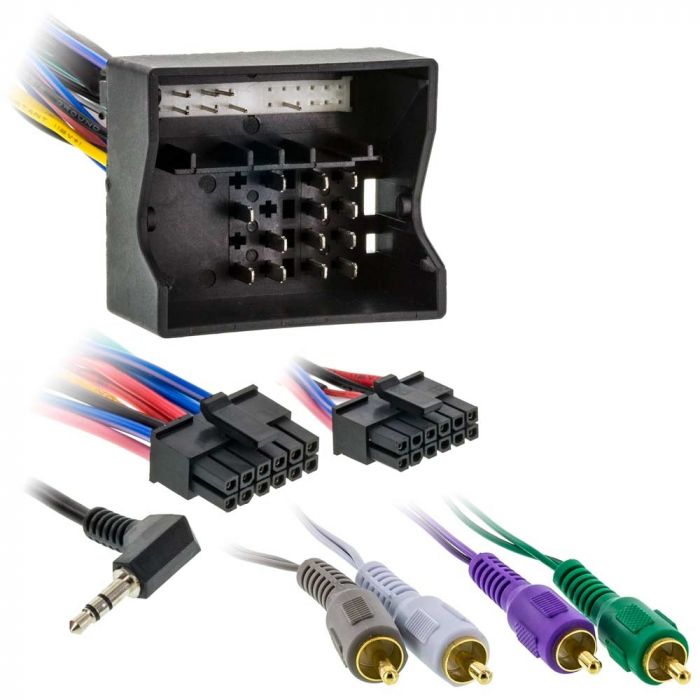

Axxess AX-ADXSVI-AU1 Interface Box Harness for 2006 - 2013 Audi Vehicles
Connections:
Compatible With:
Audi
Axxess AX-ADXSVI-AU1 Interface Box Harness for 2006 - 2013 Audi Vehicles
- Features:
- Allows the user to install the Axxess AX-ADXSVI interface box
- Provides RAP (Retained Accessory Power)
- Provides navigation outputs like reverse, parking brake, VSS, etc., and high level speaker input
- Designed to install an aftermarket car radio into the factory databus systems
- Includes a prewired ASWC-1 steering wheel interface connector
- Provides 12 volt 10 amp car accessory
- Retains balance and fader
- Micro “B” USB updatable
Connections:
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange/White – Dash Light Dimmer/Illumination
- Blue/White – Amplifier turn on
- Brown - Mute connection
- Light green – (-) Parking brake lead
- Blue/Pink – VSS (Vehicle speed sensor)
- Black/Yellow - MOST-Bus volume adjustment
- White RCA - Left Auxiliary input
- Red RCA - Right Auxiliary input
- Green/Purple – (+) Reverse trigger
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
- White RCA - Left front audio
- Gray RCA - Right front audio
- Green RCA - Left rear audio
- Purple RCA - Right rear audio
Compatible With:
Audi
- 2006 - 2013 A3
- 2005 - 2008 A4 with navigation
- 2005 - 2008 RS4 with navigation
- 2005 - 2008 S4 with navigation
- 2006 - 2006 A4 with Symphony Plus or with factory navigation
- 2006 - 2006 RS4 with Symphony Plus or with factory navigation
- 2006 - 2006 S4 with Symphony Plus or with factory navigation
- 2007 - 2008 A4 without navigation
- 2007 - 2008 RS4 without navigation
- 2007 - 2008 A4 without navigation
- 2008 - 2013 TT
| Manufacturer | Axxess |
|---|---|
| Part Number | AX-ADXSVI-AU1 |
| Warranty | 1 Year |
| Vehicle Year | 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013 |
| Vehicle Brand | Audi |
| Vehicle Model | A4, RS4, S4 |
| UPC Code | 086429297863 |
| Return period | 30 days |
| Exchange period | 30 days |
