Safesight SS-CAM-PKG-1 Quad Camera package - Front, Left, Right, and Rear cameras

Safesight SS-CAM-PKG-1 Quad Camera package - Front, Left, Right, and Rear cameras

Safesight SS-CAM-PKG-1 Quad Camera package

More Views

Item sku:SS-CAM-PKG-1
Safesight

Overall Rating 0 (Based on 0 reviews)

Would you recommend this to a friend?

Write a review

Safesight SS-CAM-PKG-1 Product Highlights

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Overview

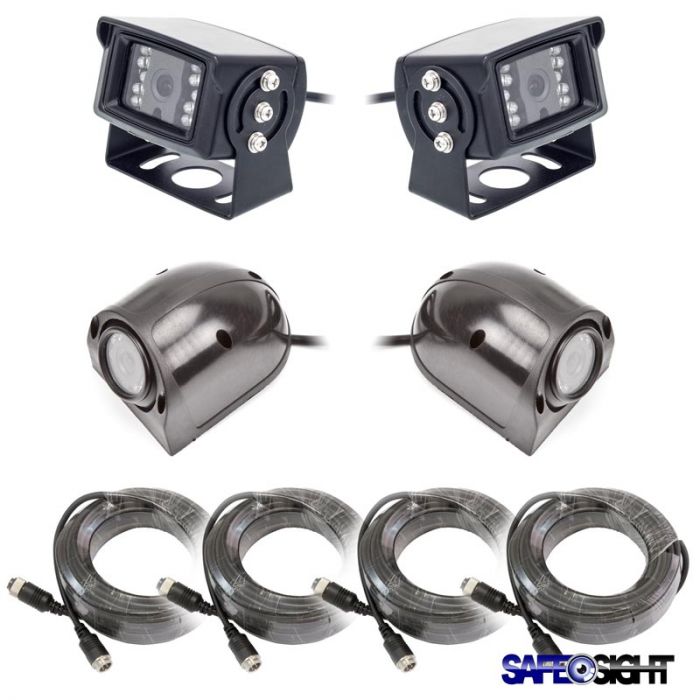

Safesight Quad Camera package - Front, Left, Right, and Rear cameras

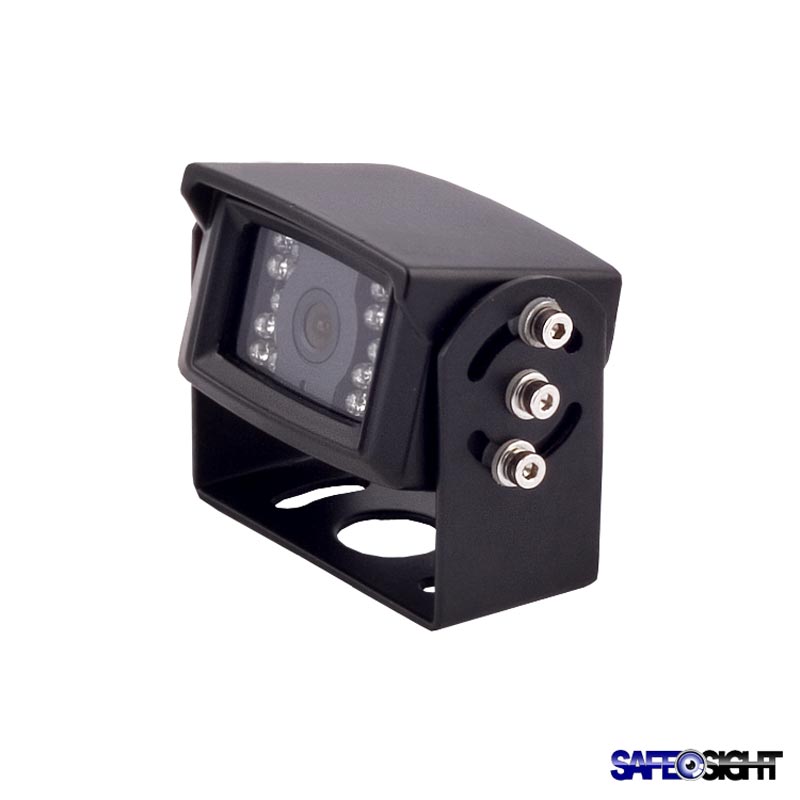

Safesight SC0104 reverse back up camera

    SC0104 Front and Rear Camera specifications:
  • High Resolution Back Up Camera with infrared illumination
  • Selectable reverse image for rear view or front view - Rear mounted set screw changes mode
  • Completely adjustable angle with three retaining screws per side
  • 1/4" CCD Image Sensor
  • NTSC video output
  • 120 degrees Wide Angle Camera - Blind Spot reduced
  • Minimum Illumination: 0Lux (LED On)
  • IR Infrared 18 LEDs for 32 foot Night Vision distance
  • Power Supply: DC 12V
  • Waterproof Rating: Ip67
  • Aluminum Alloy Housing
  • Square style casing
  • 4 Pin Connector - RCA Adapters are sold separately
  • Available in White see part number SC0104MW

    Specifications:
  • Effective Pixels: 510x492
  • 420 TV lines
  • Operating Temperature: -20 degrees ~ +70 degrees C (RH 95% Max)
  • Lens: F = 2.5mm/ 1.7mm
    Dimensions:
  • Dimensions: 3-5/8" (W) x 2-5/8" (D) x 2-5/8" (H)

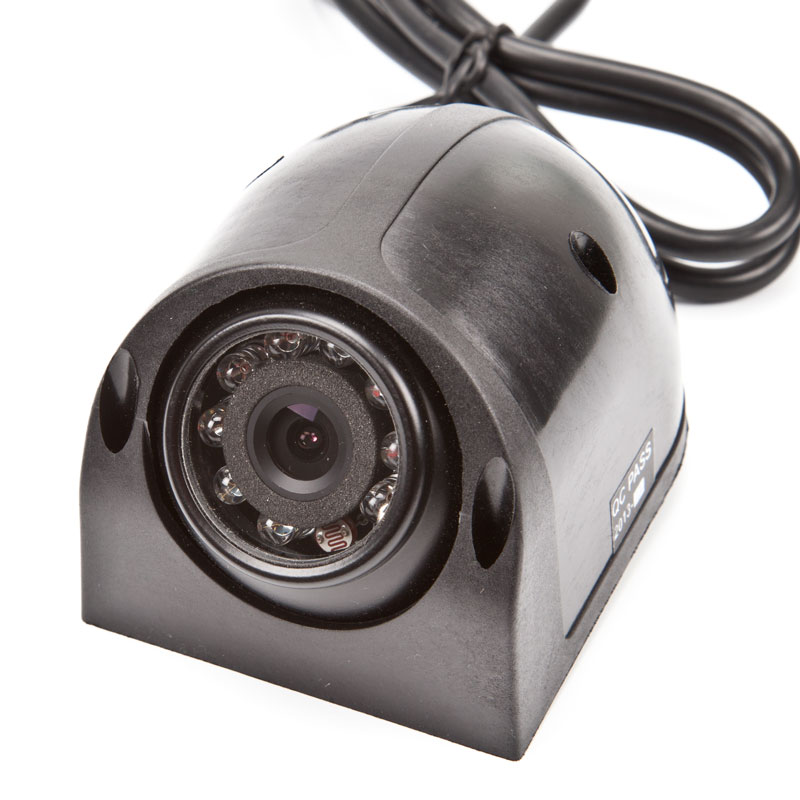

Safesight TOP-SS-5607R side mount camera

    TOP-SS-5607R Side Mount Camera specifications:
  • High Resolution Back Up Camera with infrared illumination
  • Reverse image for rear facing side mount view
  • Completely adjustable angle with six retaining screws per side
  • 1/3" CCD Image Sensor
  • NTSC video output
  • 120 degrees Wide Angle Camera - Blind Spot reduced
  • Minimum Illumination: 0Lux (LED On)
  • IR Infrared 9 LEDs for 16 foot Night Vision distance
  • Power Supply: DC 12V
  • Waterproof Rating: Ip67
  • High impact plastic housing
  • Square style casing
  • 4 Pin Connector - RCA Adapters are sold separately

    Specifications:
  • Effective Pixels: 510x492
  • 420 TV lines
  • Operating Temperature: -20 degrees ~ +70 degrees C (RH 95% Max)
  • Lens: F = 2.5mm/ 1.7mm
    Dimensions:
  • Dimensions: 3-1/4" (L) x 2-3/8" (H) x 2-1/8" (D)

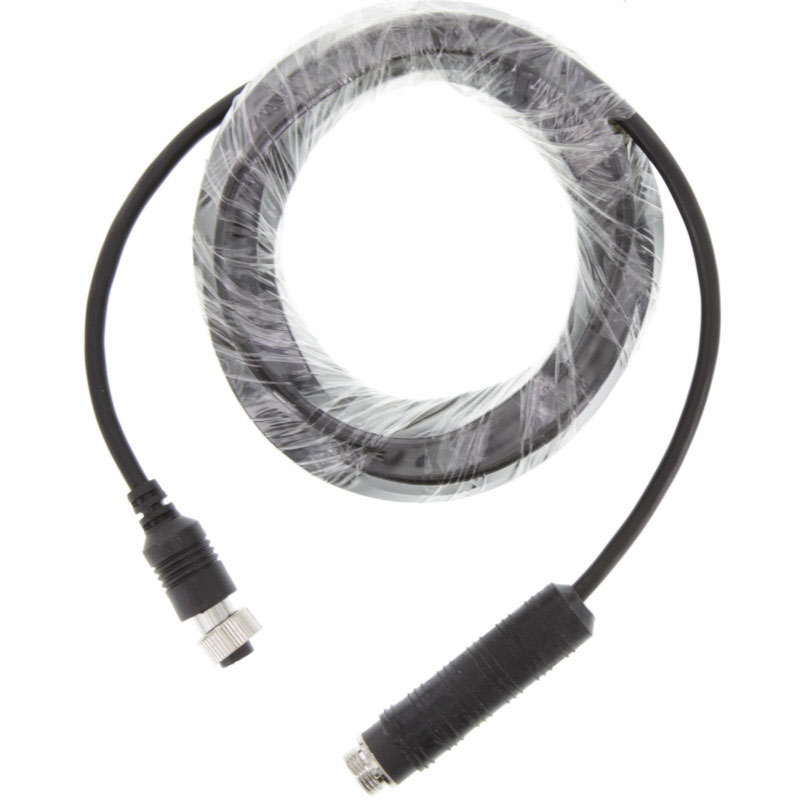

Safesight TOP-CBL15 15 foot camera cable

    TOP-CBL15 15 foot extension cable:
    • Waterproof 15 ft 4 pin screw connector back up camera extension cable
    • Rubber boots for connectors to prevent water intrusion
    • 1 - Cable included in package


    Safesight TOP-CBL30 30 foot camera cable

      TOP-CBL30 30 foot extension cable:
      • Waterproof 30 ft 4 pin screw connector back up camera extension cable
      • Rubber boots for connectors to prevent water intrusion
      • 2 - Cables included in package


      Safesight TOP-CBL60 60 foot camera cable

        TOP-CBL60 60 foot extension cable:
        • Waterproof 60 ft 4 pin screw connector back up camera extension cable
        • Rubber boots for connectors to prevent water intrusion
        • 1 - Cable included in package

Technical Specifications

Manufacturer Safesight
Part Number SS-CAM-PKG-1
Auto Dimming No
Camera Sensor type CCD
Back up camera type No
License Plate Camera Type No
Camera diameter No
Viewing Angle No
Wireless Transmission No
Waterproof ingress protection No
Reverse Image Selectable
Parking grid lines Yes
Infrared Illumination Yes
Built in Microphone Yes
Trigger wire No
Auto on/off No
Connector Type 4 Pin Connector
NTSC/PAL NTSC and PAL
Operation Voltage 12 - 15 volt
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color Black
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code No
