Boyo (Vision Tech) VTK350 Rear View Bullet Style Waterproof Keyhole Back Up Camera with 1/4 inch CMOS Lens and 120 degrees Wide Angle View

Boyo (Vision Tech) VTK350 Rear View Bullet Style Waterproof Keyhole Back Up Camera with 1/4 inch CMOS Lens and 120 degrees Wide Angle View

Boyo (Vision Tech) VTK350 Rear View Bullet Style Waterproof Keyhole Back Up Camera with 1/4 inch CMOS Lens and 120 degrees Wide Angle View

More Views

Item sku:49992
Boyo

Overall Rating 3 (Based on 1 reviews)

Would you recommend this to a friend?

Write a review

Boyo VTK350 Product Highlights

  • Flush Mount Camera
  • Cmos Lens
  • 120 Degree Wide Angle
  • Low Light Sensitive

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Overview

Unit includes: Connectors

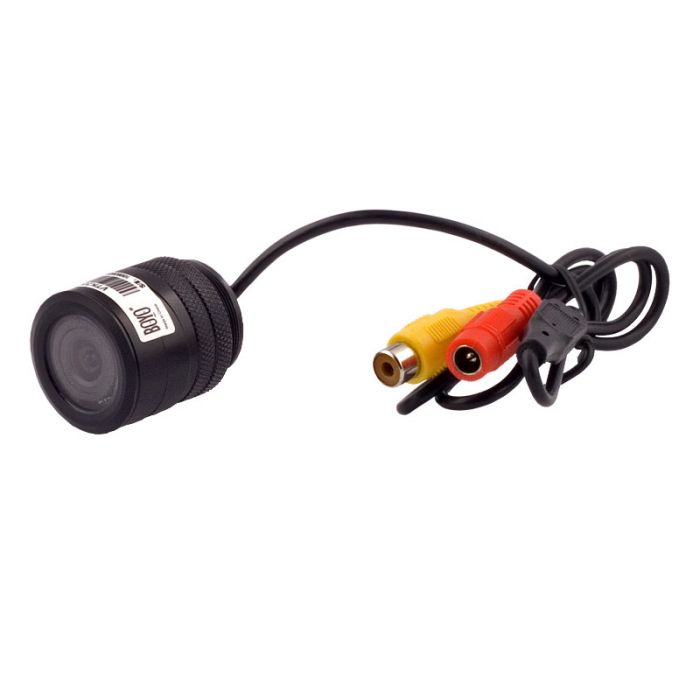

Boyo (Vision Tech) VTK350 Rear View Bullet Style Waterproof Keyhole Back Up Camera with 1/4 inch CMOS Lens and 120 degree Wide Angle View
  • Bullet style keyhole type
  • Weatherproof applicable for outdoor security or car rear view vision
  • 1/4 inch DSP Color CMOS
  • 380,2011, TVL Horizontal Resolution
  • Reverse Image
  • Waterproof IP67
  • 0.5 Lux (Daytime), 0.0 Lux (Nighttime)

  • Model: VTK350
  • Imager: 1/4" DSP Color CMOS
  • Effective Pixels: 656 x 492
  • Horizontal resolution: 380,2011, TV Lines
  • Viewing Angle: 120 degrees wide viewing angle
  • Min Illumination: 0.5 LUX
  • Video Output: RCA connector, 1.0 Vp-p, 75 ohm
  • Current consumption: 50mA, Max 300mA
  • Power Supply: DC12V +/- 10%
  • Operating Temp: -4 degrees F ~ 122 degrees F ( -20 degrees C ~ + 50 degrees C )
  • Storage Temp: -40 degrees F ~ 176 degrees F ( -40 degrees C ~ + 80,2011, degrees C )
  • Humidity: Within 90% RH

  • Product Manual

Technical Specifications

Manufacturer Boyo
Part Number VTK350
Auto Dimming No
Camera Sensor type CMOS
Back up camera type Flush Mount Key hole camera
License Plate Camera Type No
Camera diameter No
Viewing Angle 120 degrees
Wireless Transmission No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination No
Built in Microphone No
Trigger wire No
Auto on/off No
Connector Type RCA Cable
NTSC/PAL No
Operation Voltage No
Battery Powered No
Cigarette Lighter Cord Included No
Color Black
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code No

Customer Reviews

Great Amplifier
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
This camera has a very wide angle 2.8 mm lens (greater than 120 degrees of field of view as advertised) which leaves the images 15 feet behind the vehicle very tiny and fish-eyed when displayed on a small mirror monitor. I would think a camera with a 4mm lens would be a better choice if one wants to see how close an object is behind the vehicle before you back over it. The higher the lens mm number, the narrower the field of view (Posted on 1/23/2012)
