DISCONTINUED - Hifonics ZRX2400.1D Zeus Series 2400 Watts Class D Mono Block Amplifier for Vehicles

DISCONTINUED - Hifonics ZRX2400.1D Zeus Series 2400 Watts Class D Mono Block Amplifier for Vehicles

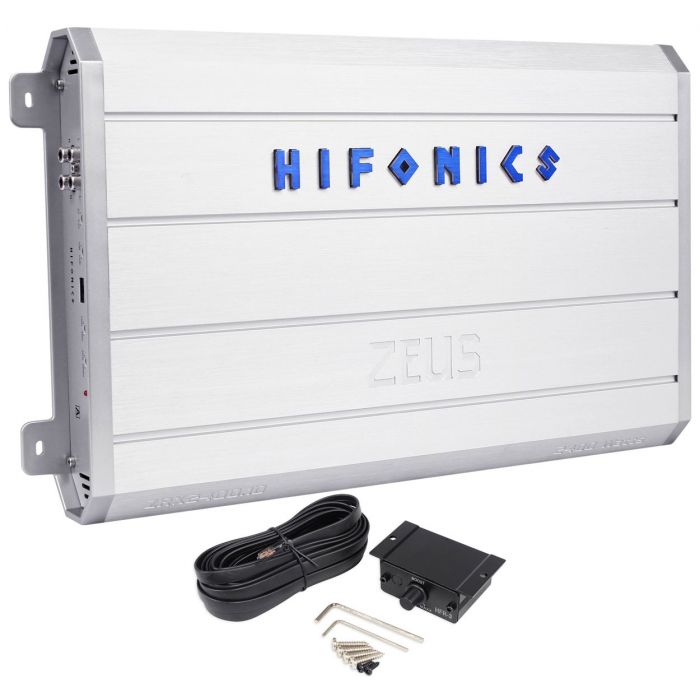

Hifonics ZRX2400.1D Zeus Series 2400 Watts Class D Mono Block Amplifier

More Views

Hifonics
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Hifonics ZRX2400.1D Product Highlights

  • Enhance the sound quality by increasing the signal power efficiently
  • Designed with SPC (Simpatico coil) and ultra-Fi Pulse width modulated MOSFET power supply
  • LED indicators: blue for power and red for protect
  • Bass boosts from 0 to +10dB at 45 Hz
  • Equipped with soft start sound function that helps reduce the load and makes start-up easier
  • Integrated heavy-duty aluminum alloy heat sink for heat dissipation
  • Requires 0 gauge power and ground wiring for installation
  • Provides four way protection circuitry, which includes thermal, overload, DC and speaker short protection
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
  • Lifetime Technical Support
  • Premier Service - Call us! 800-363-0096
  • 30-Day Return Policy - See exceptions
  • Fast Free Shipping - $99+

Overview

Unit includes: Class D Mono Block Zeus Series Car Amplifier featuring 2400 Watts power

Hifonics ZRX2400.1D Zeus Series 2400 Watts Class D Mono Block Amplifier for Vehicles features:
  • Allows the user to enhance the sound quality by increasing the signal power efficiently
  • Designed with SPC (Simpatico coil) and ultra-Fi Pulse width modulated MOSFET power supply
  • LED indicators: blue for power and red for protection
  • Includes wired HFR-3 remote bass level control
  • Bass boosts from 0 to +10dB at 45 Hz
  • Equipped with soft start sound function that helps reduce the load and makes start-up easier
  • Maximum Power output is 2400 watts
  • Mono channel operation
  • Provides four way protection circuitry, which includes thermal, overload, DC and speaker short protection
  • Integrated heavy-duty aluminum alloy vented heat sink for maximum heat dissipation
  • Silver nickel-plated RCA level inputs
  • Silver nickel-plated screw terminals
  • Low Level RCA Inputs and Outputs
  • Requires 0 gauge power and ground wiring for installation
  • Input sensitivity is 200 mV to 6V (variable level)
  • Subsonic filter: 15-35 Hz
  • Variable low-pass filter: 30-250 Hz, 24 dB/ octave
  • Damping factor is greater than 200 and frequency response is 15-250 Hz
  • 2400 Watts Class D Mono Block Zeus Series Amplifier for Vehicles

Maximum Power Rating:
  • 4 ohms: 650 watts x 1 channel
  • 2 ohms: 1200 watts x 1 channel
  • 1 ohm: 2400 watts x 1 channel


Technical Specifications

Manufacturer Hifonics
Part Number ZRX2400.1D
Amplifier Topology Class Class D
Number of Channels 1 Channel
Total Peak Power Output 2400 watts
Total RMS Power Output No
Amplifier Bridging No
Minimum Impedance in Bridged Mode No
Minimum Impedance in Un-Bridged Mode 1 ohm
Strappable Amplifier N/A
Strappable Power Output N/A
RCA Pre-amp Audio inputs N/A
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage No
Speaker level inputs No
Gain Control Yes
Bass Knob / Remote Gain Yes
Built in Crossover Low-pass
Cooling Fan No
Color No
Warranty 1 Year
Recommended Power Wire Gauge N/A
UPC Code 806576221739
